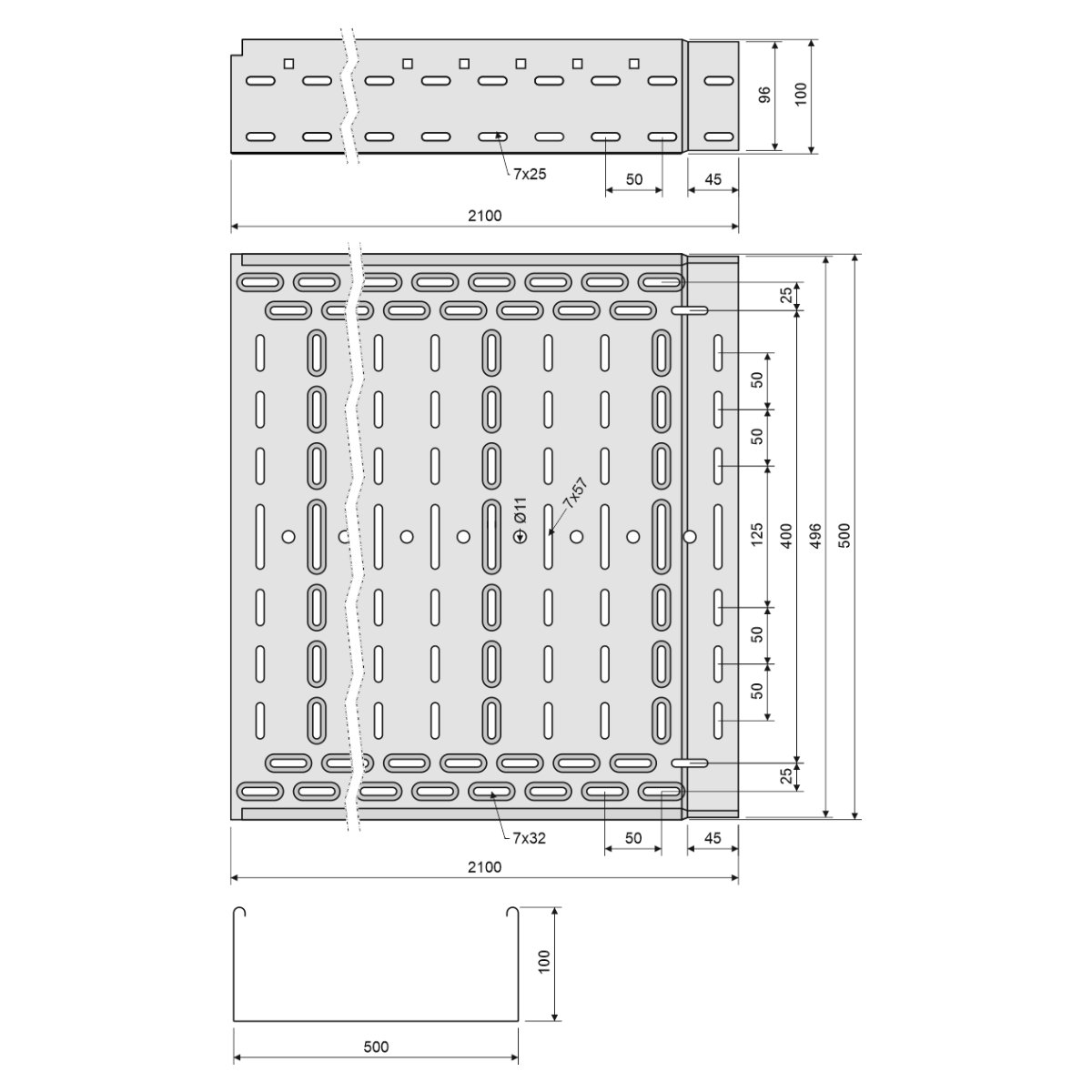

illustrative picture
To download 3D models, please login or create an account and request access.
NKZI_EN
| Código EAN | 8595057695733 |
| Elcodigo aduanero | 73089059 |
| Peso | 7,1780 kg/m |
| Tratamiento superficial | Hot Dip Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Ancho | 500 mm |
| Altura | 100 mm |
| Longitud | 2098 mm |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 1,25 mm |
| Cantidad de tornillos para la conexión | 6 |
| Carga máxima para resistencia al fuego | 10 - 20 kg |
For securing the connection of the trays with the integrated coupling there are used the clamps made from spring steel KSV or the bolts NSM 6X10.
Note for system with maintained functionality in fire:
For securing the connection of the trays with the integrated coupling there are used the bolts NSM 6X10.
You find more information in the catalogue Systems with maintained functionality in fire.
