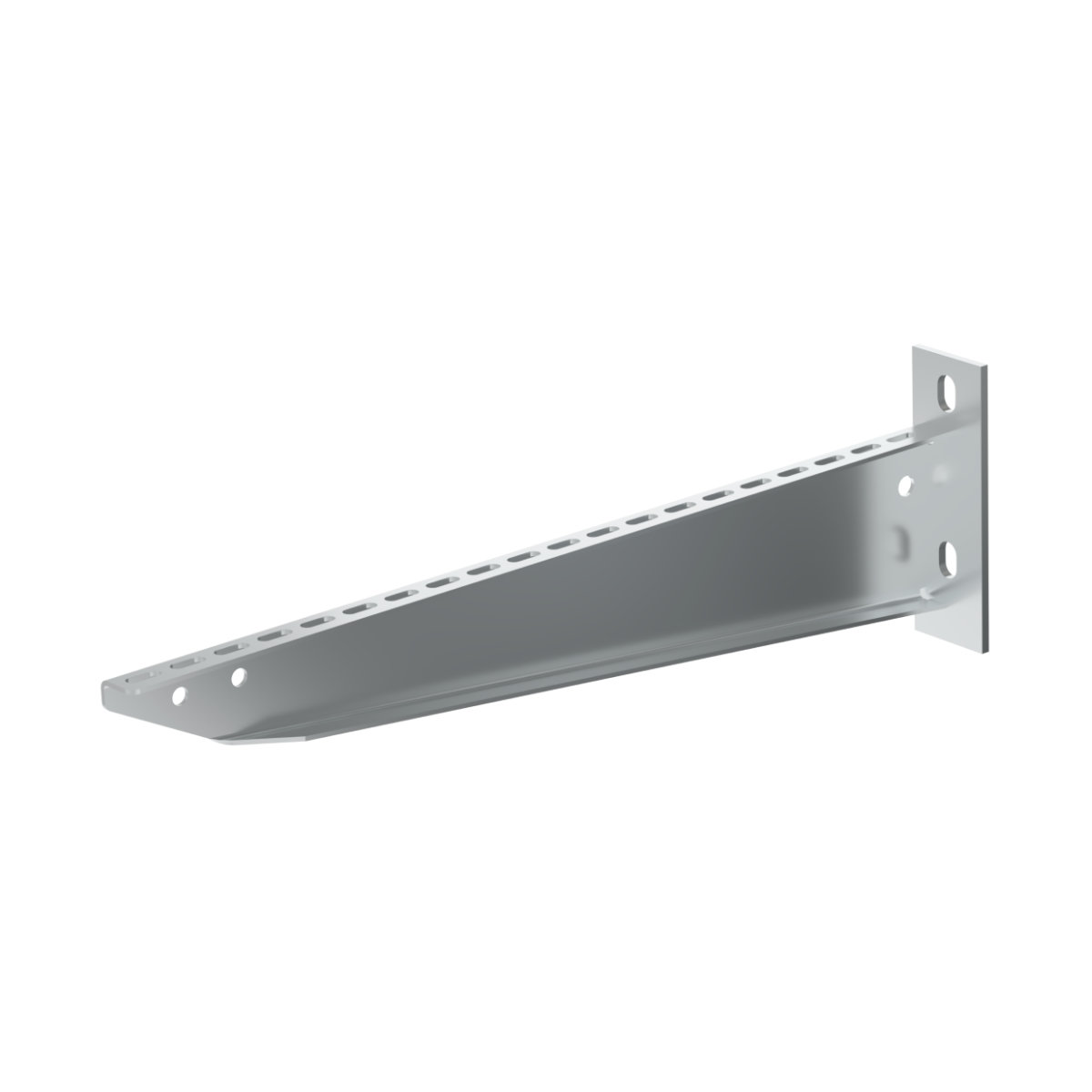

illustrative picture
To download 3D models, please login or create an account and request access.
DT_EN
| Código EAN | 8595057628533 |
| Elcodigo aduanero | 83024190 |
| Peso | 1,3000 kg/pcs |
| Tratamiento superficial | Hot Dip Galvanized |
| Carga máxima | 350 kg |
| Dimensión A | 520 mm |
| Dimensión B | 155 mm |
| Dimensión C | 90 mm |
| Para la anchura de la bandeja | 500 mm |
| Para la altura de la bandeja | 35 - 110 mm |
The holder is designed to be mounted on a wall or a ceiling profile. For assembly to the ceiling profile SPL and SPS there are used the sliding nuts PM 41 M 10 together with the bolts S 10X20 (2 pcs). Fix to the celling profile SPLN, SPSN or SPU using bolts S 10X20, nuts M 10 and washer PD 10. Cable tray attaching to the bracket DT is carried out by bolts NSM 6X10.
