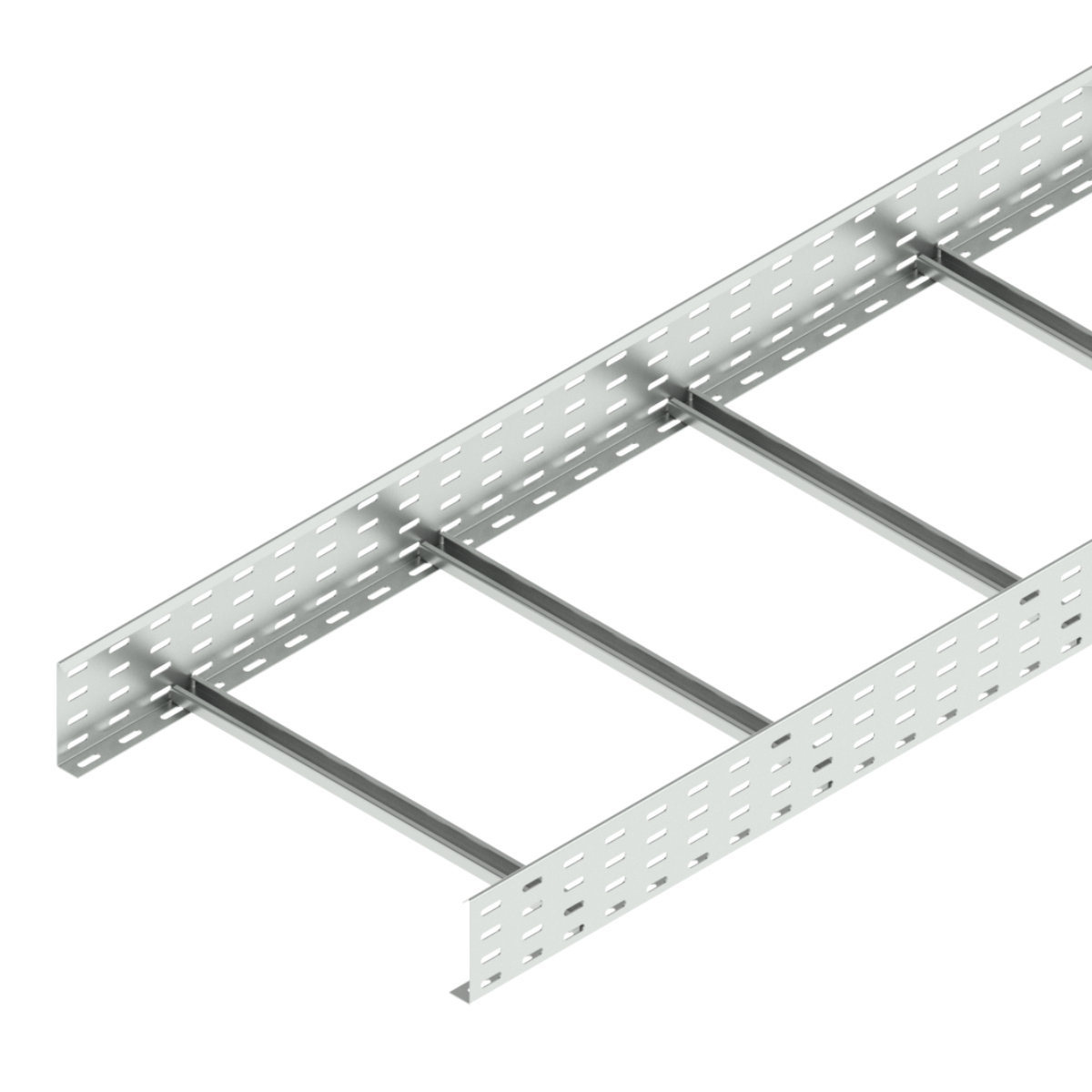

illustrative picture
To download 3D models, please login or create an account and request access.
KL110_EN
| Código EAN | 8595057644403 |
| Elcodigo aduanero | 73089059 |
| Peso | 4,0000 kg/m |
| Tratamiento superficial | Pre-Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Ancho | 500 mm |
| Altura | 110 mm |
| Longitud | 3000 mm |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 1,2 - 1,5 mm |
| Cantidad de tornillos para la conexión | 8 |
| Distancia de la partición | 300 mm |
The joining of the ladders is performed by using the couplings S 110X200 and min. 8 pcs of bolts NSM 6X10. The side walls are L-profiles with return flange. The perforated C-profile rungs are placed in the side walls by extrusion with a spacing of 300 mm, with open side of the profile facing up.
