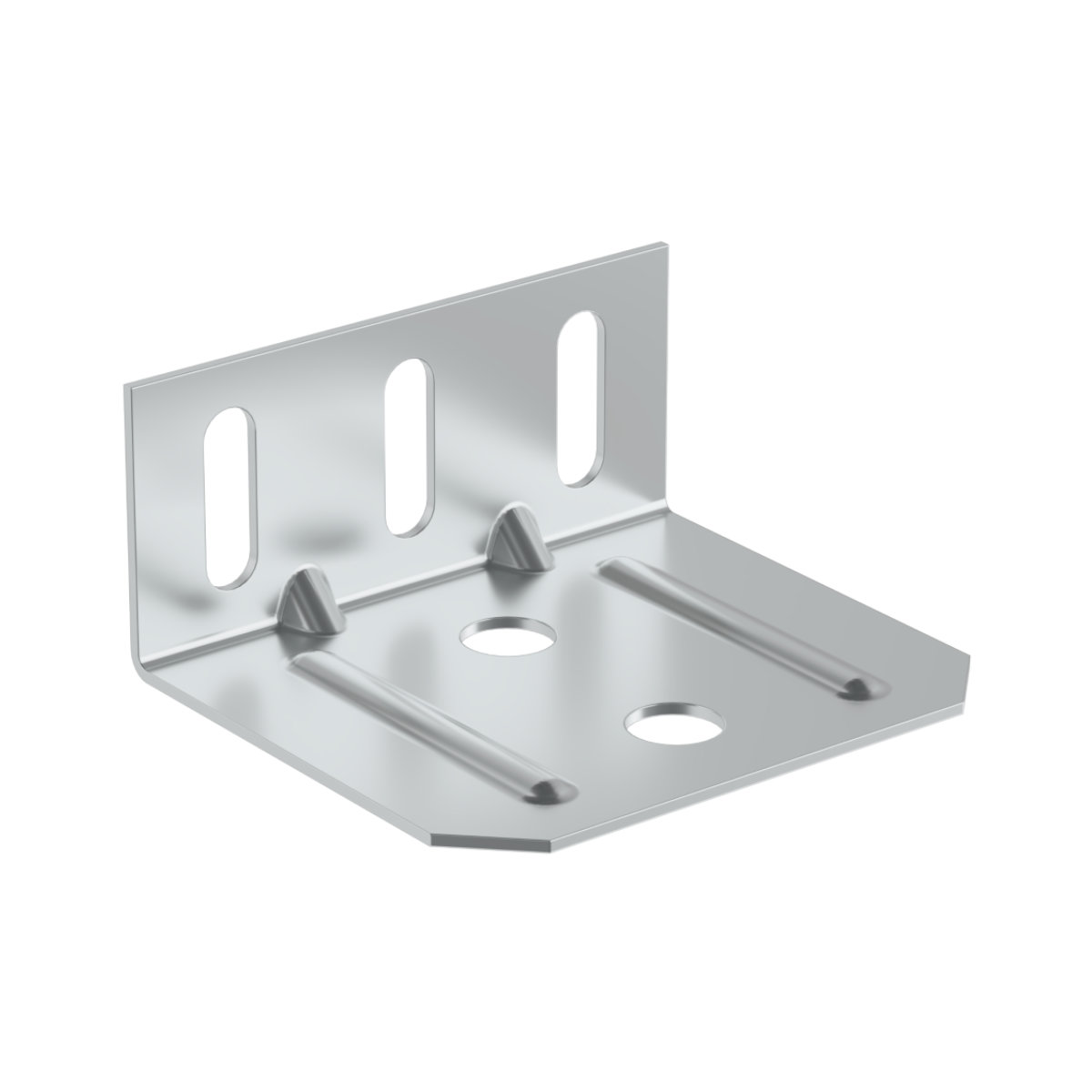

illustrative picture
To download 3D models, please login or create an account and request access.
KLSU_EN
| Código EAN | 8595568908681 |
| Elcodigo aduanero | 72169180 |
| Peso | 0,0740 kg/pcs |
| Tratamiento superficial | Pre-Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 1,5 mm |
| Cantidad de tornillos para la conexión | 2 |
Use screws NSM 6X10 for installation to cable ladder. The 8 mm anchor is used for mounting on the wall.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
