illustrative picture
NKP_EN
| Código EAN | 8595057689480 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,0060 kg/pcs |
| Material | PS |
| Dimensión A | 16 mm |
| Dimensión B | 20 mm |
| Dimensión C | 31 mm |
| Dimensión D | 6 mm |
| Dimensión E | 0,5 - 5 mm |

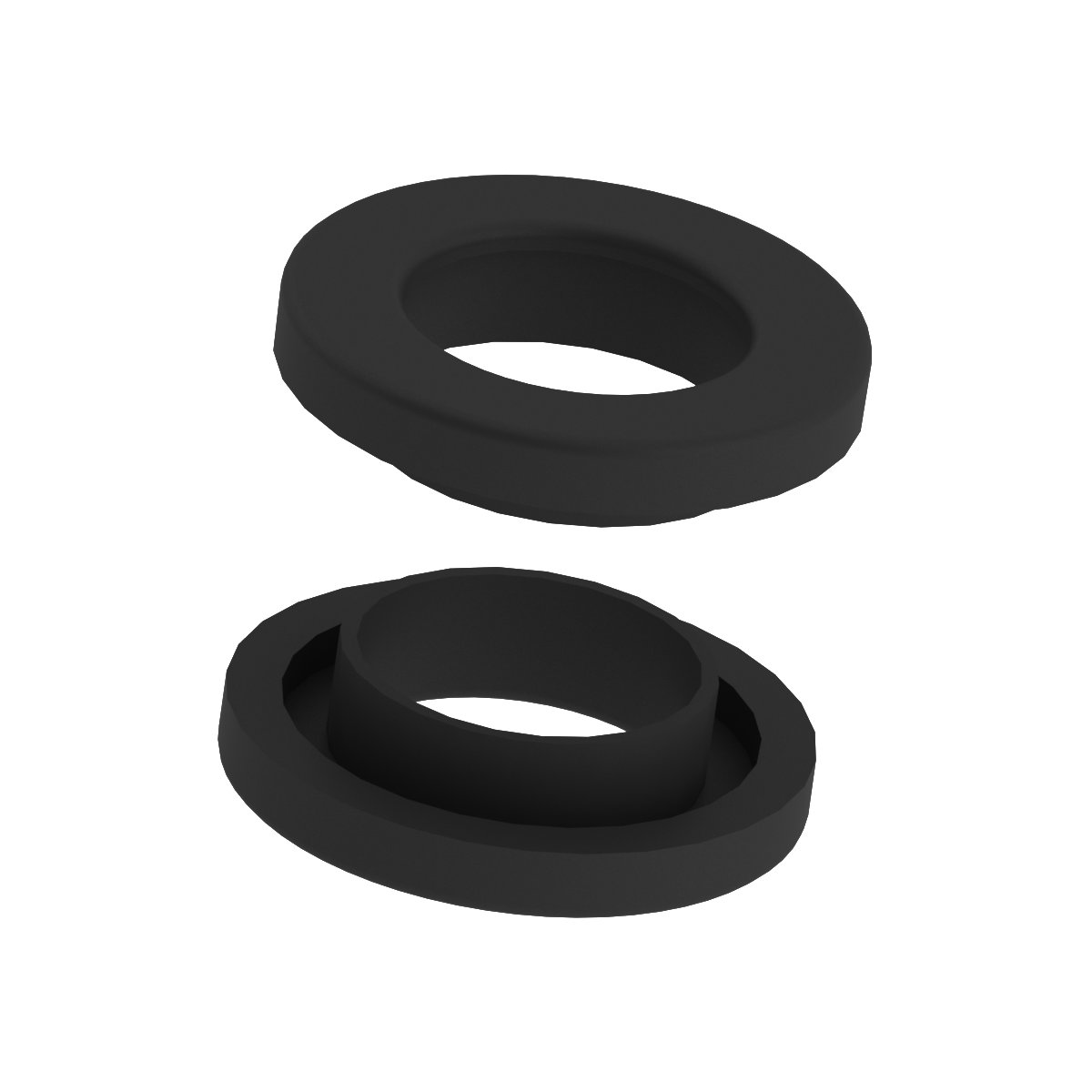

Bushings serve for the safe passing of the cables through the sheet metal. One part of the bushing is inserted from one side into the created opening in the bottom or the sidewall of the tray, the second part is inserted from the second side and gentle pressure is used to press both the parts together and this connects them firmly. Bushings can be used on sheet metal 0.5 - 5 mm thick.
