NIXKZN_EN
| Código EAN | 8595057669451 |
| Elcodigo aduanero | 73089059 |
| Peso | 1,1300 kg/m |
| Tratamiento superficial | Stainless steel AISI 304 |
| Resistencia térmica | -50 - 150 °C |

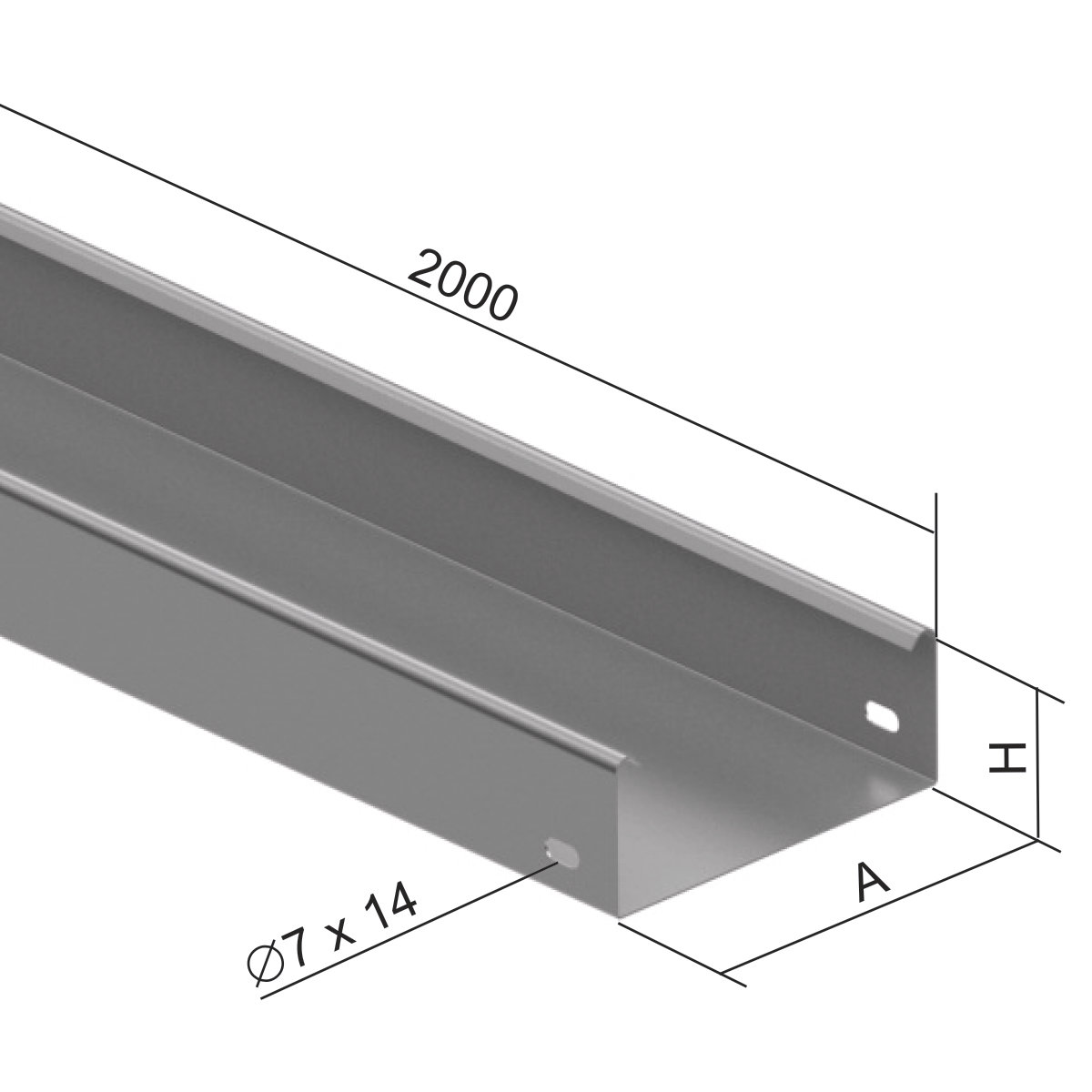

| Ancho | 62 mm |
| Altura | 50 mm |
| Longitud | 2000 mm |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 0,8 mm |
| Cantidad de tornillos para la conexión | 4 |
The joining of the trays is performed by using of the couplings NIXS 100 and by the bolts NIXSM 6X10. Tray is connected directly to accessories (with no connectors – the tray is inserted into the accessory), using NIXSM 6X10 screws.
