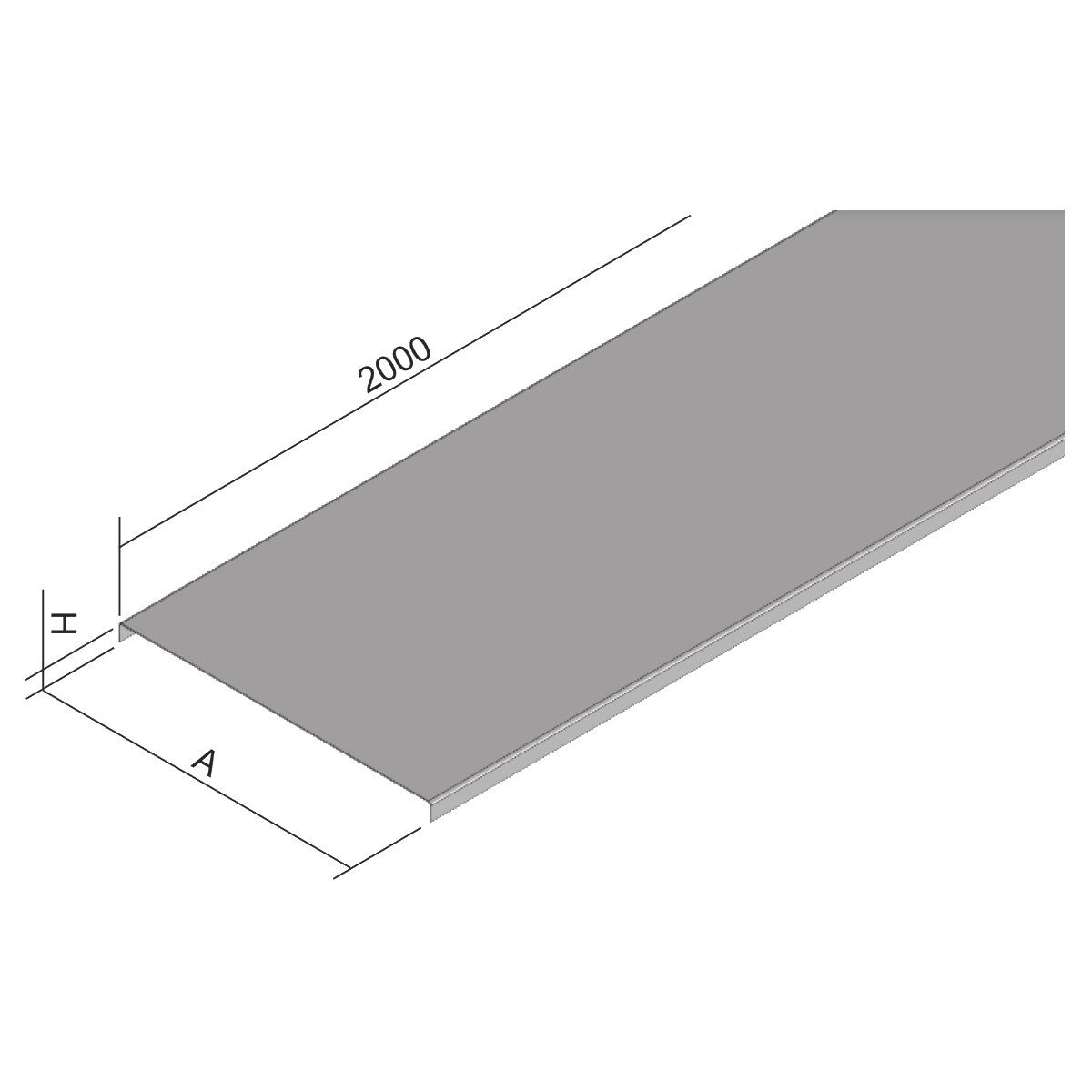

illustrative picture
To download 3D models, please login or create an account and request access.
V_EN
| Código EAN | 8595057657977 |
| Elcodigo aduanero | 72169180 |
| Peso | 4,8000 kg/m |
| Tratamiento superficial | Hot Dip Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Ancho | 500 mm |
| Altura | 14 mm |
| Longitud | 2000 mm |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 1 mm |
The standard length of the cable tray cover is 2 m. Stated sheet metal thickness is delivered as standard. Cover with thicker sheet metal can be delivered without prior notice. The fixing of the cover to the tray is done using the cover fixture VU (2 pcs per meter).
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
