Código EAN | 8595057650558 |
Elcodigo aduanero | 39259080 |
Peso | 0,0310 kg/pcs |
Material | PVC |
Material sin plomo | yes |
Autoextinguible | 30 s |
Voltaje nominal | <= 400 V |
Corriente nominal | <= 16 A |
Resistencia térmica | -5 - 60 °C |
Ensayo de hilo incandescente | 850 °C |
Medio | including joints. flap 81 |

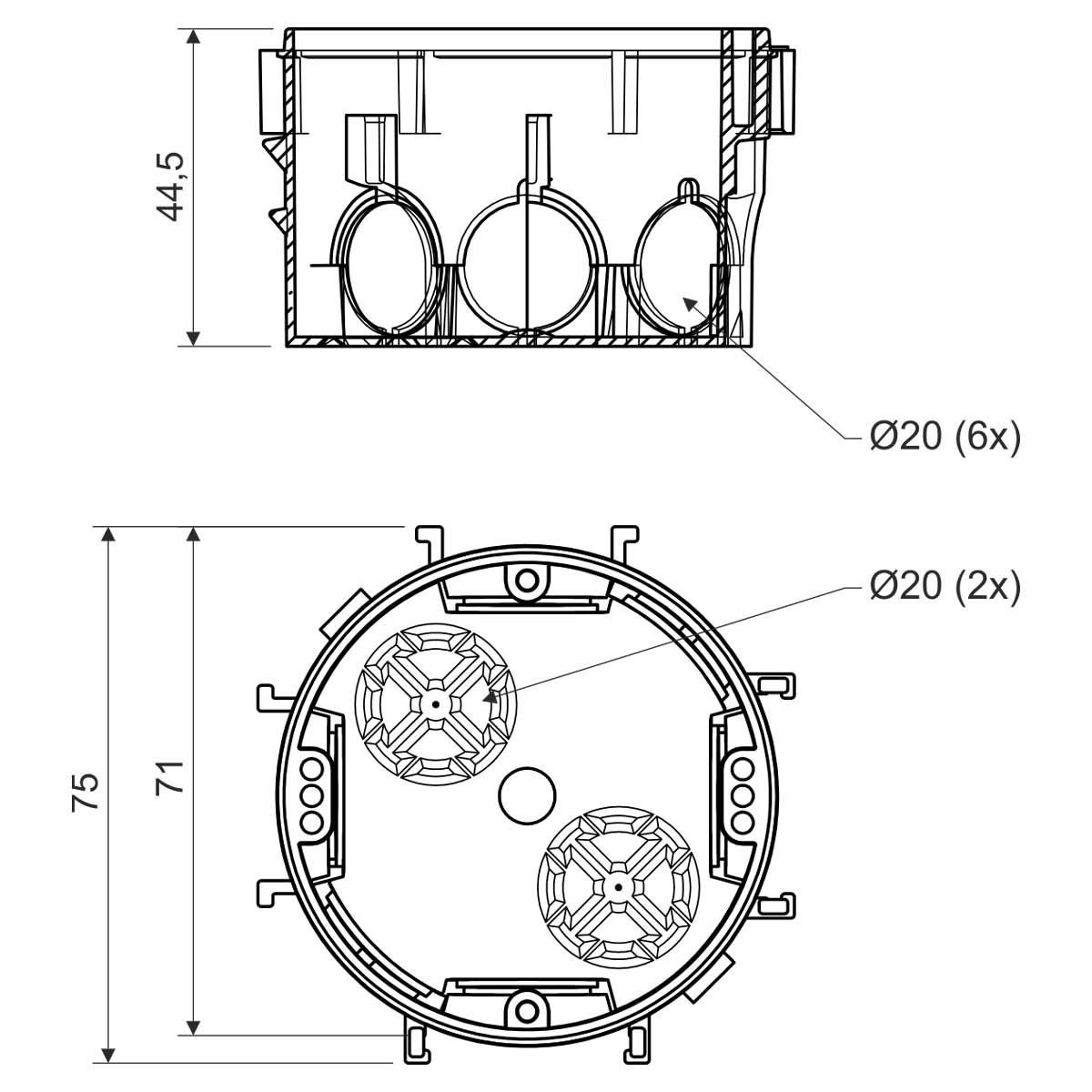

Profundidad | 45 mm |
Clase de reacción al fuego | A1 - D |
Distancia al unir dos cajas | 71 mm |
Permite el montaje de base de enchufe de dos elementos | yes |
Corresponde a las normas | ČSN EN 60 670-1 |
La descripción del embalaje cartons freely in the cardboard, tool screws not mounted on the boxes |
Possibility to connect up to 5 boxes vertically and horizontally. Suitable for 2x double frame. When using the DR18 spacers, boxes are suitable for devices with larger widths, such as Neo.
