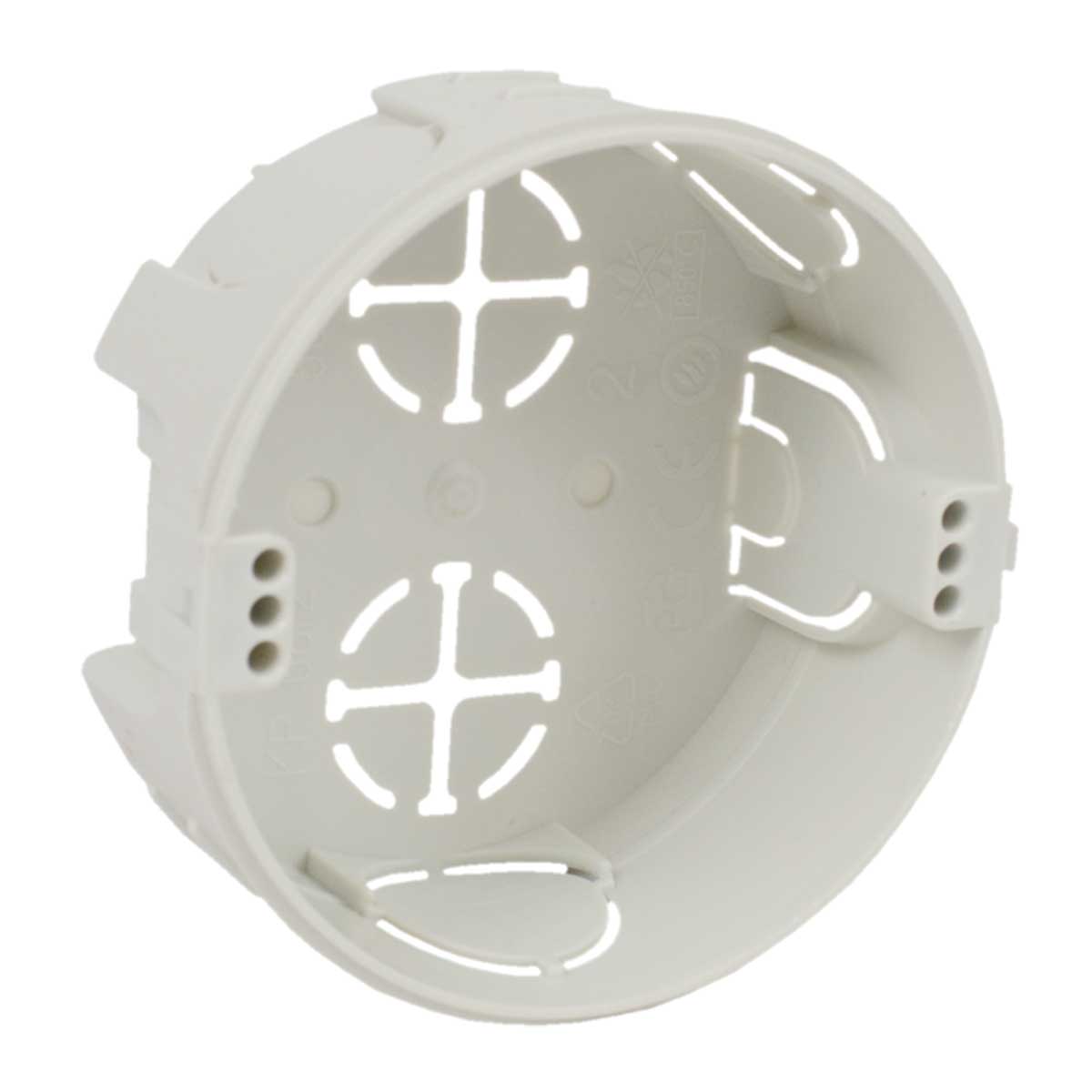

illustrative picture
To download 3D models, please login or create an account and request access.
KP68_2_EN
| Código EAN | 8595057600089 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,0203 kg/pcs |
| Material | PVC |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Voltaje nominal | <= 400 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -5 - 60 °C |
| Ensayo de hilo incandescente | 850 °C |
| Medio | 73 mm |
| Profundidad | 30 mm |
| Diámetro de orificio fresado (perforado) | 80 mm |
| Clase de reacción al fuego | A1 - D |
| Distancia al unir dos cajas | 71 mm |
| Permite el montaje de base de enchufe de dos elementos | yes |
| Corresponde a las normas | ČSN EN 60 670-1 |
| La descripción del embalaje cartons freely in the cardboard, tool screws not mounted on the boxes | |
Possibility to join into and continuous series with and spacing of 71 mm. Connection of up to three boxes in and row is recommended. Boxes can be joined with boxes KU 68-1901, KP 68 and KPR 68. Allows the installation of wiring in thin partitions.
