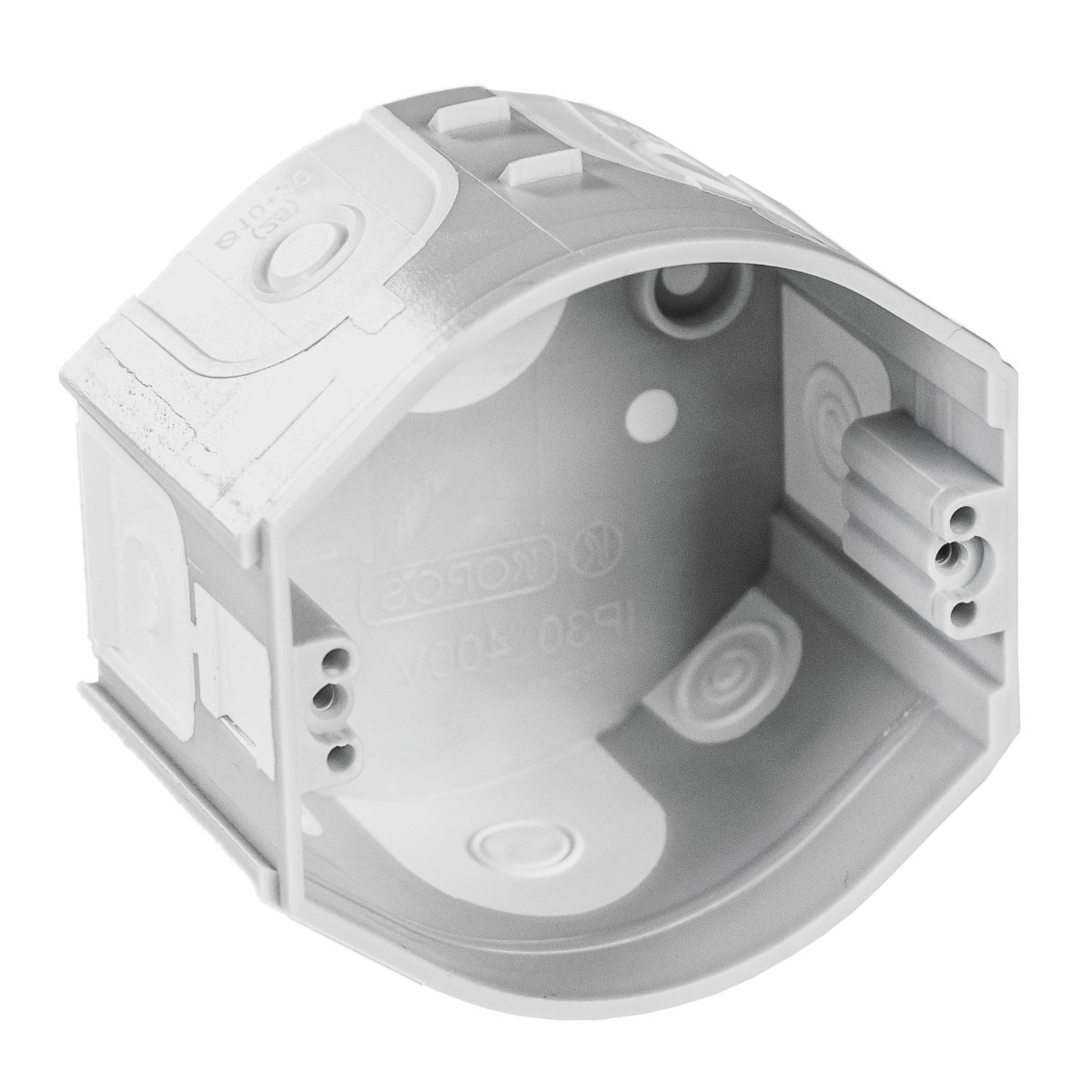

illustrative picture
To download 3D models, please login or create an account and request access.
KP68D_EN
| Código EAN | 8595568932327 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,0360 kg/pcs |
| Material | PVC |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Voltaje nominal | <= 400 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -5 - 60 °C |
| Ensayo de hilo incandescente | 850 °C |

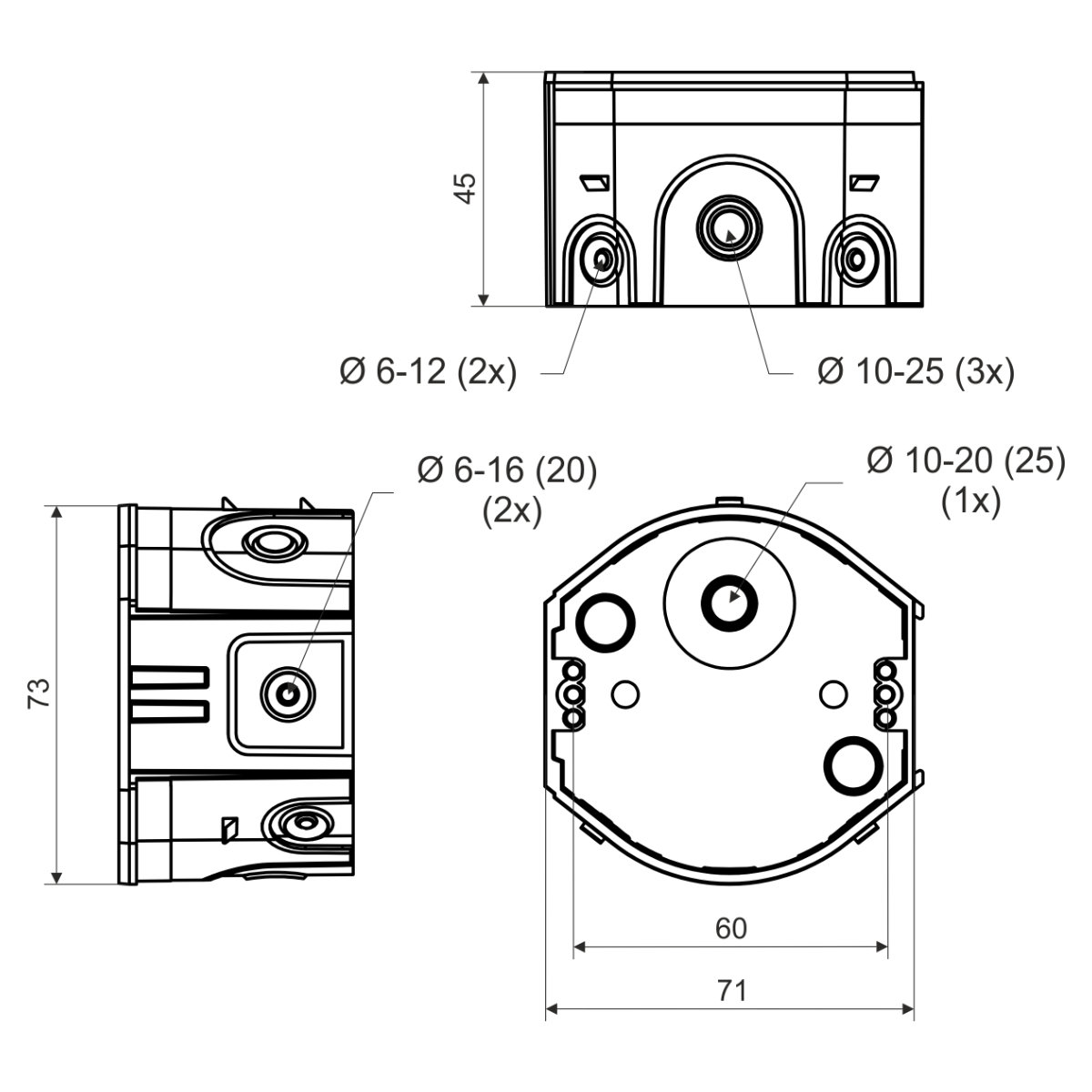

| Medio | 73 mm |
| Profundidad | 45 mm |
| Diámetro de orificio fresado (perforado) | 81 mm |
| Clase de reacción al fuego | A1 - F |
| Distancia al unir dos cajas | 71 mm |
| Permite el montaje de base de enchufe de dos elementos | yes |
| Clase de protección | IP 30 |
| Corresponde a las normas | ČSN EN 60 670-1 |
| La descripción del embalaje boxes loosely inserted into the carton, instrument screws included | |
Possibility of a fixed connection in a continuous row with a spacing of 71 mm. Boxes can be connected to KPR 68/D. Inlet openings made of flexible material. Install the cable or pipe by pulling out the pre-molded inlet on the flexible membranes and inserting the cable or pipe into the resulting hole. Empermeable airtightness of the penetration even when the cable or pipe is inserted. Suitable for low-energy or passive houses. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection. Protected by a European industrial and utility model.
