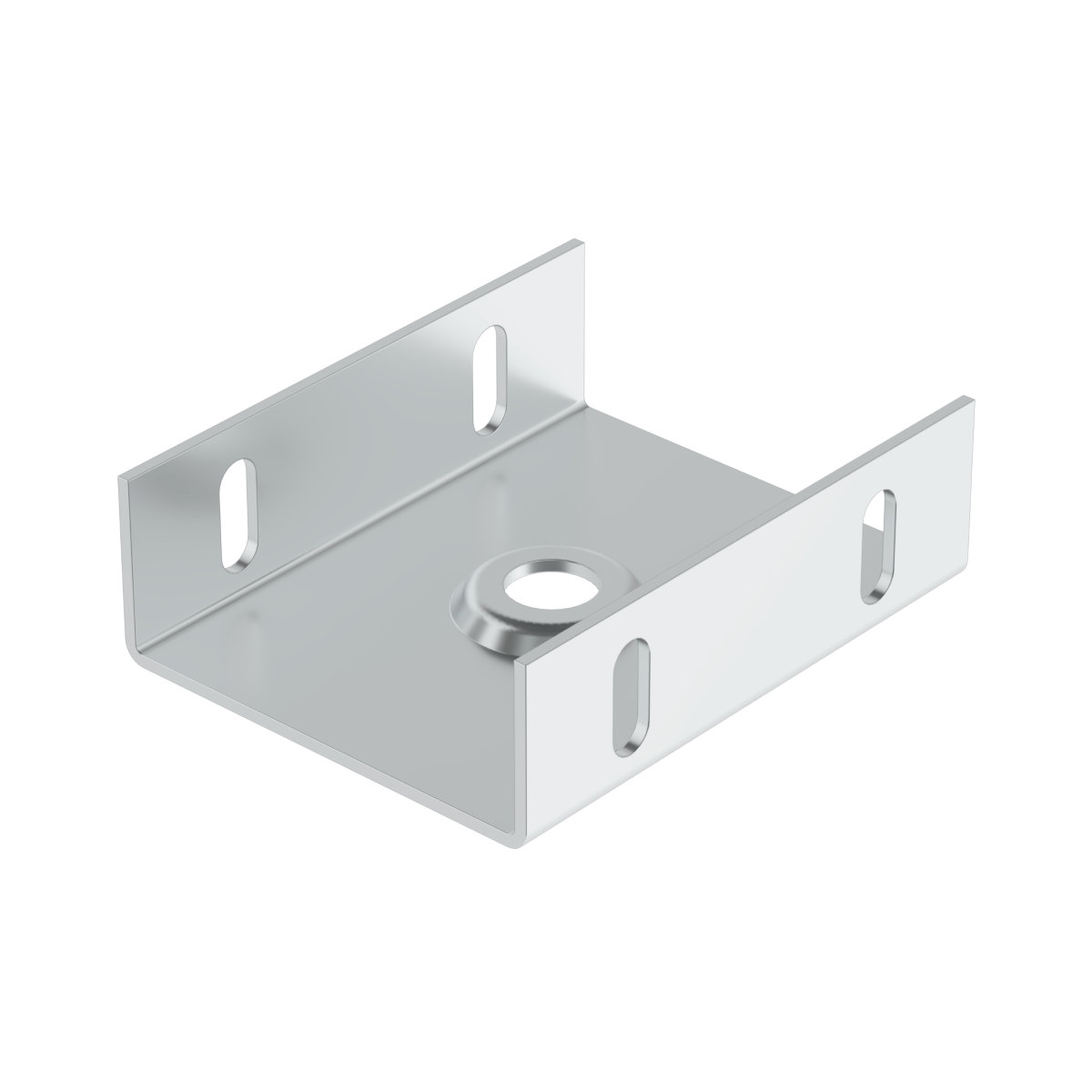

illustrative picture
To download 3D models, please login or create an account and request access.
ZVNI_EN
| Código EAN | 8595568927446 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,1620 kg/pcs |
| Tratamiento superficial | Hot Dip Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 2 mm |
| Cantidad de tornillos para la conexión | 4 |
| Carga máxima | 90 kg |
| Dimensión A | 58 mm |
| Para la anchura de la bandeja | 62 mm |
| Para la altura de la bandeja | 50 mm |
It is mounted using the threaded rod ZT 8 or ZT 10 and nut MN. The dimension of the nut is chosen by the diameter of the threaded rod. The nuts MN are not part of the hanger. The inner hinge is inserted into the tray before connecting it to another tray.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
