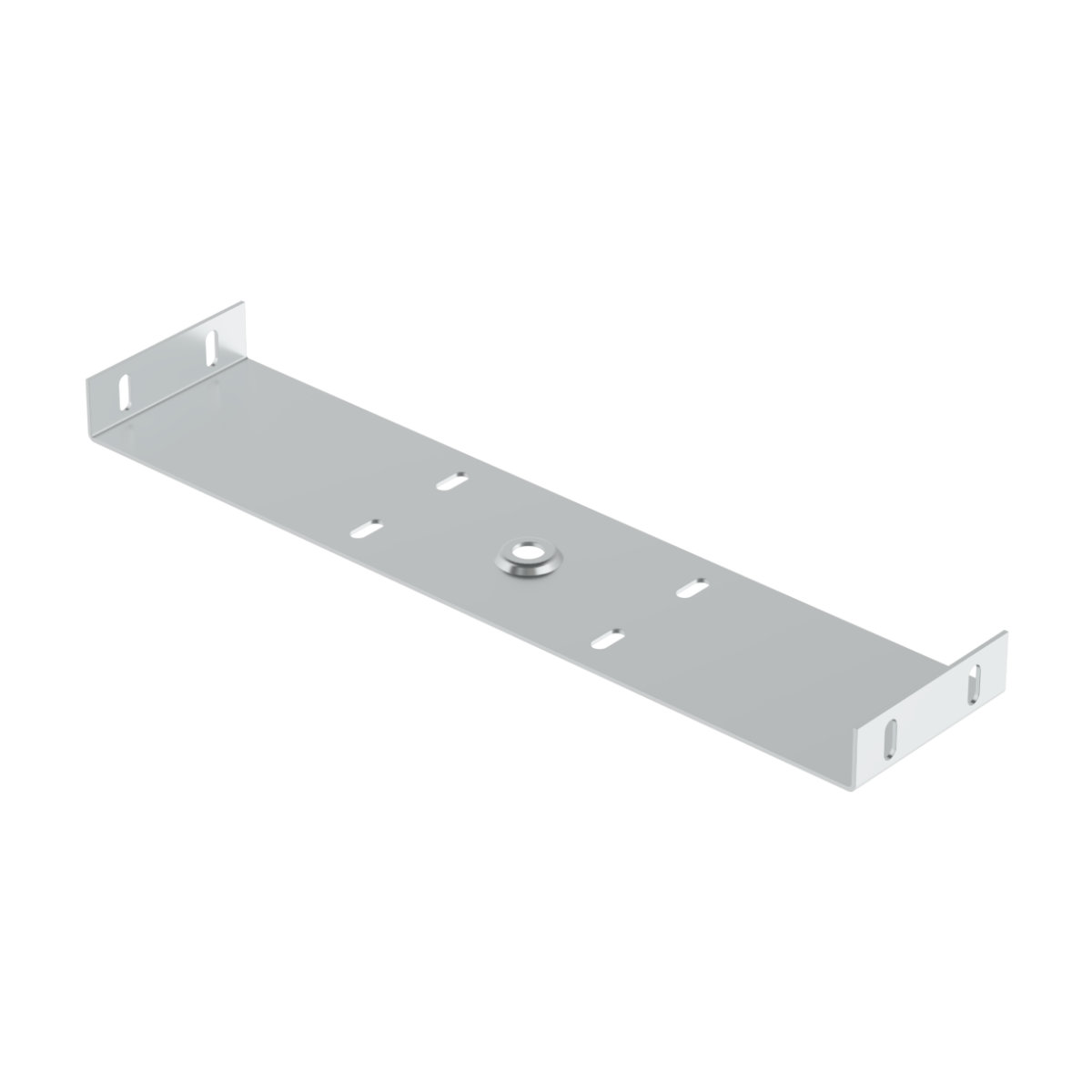

illustrative picture
To download 3D models, please login or create an account and request access.
ZVNI_EN
| Código EAN | 8595568925411 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,7230 kg/unidad |
| Tratamiento superficial | Hot Dip Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 2 mm |
| Cantidad de tornillos para la conexión | 4 - 8 |
| Carga máxima | 90 kg |
| Dimensión A | 396 mm |
| Para la anchura de la bandeja | 400 mm |
| Para la altura de la bandeja | 35 - 60 mm |
It is mounted using the threaded rod ZT 8 or ZT 10 and nut MN. The dimension of the nut is chosen by the diameter of the threaded rod. The nuts MN are not part of the hanger. The inner hinge is inserted into the tray before connecting it to another tray.
