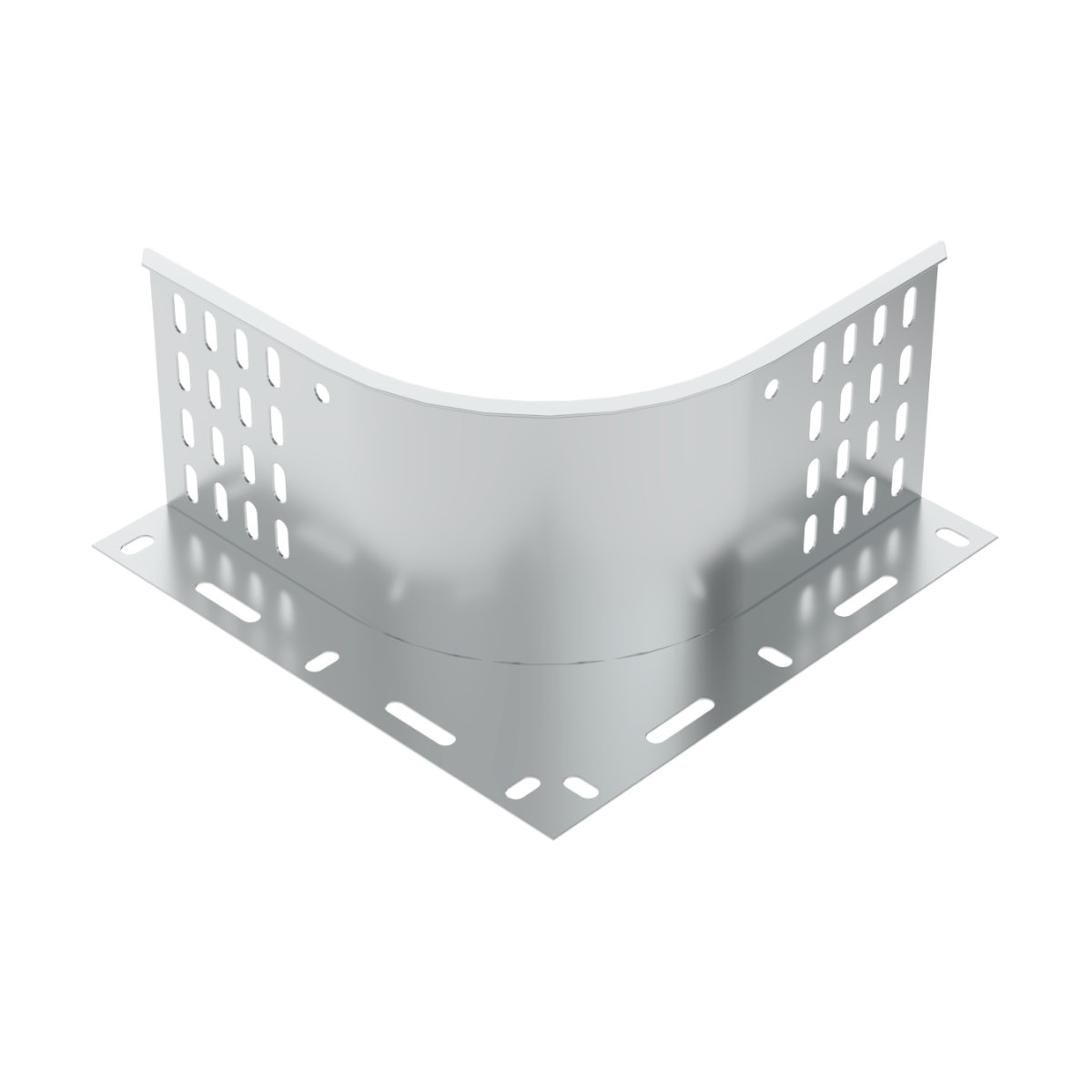

illustrative picture
To download 3D models, please login or create an account and request access.
SU_EN
| Código EAN | 8595057633391 |
| Elcodigo aduanero | 73089059 |
| Peso | 0,4350 kg/pcs |
| Tratamiento superficial | Pre-Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 1 mm |
| Cantidad de tornillos para la conexión | 8 |
| Dimensión H | 115 mm |
| Para la altura de la bandeja | 110 mm |
It is used for making an additional branching use an unequal T-piece or cross. Advantage of this using is availability to choose bending tray with any width. The reduction piece is delivered in singles, must be used 2 pieces for installation. The connection is performed using the bolts NSM 6X10. The cover of a horizontal VOH branch can be used to cover routes with a reduction piece.
