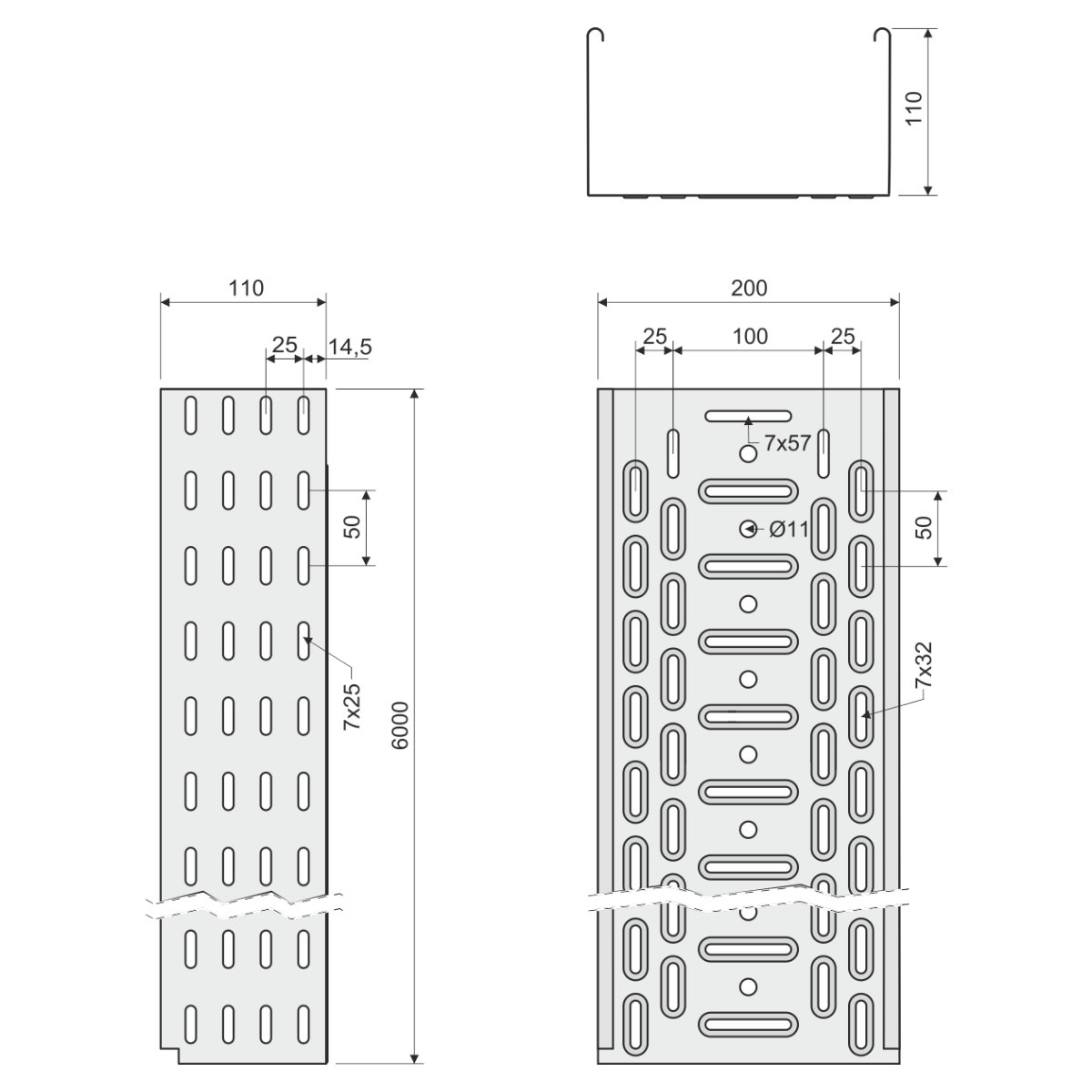

illustrative picture
KZ110_S6_EN
| Código EAN | 8595057636194 |
| Elcodigo aduanero | 72169180 |
| Peso | 4,8000 kg/m |
| Tratamiento superficial | Pre-Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Ancho | 200 mm |
| Altura | 110 mm |
| Longitud | 6000 mm |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 1,5 mm |
| Cantidad de tornillos para la conexión | 34 |
The standard length of the cable tray is 6 m. The trays are connected by 2 pcs of KDS jointing plate and 17 pcs of NSM 6X10 bolts. Jointing points can not be placed over the support. The cable tray is suitable for creating a cable route with a support spacing of up to 6 meters.
