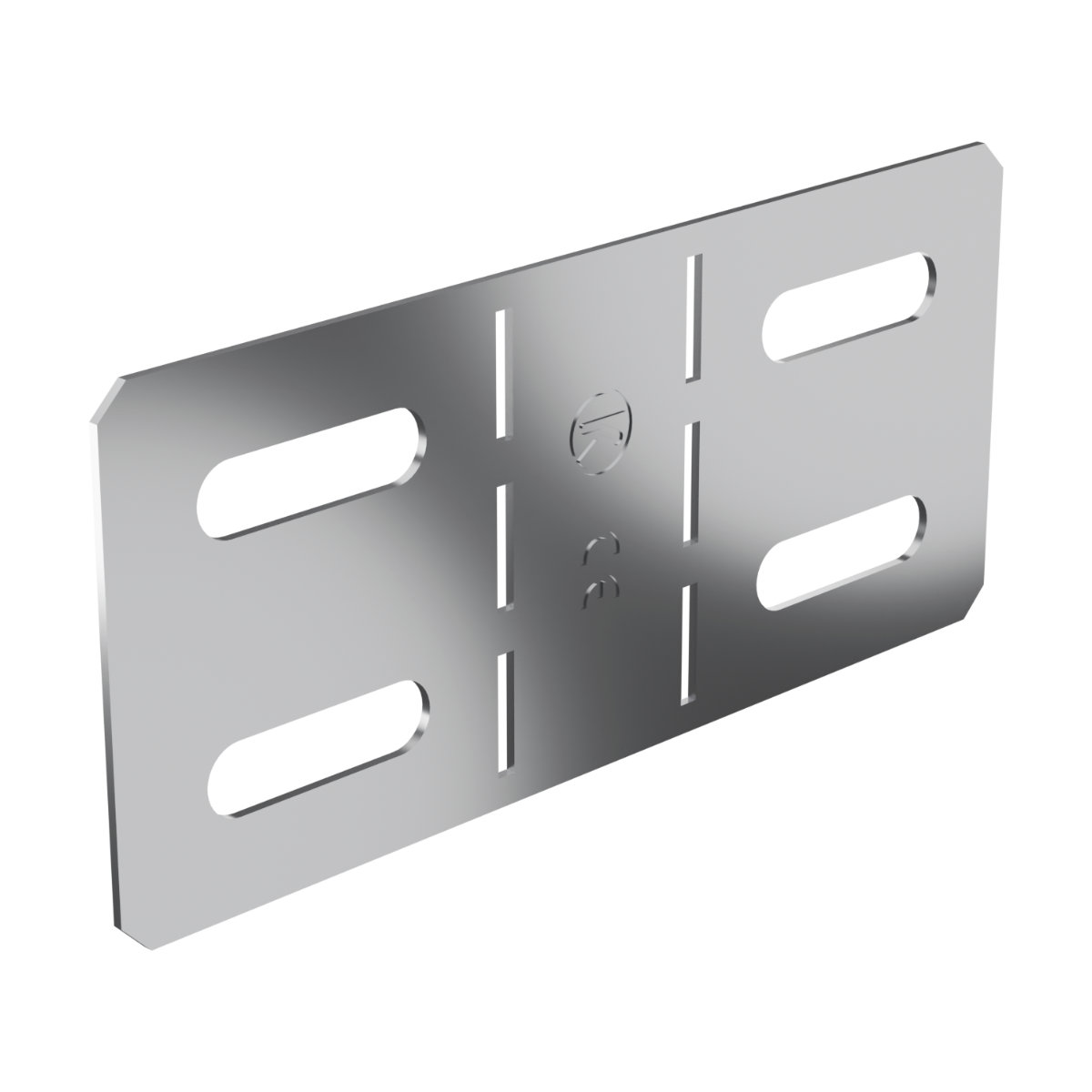

illustrative picture
K-R_EN
| Código EAN | 8595568939005 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,0391 kg/pcs |
| Tratamiento superficial | Magnelis® |
| Resistencia térmica | -50 - 150 °C |
| Espesor de la chapa metálica | 1 mm |
| Cantidad de tornillos para la conexión | 4 |
| Dimensión H | 50 mm |
| Dimensión L | 111 mm |
| Para la anchura de la bandeja | 25 mm |
| Para la altura de la bandeja | 60 mm |
The plate is intended to be used as an end piece or reducer of the cable route. According to the requirement of use, the plate is bent in the perforated places into a U-shape as an end piece or into a Z-shape as a reduction. The end piece / reducer is attached to the tray with NSM 6X10 screws.
