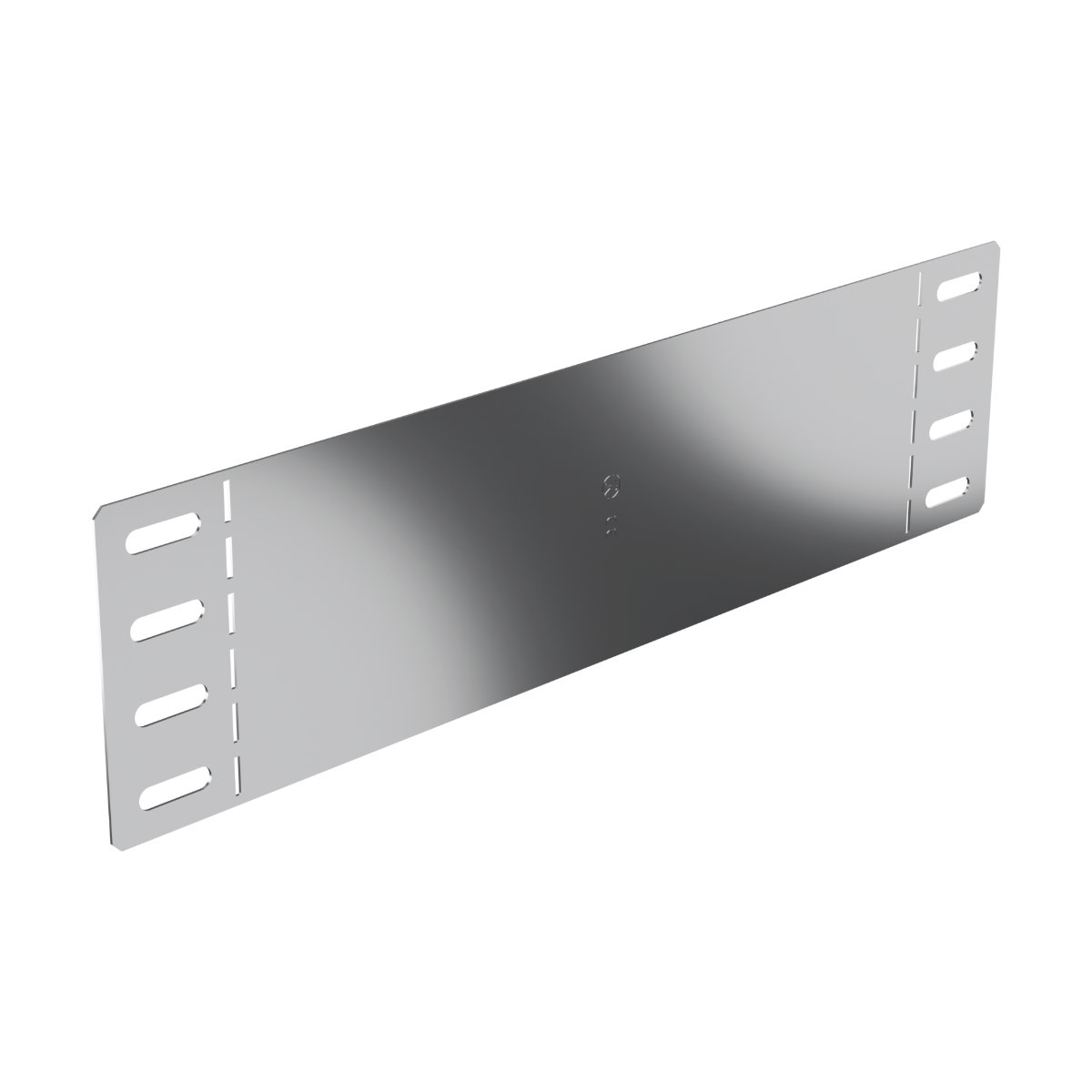

illustrative picture
K-R_EN
| Código EAN | 8595568938824 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,2200 kg/pcs |
| Tratamiento superficial | Magnelis® |
| Resistencia térmica | -50 - 150 °C |
| Espesor de la chapa metálica | 1 mm |
| Cantidad de tornillos para la conexión | 4 |
| Dimensión H | 100 mm |
| Dimensión L | 386 mm |
| Para la anchura de la bandeja | 300 mm |
| Para la altura de la bandeja | 110 mm |
The plate is intended to be used as an end piece or reducer of the cable route. According to the requirement of use, the plate is bent in the perforated places into a U-shape as an end piece or into a Z-shape as a reduction. The end piece / reducer is attached to the tray with NSM 6X10 screws.
