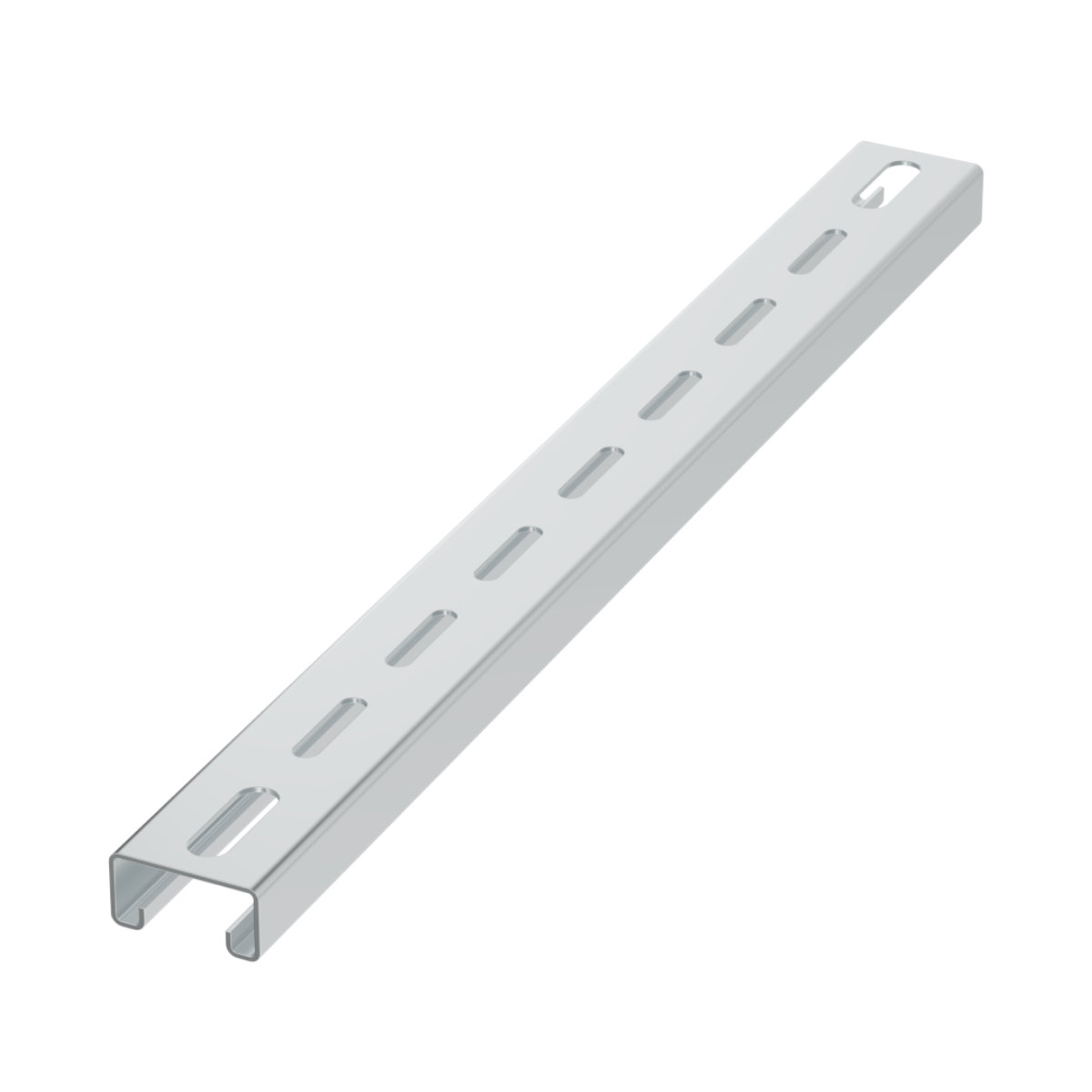

illustrative picture
To download 3D models, please login or create an account and request access.
NP_450-650_EN
| Código EAN | 8595568939531 |
| Elcodigo aduanero | 72169180 |
| Peso | 0,5030 kg/pcs |
| Tratamiento superficial | Magnelis® |
| Resistencia térmica | -50 - 150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 1,5 mm |
| Carga máxima | 150 kg |
| Dimensión A | 450 mm |
| Dimensión B | 41,5 mm |
| Dimensión C | 21 mm |
| Para la anchura de la bandeja | 400 mm |
| Agujeros externos | 11x35 mm |
| Agujeros internos | 7x32 mm |
Suitable for creating of beam for cable traces to be carried on thread rods. The load bearing profile is fixed by using two threaded rods ZT 10 + nut M 10 + washer PD 10.
