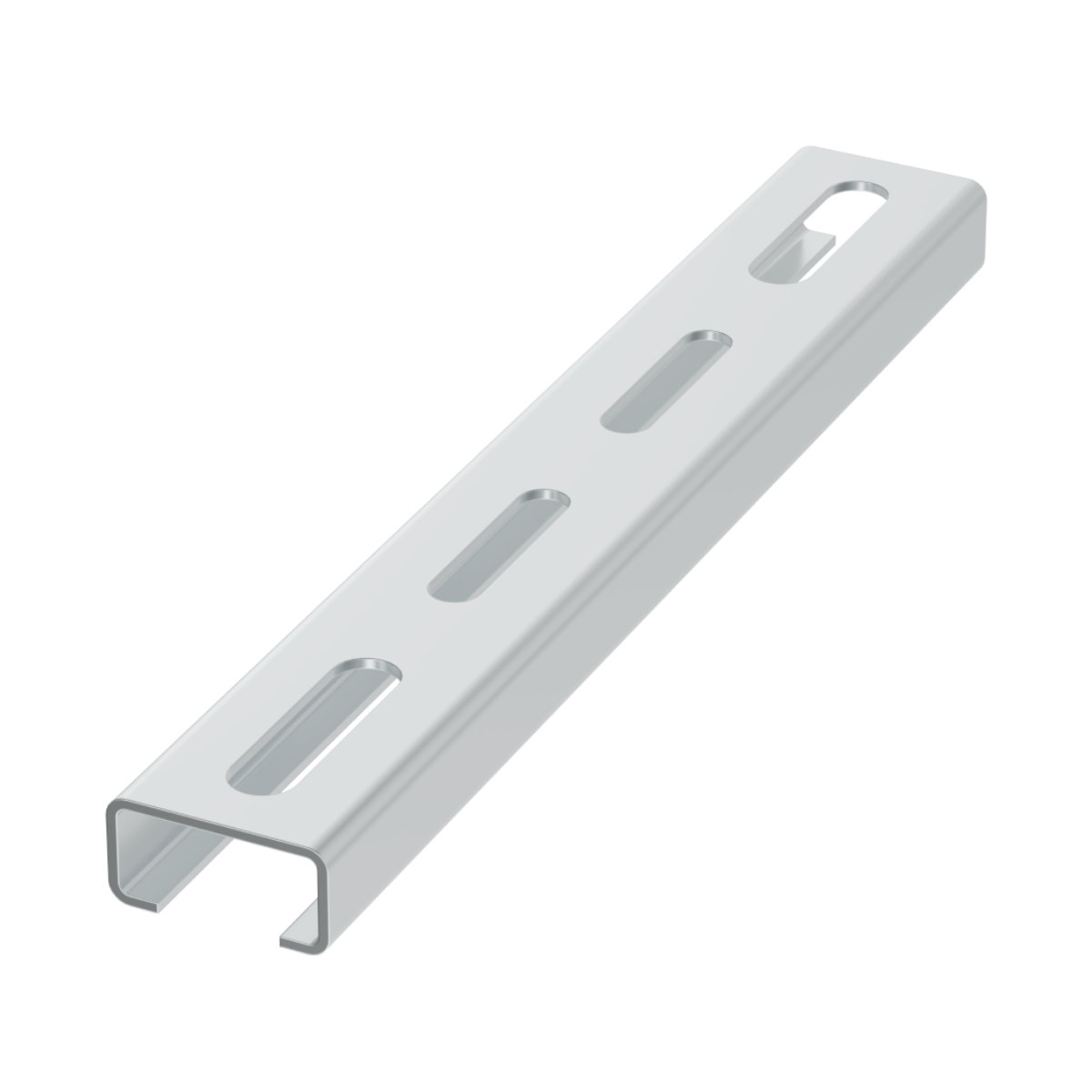

illustrative picture
To download 3D models, please login or create an account and request access.
NP_100-350_EN
| Código EAN | 8595568939500 |
| Elcodigo aduanero | 72169180 |
| Peso | 0,1171 kg/pcs |
| Tratamiento superficial | Magnelis® |
| Resistencia térmica | -50 - 150 °C |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 1,2 mm |
| Carga máxima | 100 kg |
| Dimensión A | 200 mm |
| Dimensión B | 30 mm |
| Dimensión C | 15 mm |
| Para la anchura de la bandeja | 150 mm |
| Agujeros externos | 9x35 mm |
| Agujeros internos | 7x32 mm |
Suitable for creating of beam for cable traces to be carried on thread rods. The load bearing profile is fixed by using two threaded rods ZT 8 + nut M 8 + washer PD 8.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
