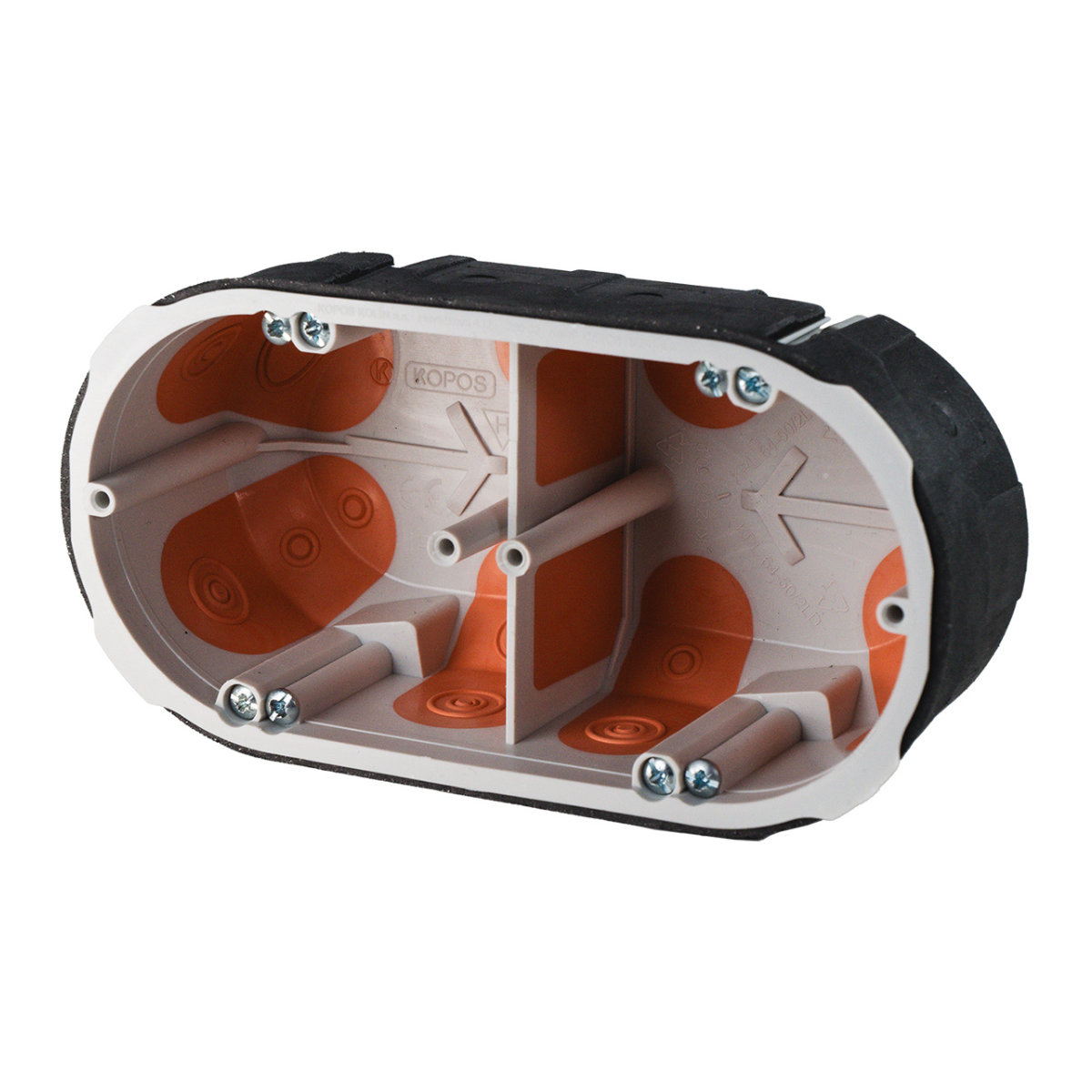

illustrative picture
To download 3D models, please login or create an account and request access.
Código EAN8595568937629
Elcodigo aduanero39259080
Peso0,1006 kg/pcs
Colorblack + gray + orange
MaterialPP
Material libre de halógenosyes
Material sin plomoyes
Insonorizaciónyes
Autoextinguible30 s
Voltaje nominal<= 400 V
Corriente nominal<= 16 A
Resistencia térmica-5 - 60 °C
Ensayo de hilo incandescente850 °C
Modo de montajehorizontal and vertical mounting
Ancho144 mm
Altura75 mm
Profundidad53 mm
Diámetro de orificio fresado (perforado)73 mm
Recomendaciones del fabricante
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Clase de reacción al fuegoA1 - F
Clase de protecciónIP 30
Corresponde a las normas
ČSN EN 60 670-1, ČSN EN 1363-1:2013, ČSN 73 08 10
Estándares de resistencia al fuegoEI 15 - EI 90
La descripción del embalaje
the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box

In case of fire, it provides integrity and insulation for up to 90 minutes (EI 15 - EI 90). The entry openings are made of flexible material. The fire-resistant material is located outside the box. The drill bit diameter for installation is 73 mm. The box is soundproof (soundproofing up to 69 dB). Mounting screws are equipped with a double-threaded design with plastic pads for quick installation. The box is designed for facilities with increased need for personal and property protection.
