illustrative picture
To download 3D models, please login or create an account and request access.
DZI_EN
| Código EAN | 8595568931399 |
| Elcodigo aduanero | 73262000 |
| Peso | 0,5900 kg/m |
| Tratamiento superficial | stainless steel |
| Ancho | 60 mm |
| Altura | 60 mm |
| Longitud | 3000 mm |
| Corresponde a las normas | ČSN EN 61537 |
| Diámetro del alambre | 3,9 mm |
| Carga máxima para resistencia al fuego | 5 - 10 kg |

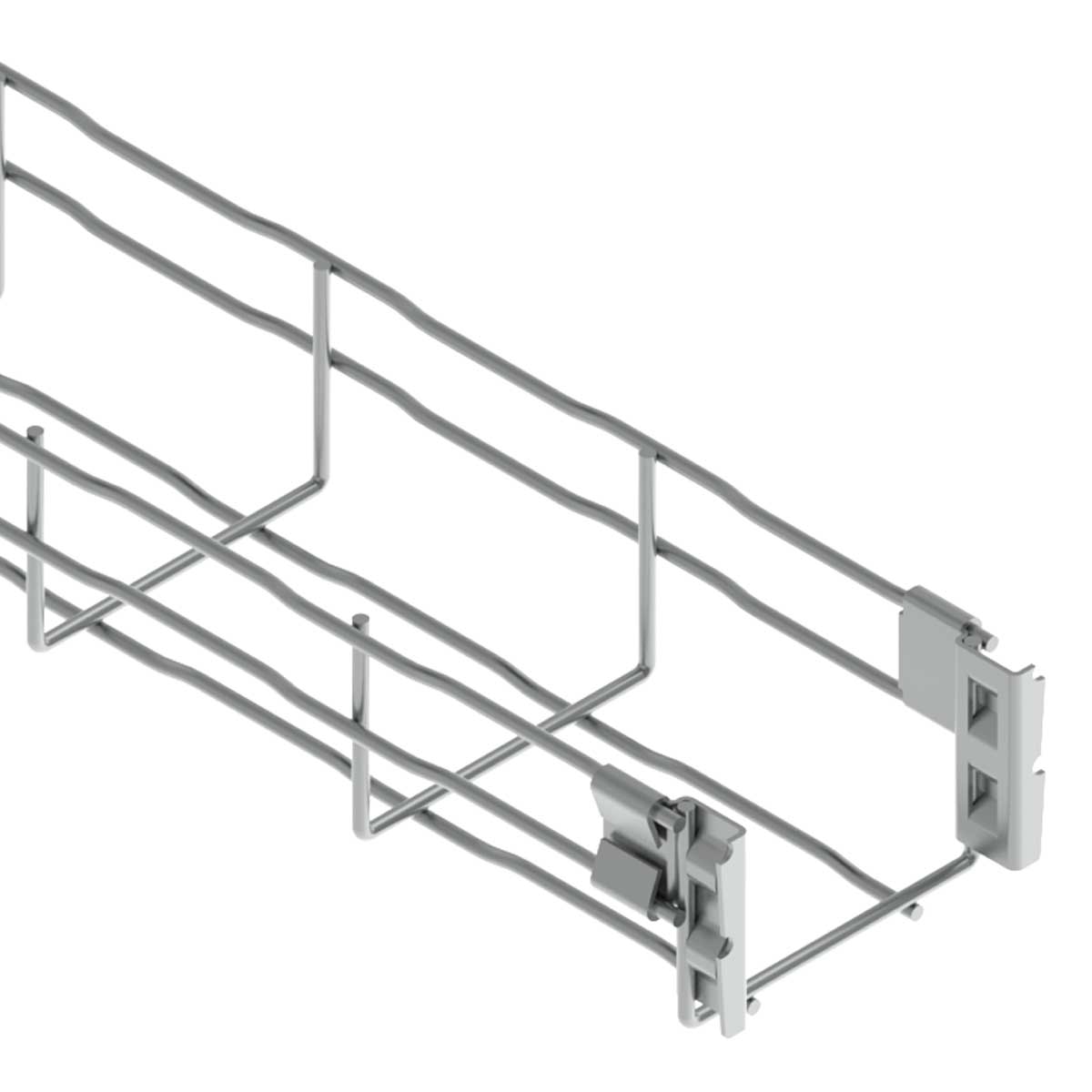

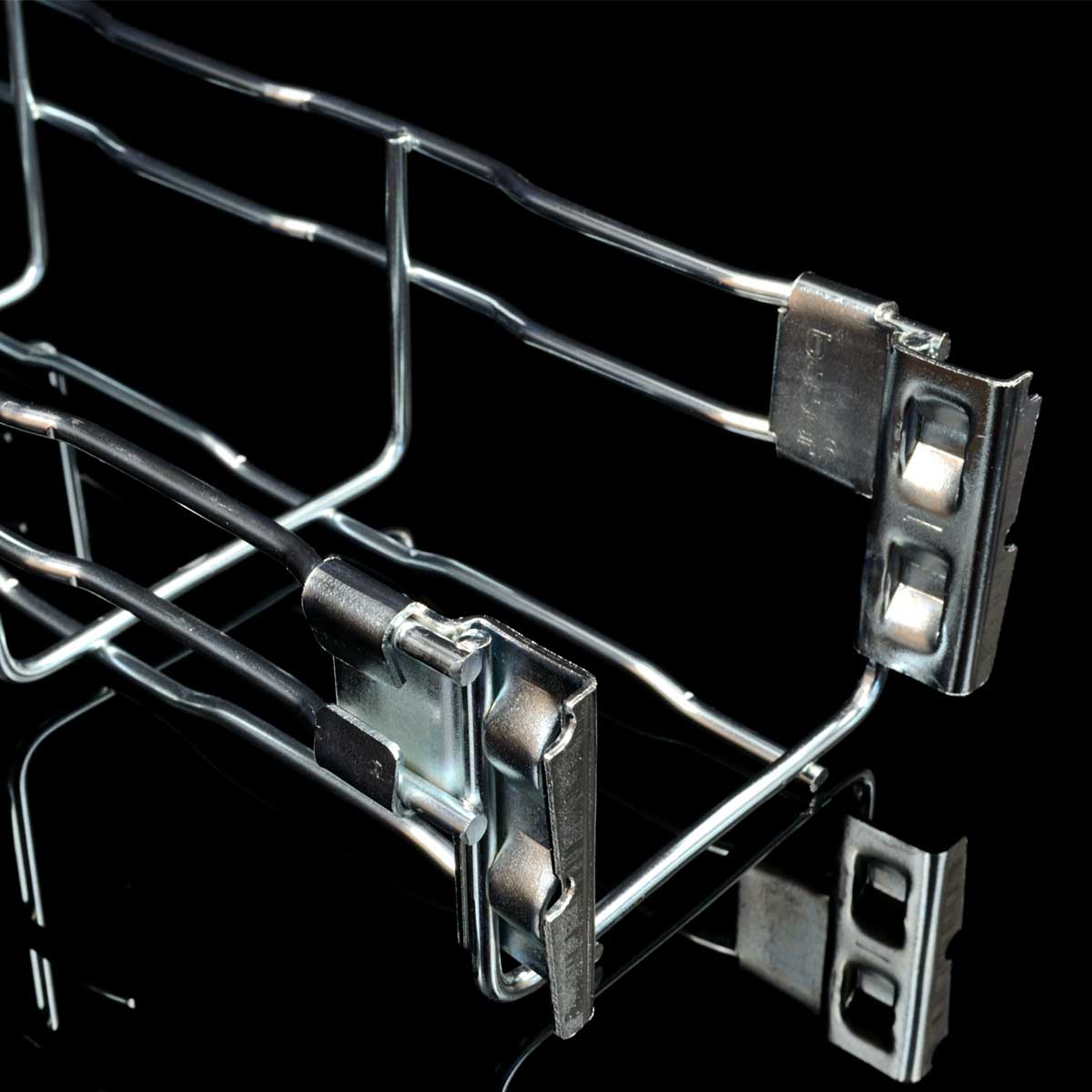

There are couplings at one end of the wire cable tray. In this way the conductive connection is fulfilled. To enable the proper ventilation it is recommended to install the trays at a distance at least 250 mm from each other and 20 mm from the wall.
