Código EAN | 8595057644328 |
Elcodigo aduanero | 73269098 |
Peso | 0,3900 kg/pcs |
Tratamiento superficial | Pre-Galvanized |
Resistencia térmica | -50 - 150 °C |
Corresponde a las normas | ČSN EN 61537 |
Espesor de la chapa metálica | 2 mm |
Dimensión A | 400 mm |
Para la anchura de la bandeja | 400 mm |

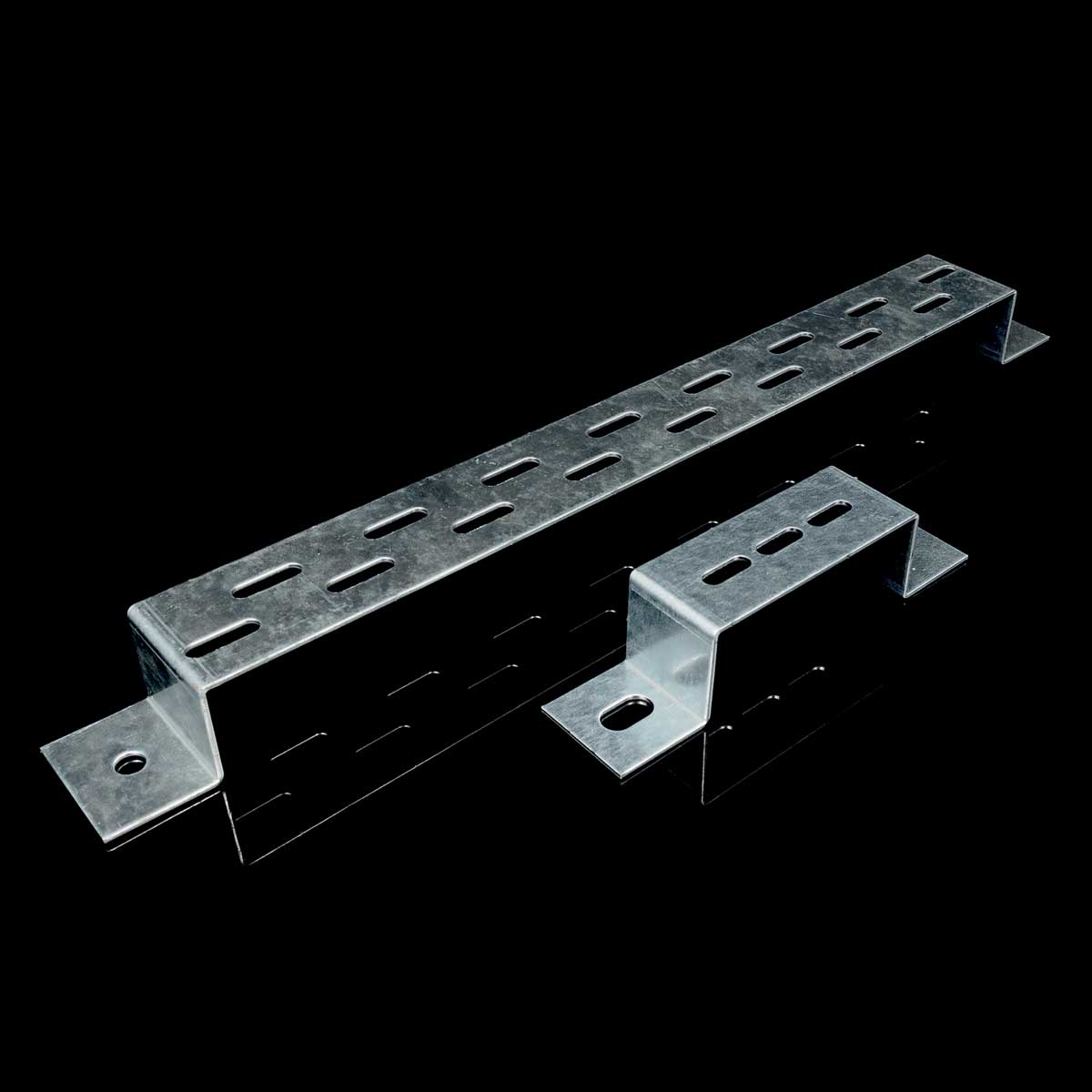

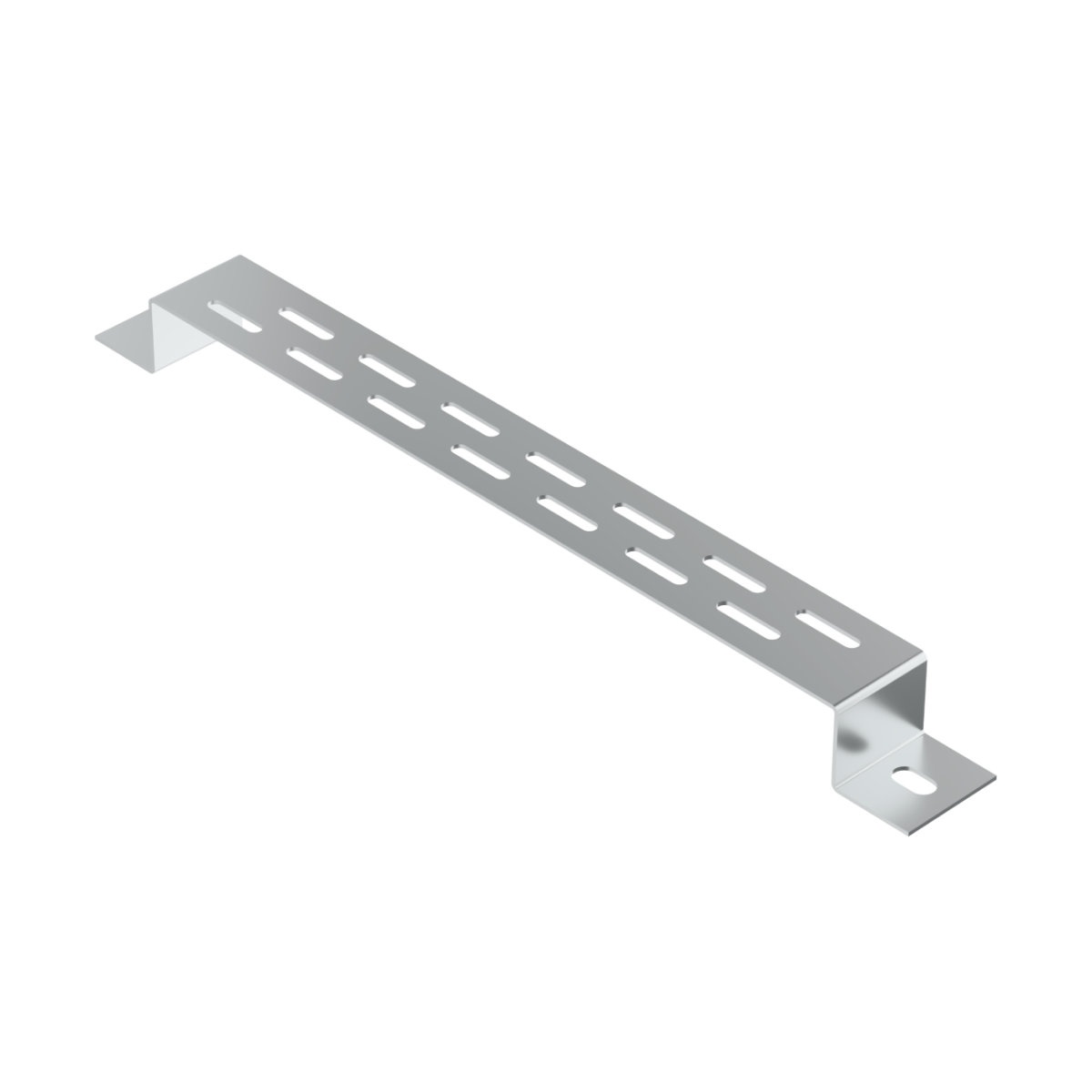

It is used to attach a cable tray to the floor or wall. Attachment to the wall is carried using the Ø 10 mm wall clamps. Cable tray is installed to VMB using the bolts NSM 6X10.
