Rising elbow 90°

SO 90X35X50_F

2D
3D

Adjuntos y certificaciones

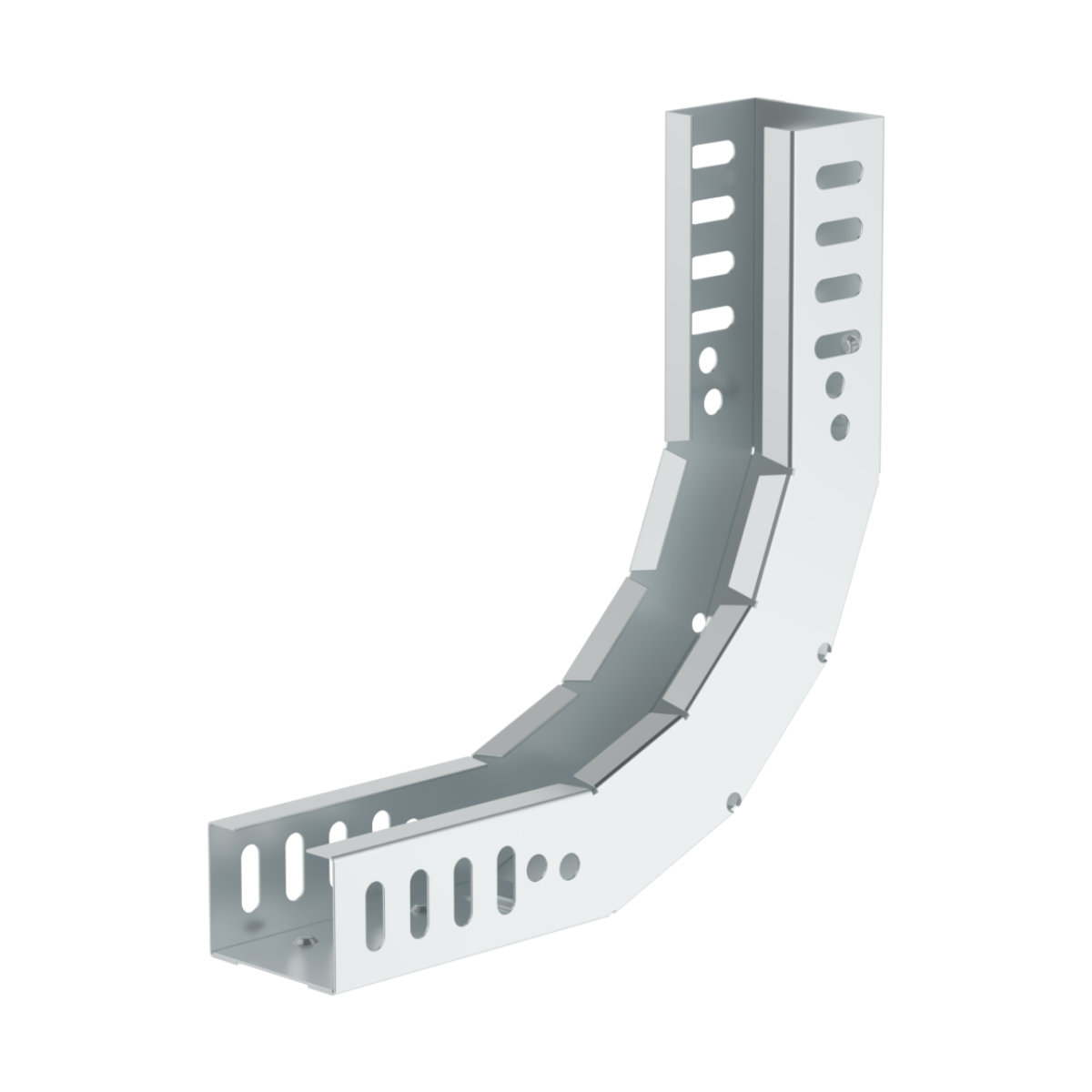

illustrative picture

SO 90X35X50_F

SO 90X35X50_F

SO 90X35X50_F

To download 3D models, please login or create an account and request access.

Hoja de datos
SO_EN

Certificado
Conformity declaration
Declaration RoHS
Declaration REACH
Certificate ESČ

Código EAN	8595057662742
Elcodigo aduanero	73089059
Peso	0,4292 kg/pcs
Tratamiento superficial	Hot Dip Galvanized
Resistencia térmica	-50 - 150 °C
Corresponde a las normas	ČSN EN 61537
Espesor de la chapa metálica	0,8 mm
Cantidad de tornillos para la conexión	8

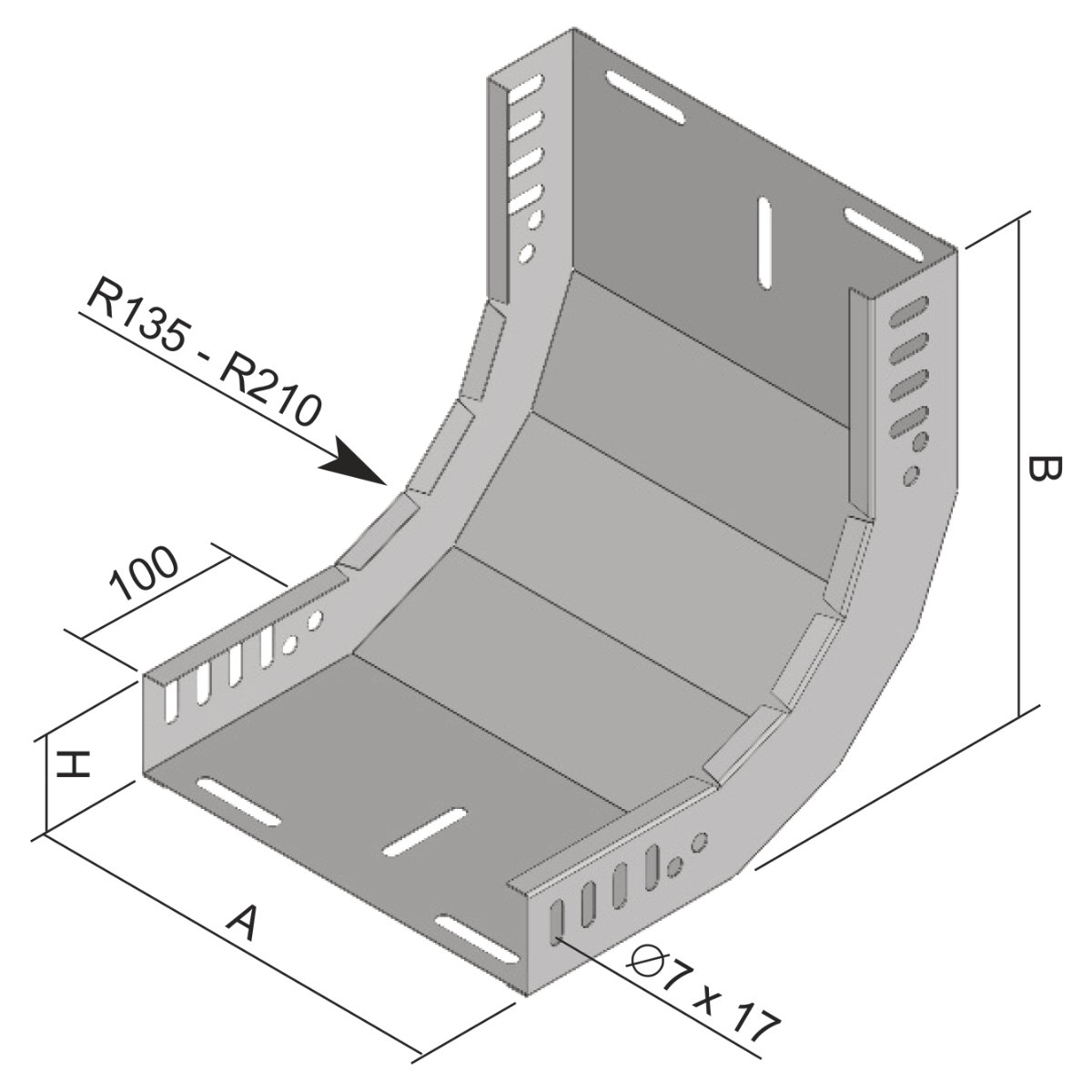

Dimensión A	53 mm
Dimensión B	220 mm
Dimensión H	40 mm
Para la anchura de la bandeja	50 mm
Para la altura de la bandeja	35 mm

To fix the connection use the bolt NSM 6X10
