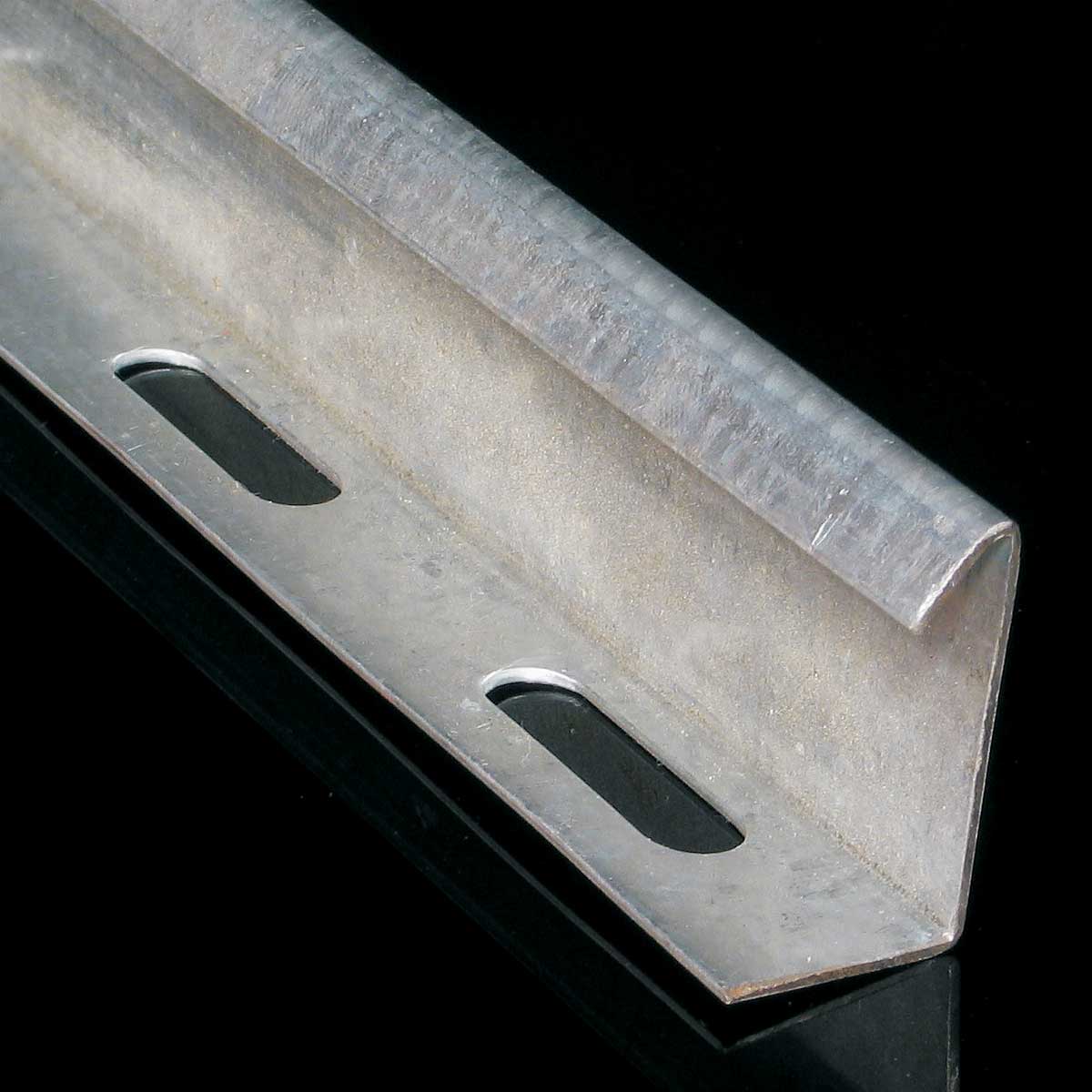

illustrative picture
To download 3D models, please login or create an account and request access.
P_EN
| Código EAN | 8595057663435 |
| Elcodigo aduanero | 72169180 |
| Peso | 0,7220 kg/m |
| Tratamiento superficial | Hot Dip Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Longitud | 2000 mm |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 1 mm |
| Cantidad de tornillos para la conexión | 4 |

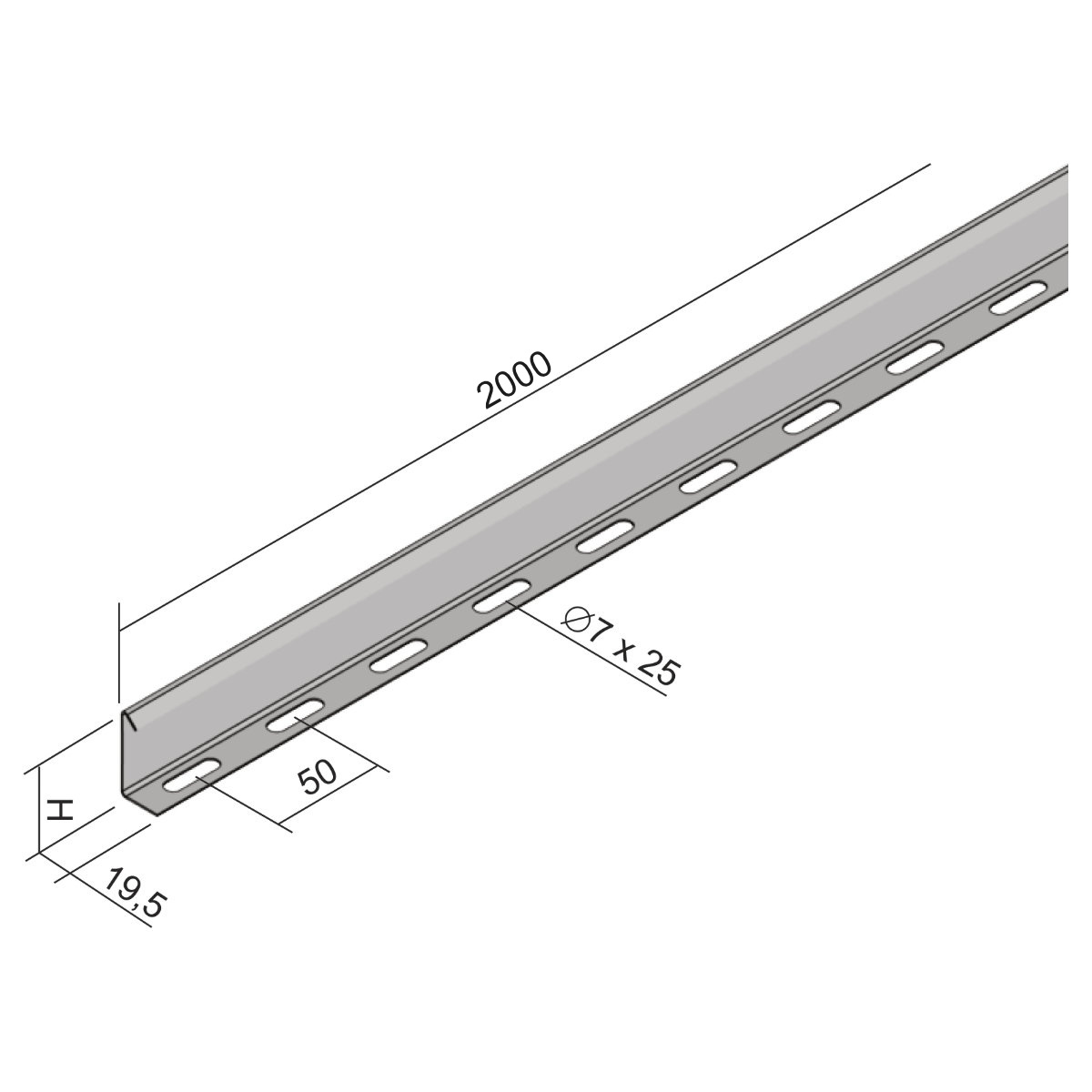

| Dimensión A | 19,5 mm |
| Dimensión D | 50 mm |
| Dimensión H | 54 mm |
| Para la altura de la bandeja | 60 mm |

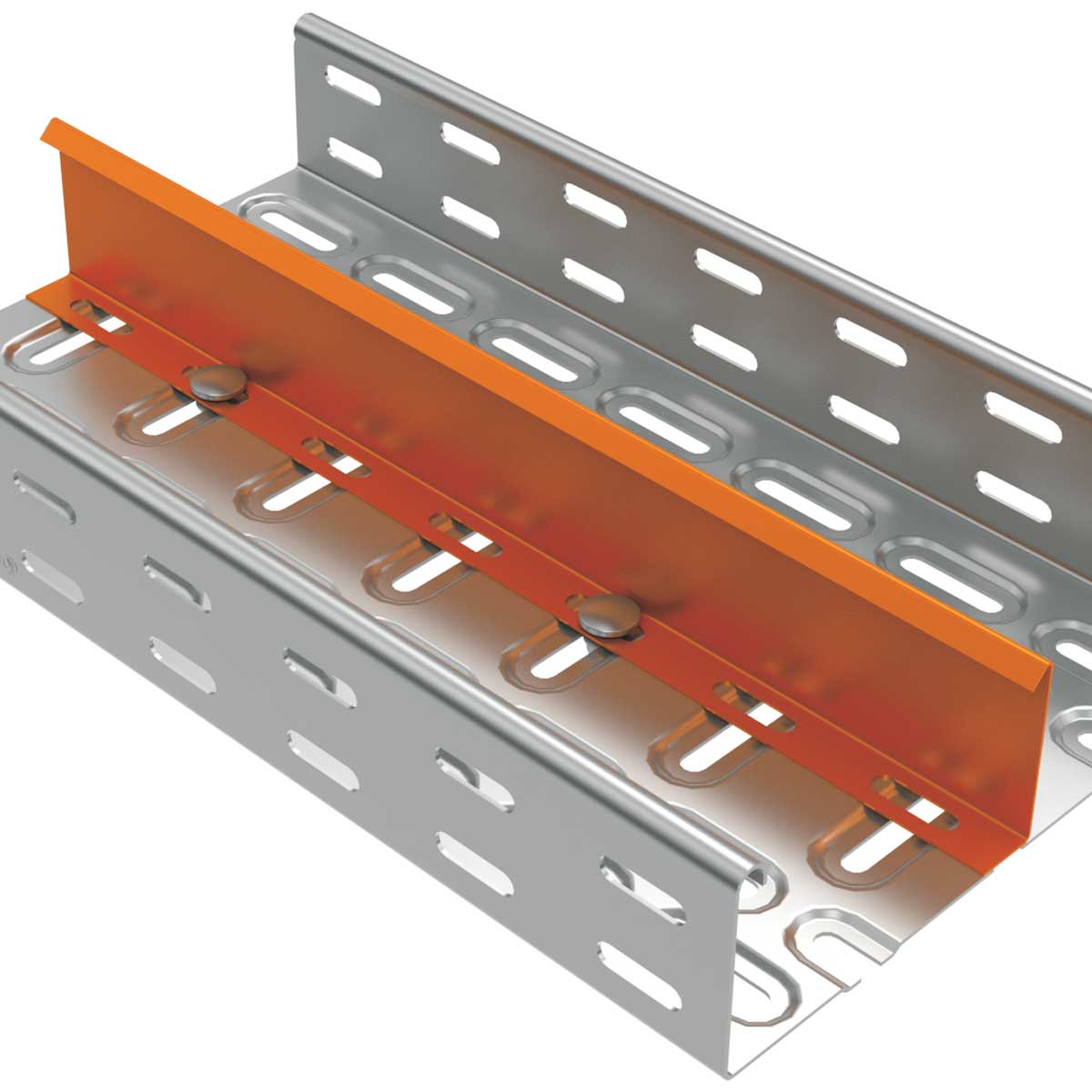

The connection is performed using the bolts NSM 6X10, 2 pcs per 1 meter. The partition is used to separate cables in cable trays. In term of electrical compatibility, it is also used for dividing several types of lines. It is recommended to use covers for this type of installation and make the covered and shielded room.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
