To download 3D models, please login or create an account and request access.
Código EAN | 8595568904720 |
Elcodigo aduanero | 73089059 |
Peso | 0,2510 kg/pcs |
Tratamiento superficial | Stainless steel AISI 304 |
Resistencia térmica | -50 - 150 °C |
Corresponde a las normas | ČSN EN 61537 |
Espesor de la chapa metálica | 0,6 mm |
Dimensión A | 129 mm |
Dimensión B | 221 mm |
Dimensión H | 15 mm |
Para la anchura de la bandeja | 125 mm |
Para la altura de la bandeja | 50 - 100 mm |

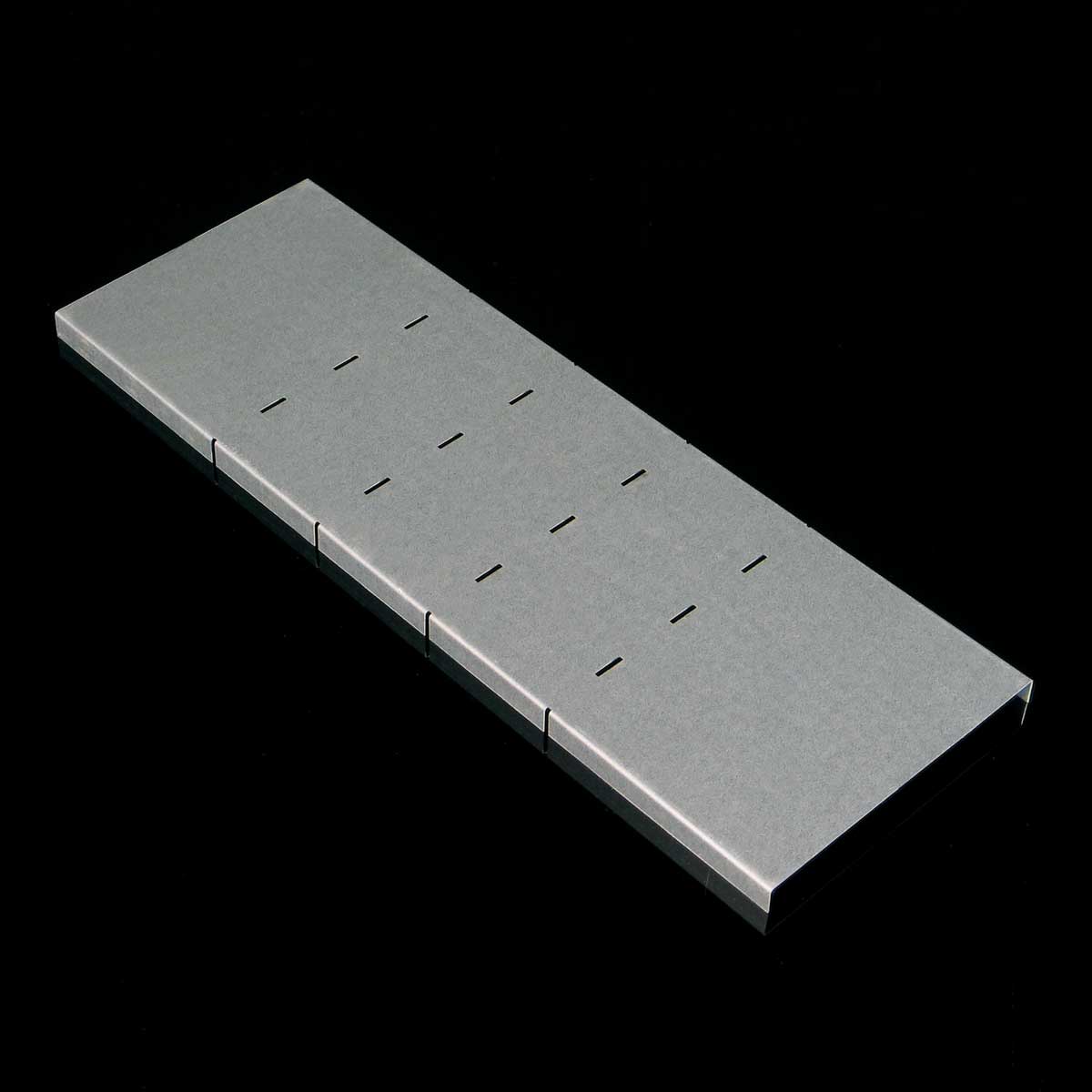

To fix the cover use cover fixtures NIXUV. The covers are delivered straight. They are made from one piece of sheet metal with pre-cut side walls for later bending during assembly.
