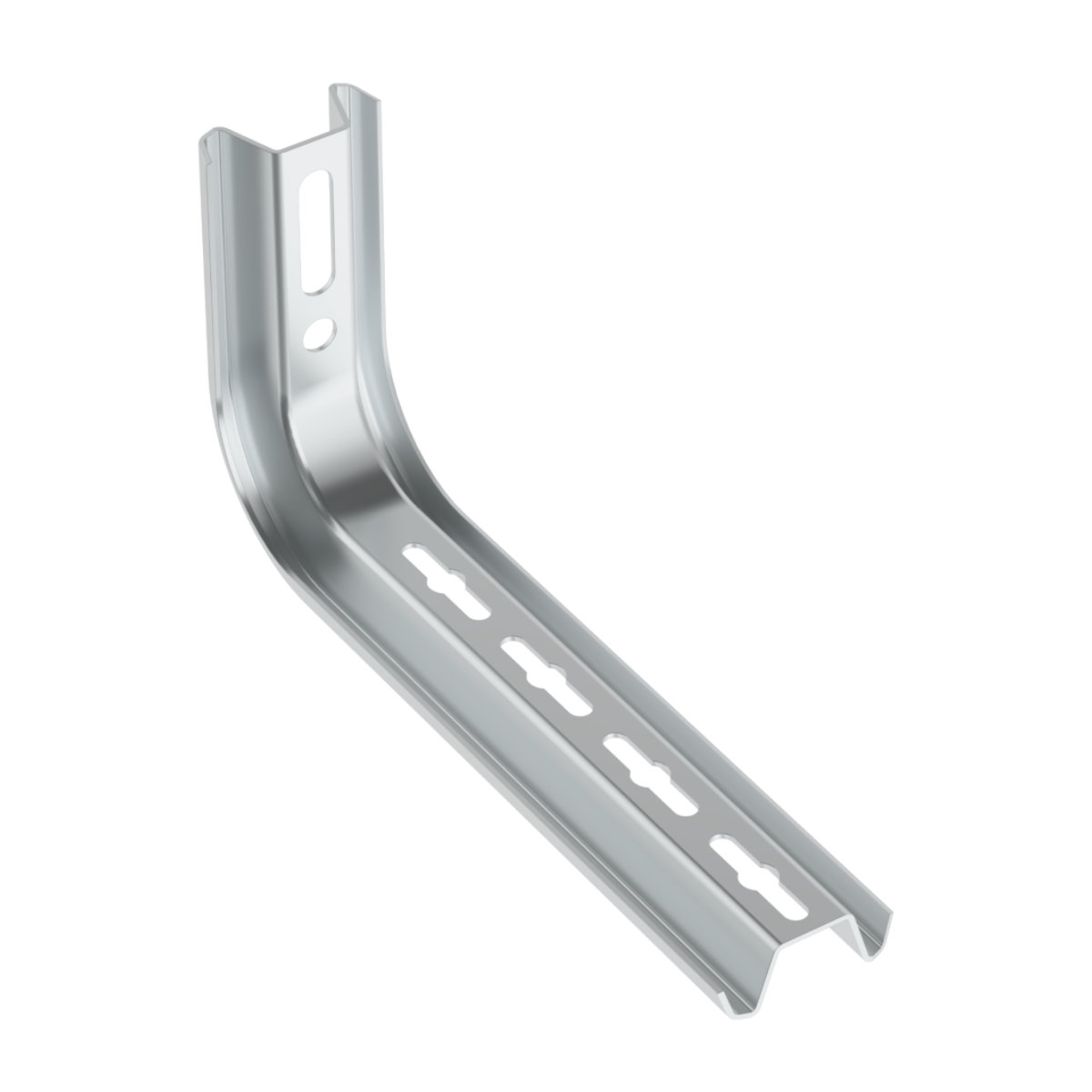

illustrative picture
To download 3D models, please login or create an account and request access.
LTS_EN
| Código EAN | 8595057639713 |
| Elcodigo aduanero | 83024190 |
| Peso | 0,3400 kg/pcs |
| Tratamiento superficial | Pre-Galvanized |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Carga máxima | 110 kg |
| Dimensión A | 263 mm |
| Para la anchura de la bandeja | 200 mm |
| Carga máxima para resistencia al fuego | 10 kg |
Holders are used on the wall or on the ceiling profile. To eliminate deformation during assembly the STS reinforcement is designated. The cable tray is fixed by using the bolts NSM 6X10. The installation is done by the anchors KPO 10X95 or KKZ 10, screws S 10X40 and washers PD 10.
Note for system with maintained functionality in fire:
To eliminate deformation during assembly the STS reinforcement
is designated.
You find more information in the catalogue Systems with maintained functionality in fire.
