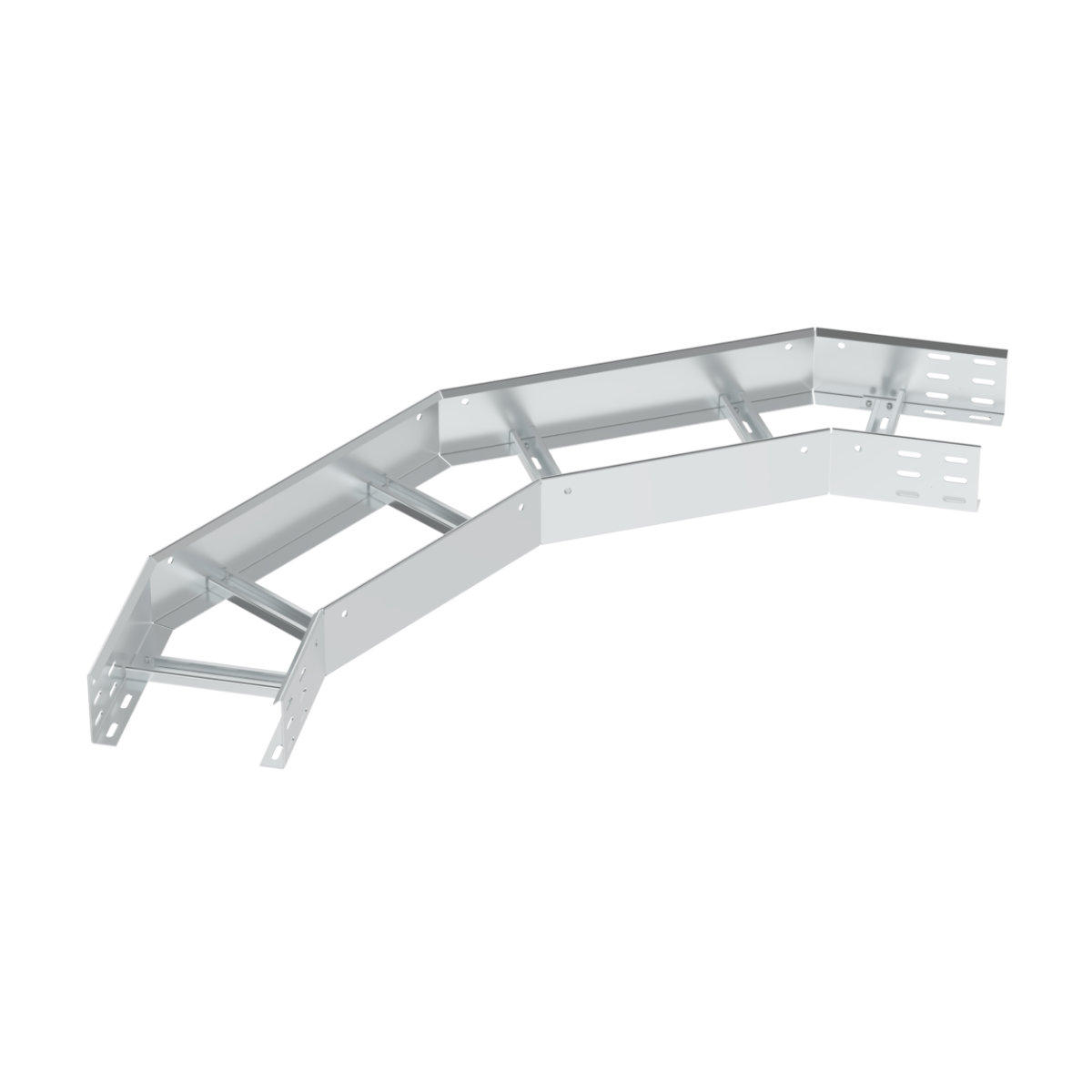

illustrative picture
To download 3D models, please login or create an account and request access.
KLOBH_EN
| Código EAN | 8595057644533 |
| Elcodigo aduanero | 73089059 |
| Peso | 3,8620 kg/pcs |
| Tratamiento superficial | Pre-Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 1,2 - 1,5 mm |
| Cantidad de tornillos para la conexión | 24 |
| Dimensión A | 200 mm |
| Dimensión H | 85 mm |
The connection of the bend with the ladder is performed by using the 4 pcs couplings S 85X200 and 24 pcs the bolts NSM 6X10.
