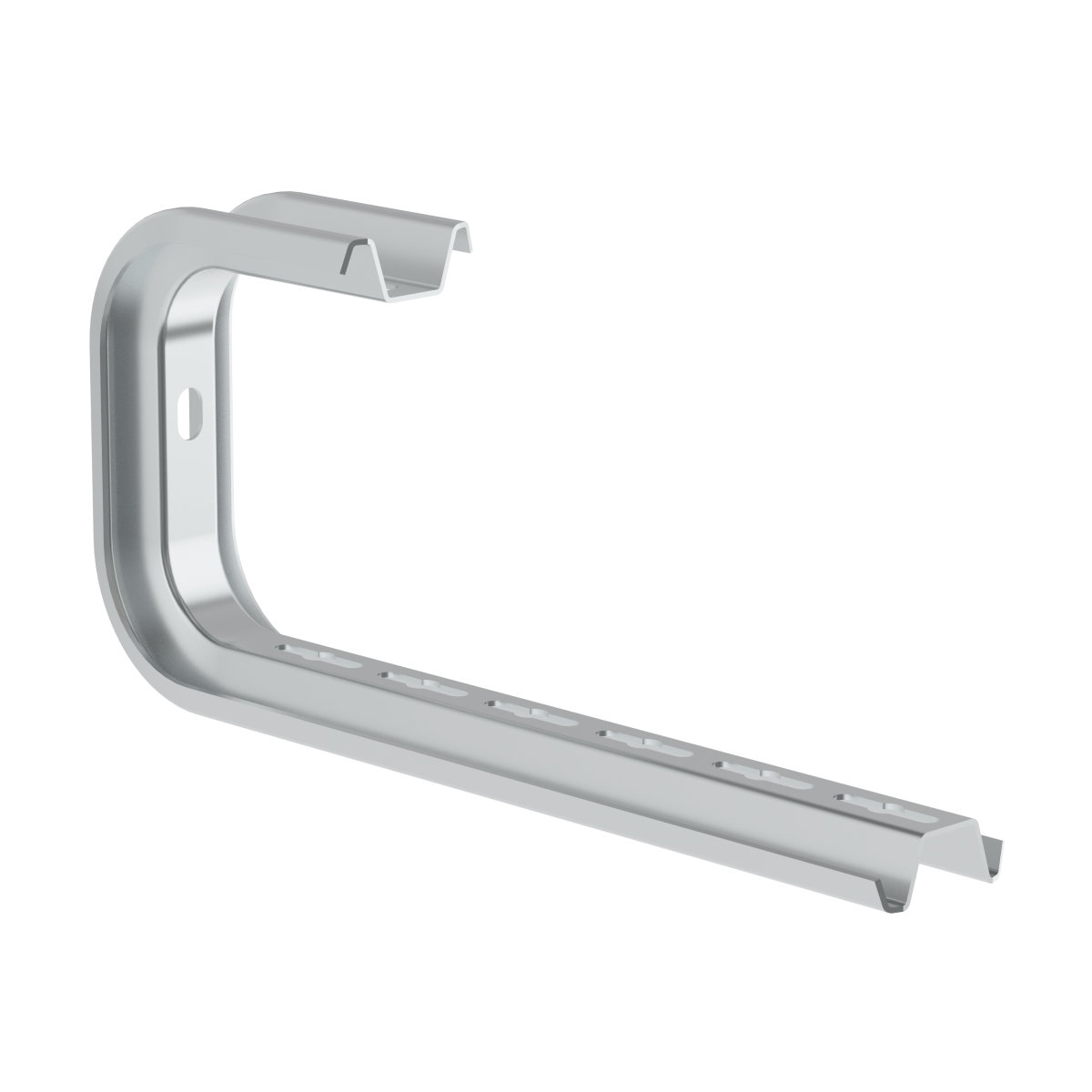

illustrative picture
To download 3D models, please login or create an account and request access.
CTS_EN
| Código EAN | 8595057630239 |
| Elcodigo aduanero | 83024190 |
| Peso | 0,8200 kg/pcs |
| Tratamiento superficial | Pre-Galvanized |
| Carga máxima | 50 kg |
| Carga máxima con la barra con manguito | 110 kg |
| Dimensión A | 361 mm |
| Para la anchura de la bandeja | 300 mm |
Designated for direct mounting to the ceiling or with a threaded rod ZT 8 or ZT 10. The cable tray is fixed by using the bolts NSM 6X10. To eliminate deformation during assembly the STS reinforcement is designated. The installation is done by the anchors KPO 10X95 or KKZ 10, screws S 10X40 and washers PD 10.
