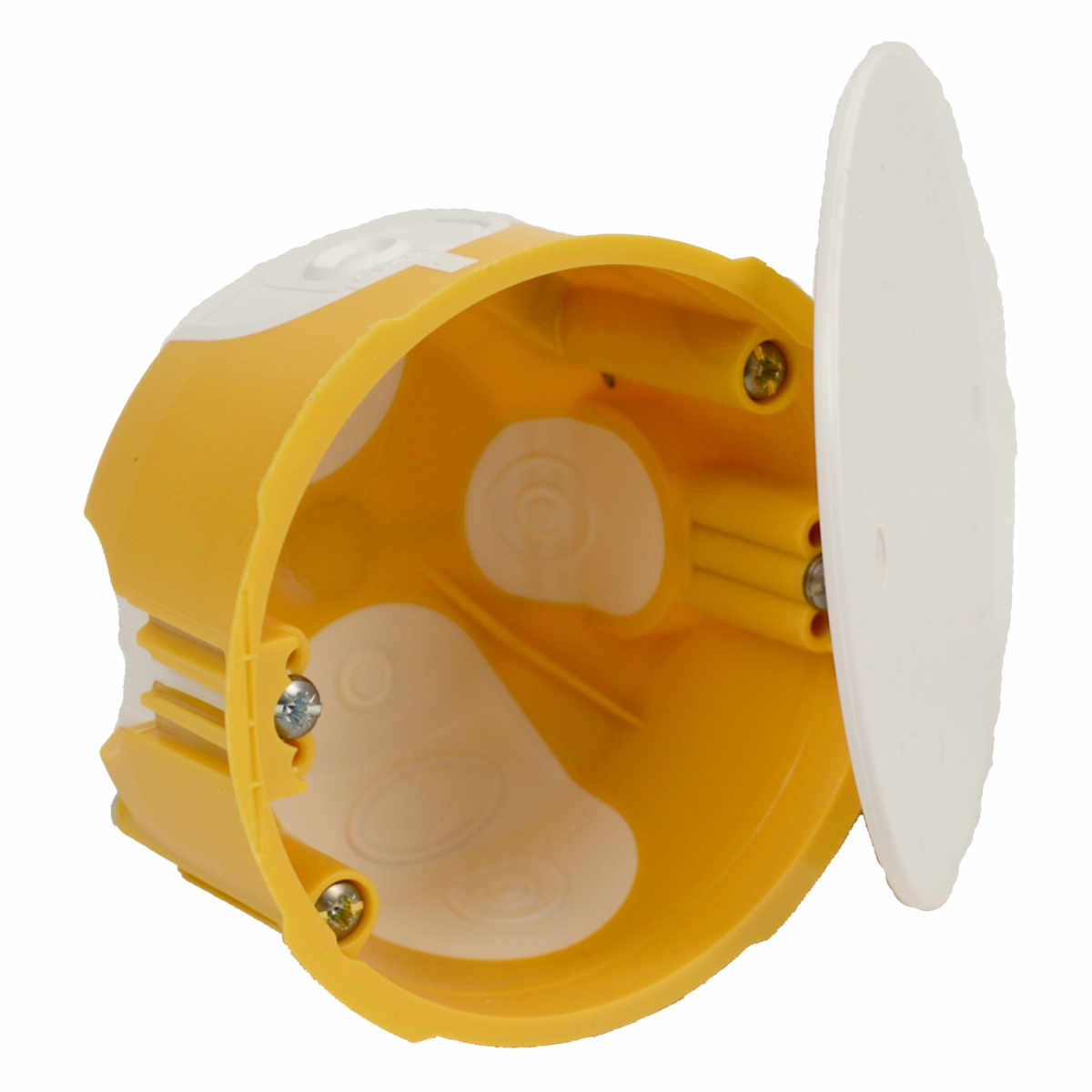

illustrative picture
KUL6845LD2_EN
| Código EAN | 8595568930644 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,0448 kg/pcs |
| Material | PVC |
| Material sin plomo | yes |
| Insonorización | yes |
| Autoextinguible | 30 s |
| Voltaje nominal | <= 400 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -5 - 60 °C |
| Ensayo de hilo incandescente | 850 °C |
| Medio | 73 mm |
| Profundidad | 45 mm |
| Diámetro de orificio fresado (perforado) | 73 mm |
| Recomendaciones del fabricante For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Clase de reacción al fuego | A1 - F |
| Clase de protección | IP 30 |
| Corresponde a las normas | ČSN EN 60 670-1 |
| La descripción del embalaje boxes fitted with screws for mounting the box in plasterboard, the lid screwed to the box | |
Inlet openings made of flexible material. The instalation of the cable is done by pulling the pre-pressed inlet on the flexible membranes and inserting the cable or pipe into the hole formed. Air proofed even with inserted cable or pipe. Suitable for low-energy or passive houses and for soundproof walls with attenuation up to 69 dB. Mounting screws are fitted with a double thread for quick installation, the box includes plastic feet. Prevents airflow through the installation. The IP30 protection complys a box fitted with a lid. When mounting, it is not necessary to countersink the plasterboard edge.
