terminal plate

Adjuntos y certificaciones

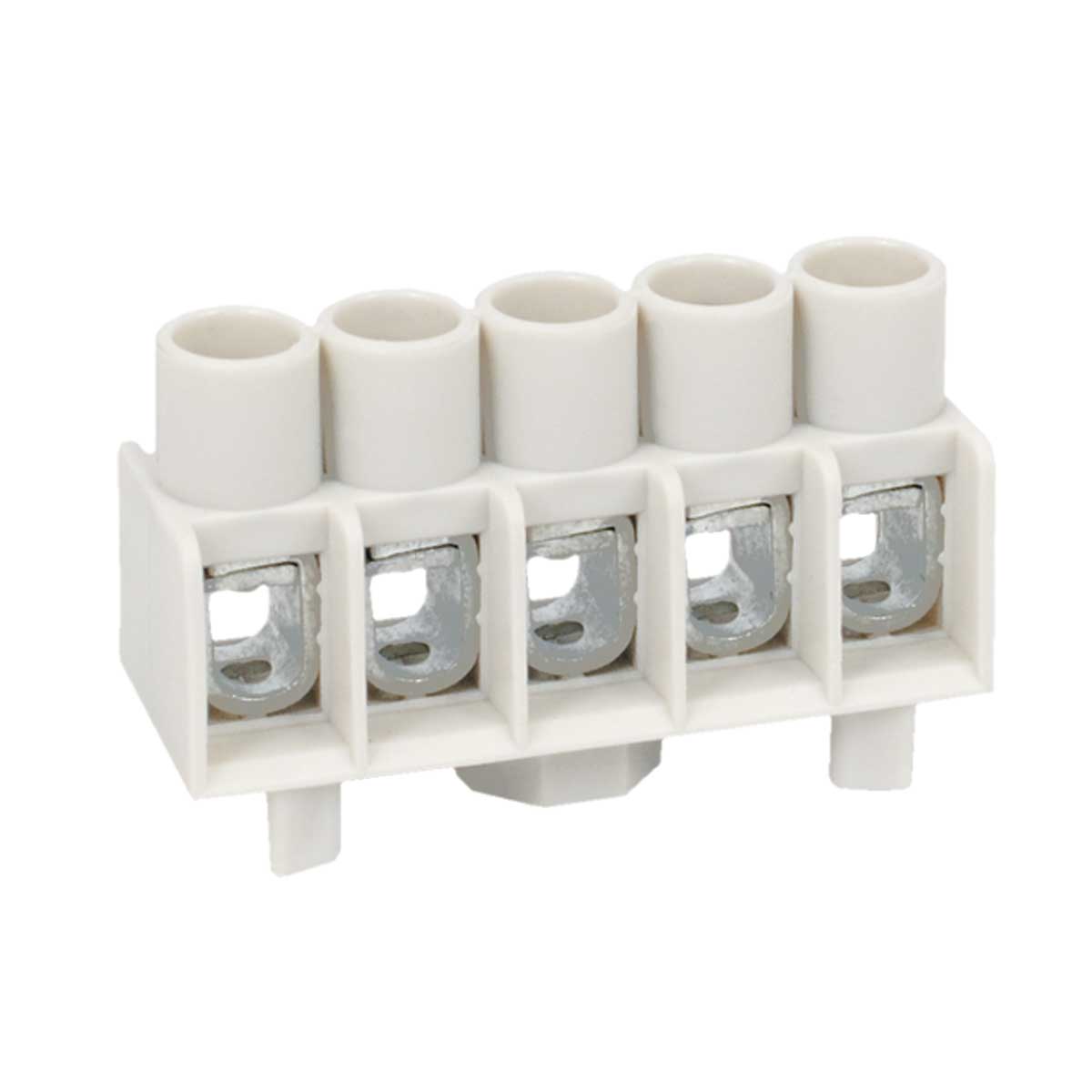

illustrative picture

To download 3D models, please login or create an account and request access.

Hoja de datos
SKSK1_EN

Certificado
Certificate ESČ
Declaration RoHS
Declaration REACH
Conformity declaration

Código EAN	8595568919656
Elcodigo aduanero	85369010
Peso	0,0200 kg/pcs
Material	PP
Material libre de halógenos	yes
Autoextinguible	30 s
Voltaje nominal	<= 500 V
Resistencia térmica	-40 - 85 °C
Ensayo de hilo incandescente	850 °C

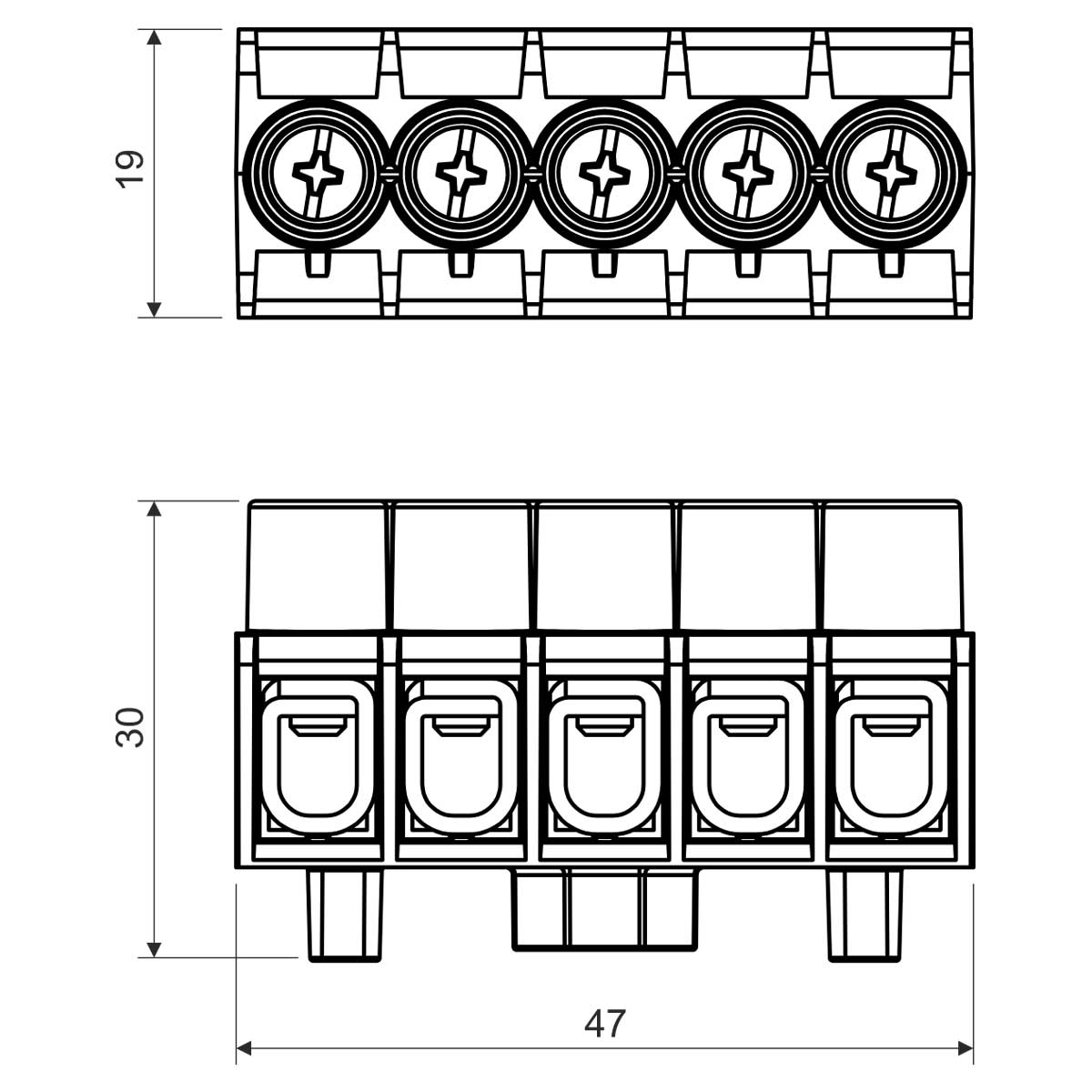

Ancho	47 mm
Altura	30 mm
Profundidad	19 mm
Sección transversal del conductor conectado	4 x 1,5 - 2,5; 3 x 4 mm2
Clase de reacción al fuego	A1 - F
La descripción del embalaje 10 pcs terminal plate wrapped in foil, marked with a label

Suitable for boxes KSK 80 and KSK 100. Branching terminal plate are composed of five separate terminals. Each terminal is intended for 4 wires of cross section 1.5 – 2.5 mm2 or 3 wires of cross section 4 mm2. Enables easy assembly to the box bottom. Designed for maximum voltage of 500 V. Tested according to ČSN EN 60998-1.
