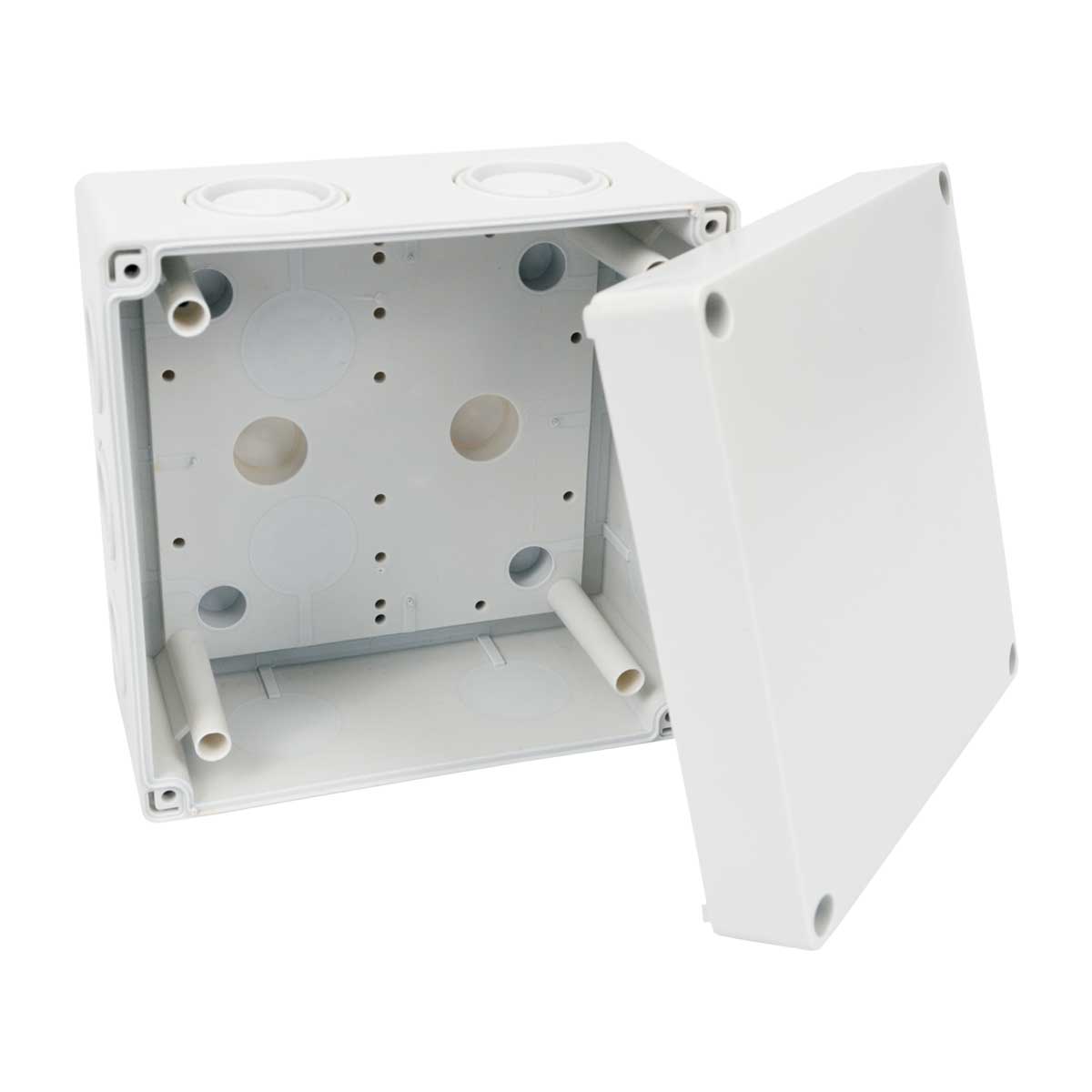

illustrative picture
To download 3D models, please login or create an account and request access.
KSK125_EN
| Código EAN | 8595568919670 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,2720 kg/pcs |
| Color | light grey RAL 7035 |
| Material | PP, lid - PA |
| Material libre de halógenos | yes |
| Material sin plomo | yes |
| Estable a los rayos UV/Material estable a los rayos UV | yes |
| Autoextinguible | 30 s |
| Voltaje nominal | <= 1000 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -25 - 60 °C |
| Ensayo de hilo incandescente | 850 °C |

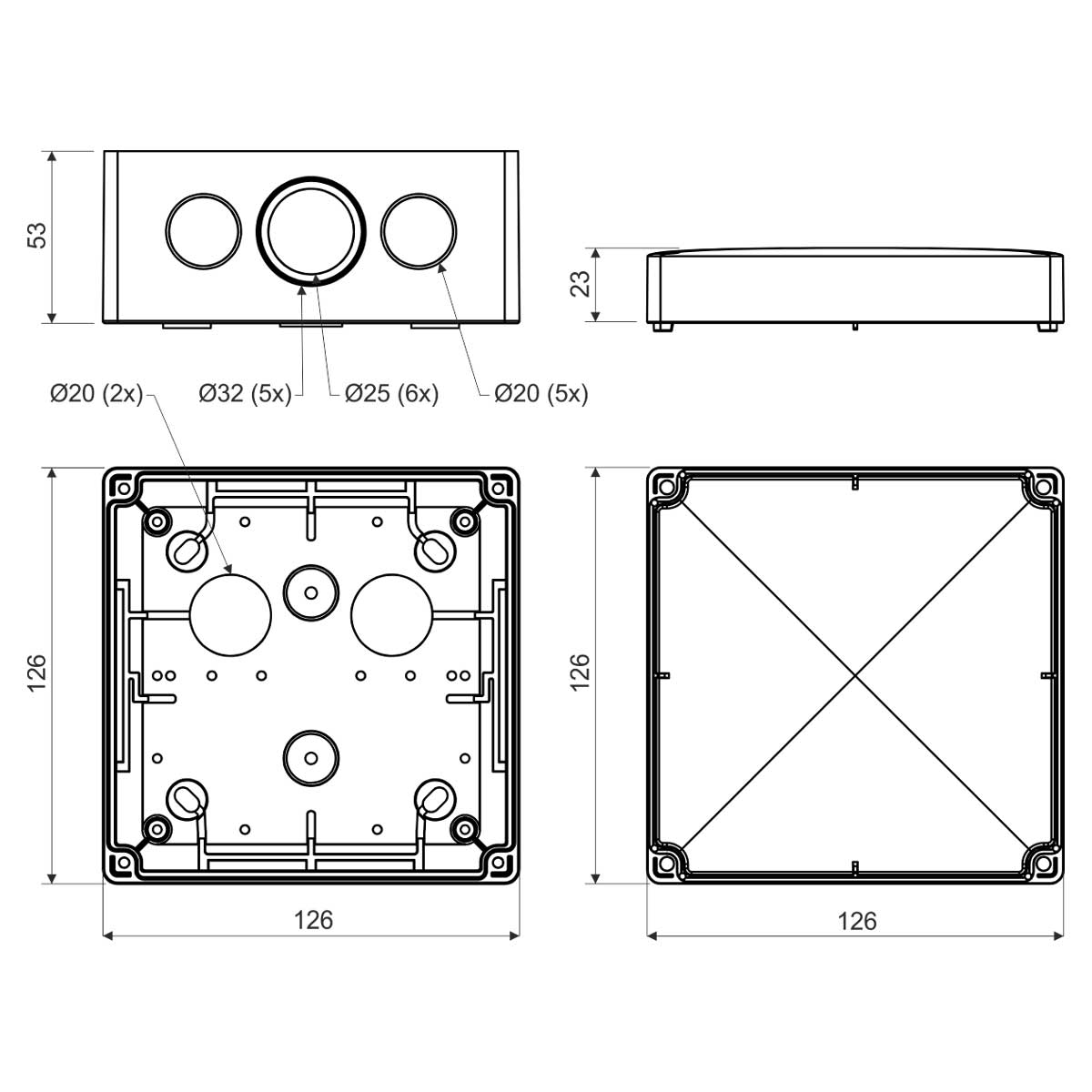

| Ancho | 126 mm |
| Altura | 126 mm |
| Profundidad | 76 mm |
| Clase de reacción al fuego | A1 - F |
| Clase de protección | IP 66 |
| La descripción del embalaje the plug and lid screws inserted in the box, each box packed in shrink foil and labeled | |
Intended for installation in environments that require IP 66 protection. Integrated knockouts for mounting on base. Intended for direct installation on the surface without having to support with insulating pad. Perfect sealing of cables and pipes. The stainless screws for lid installation and caps for the heads of the mounting screws are included in the package. Option to install special terminal plate (S-KSK 2). Integrated O-ring to install cable glands. 7x membrane inputs with ∅20 mm, 6x ∅25 mm and 5x break-out inputs with ∅32 mm. Protected by Utility model trademark.
Alternatively the box is also available as fire resistant box, see the catalogue Systems maintaining functionality during fire.
