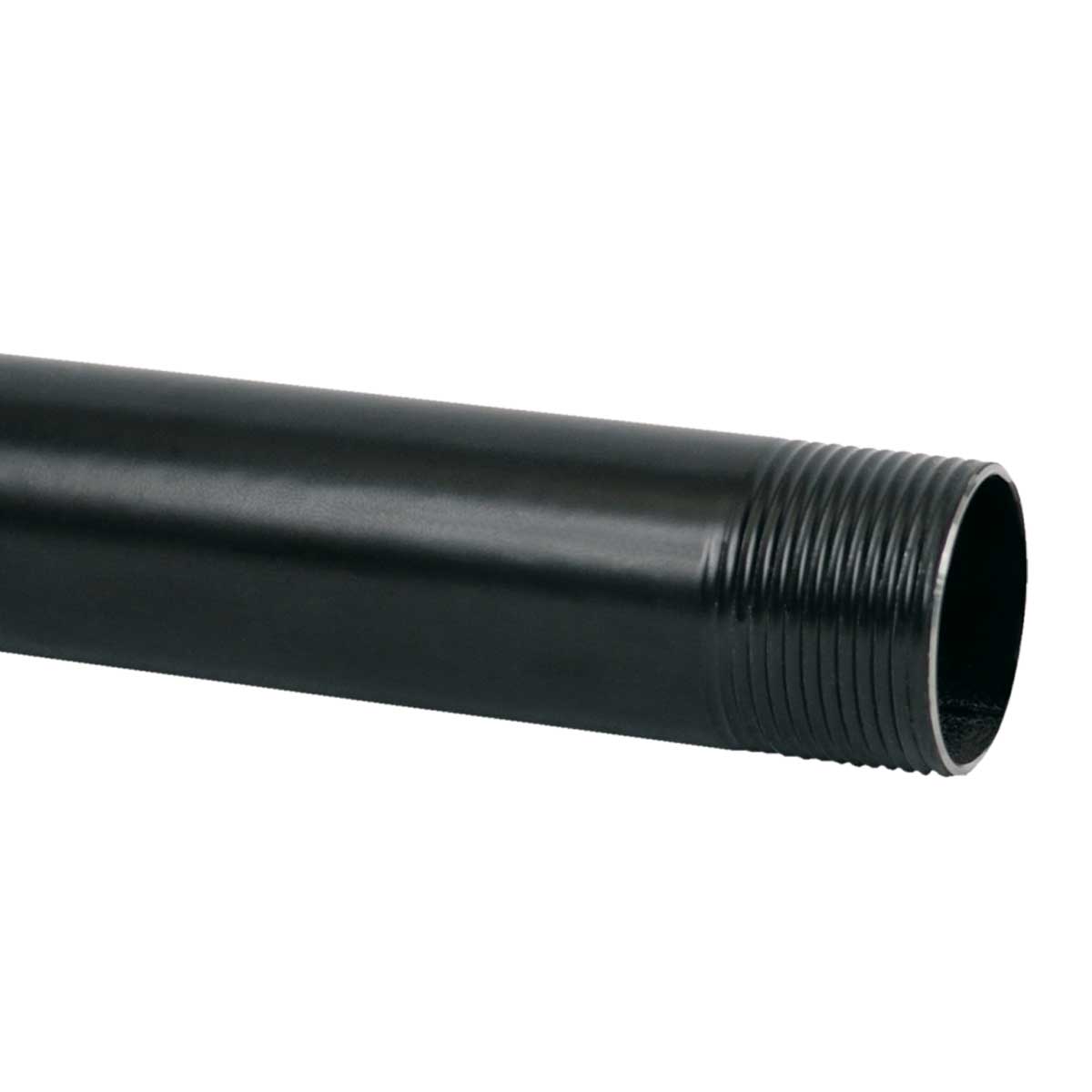

illustrative picture
trubka_ocel_EN_zavit_EN
| Código EAN | 8595568920379 |
| Elcodigo aduanero | 73063041 |
| Peso | 0,9400 kg/m |
| Color | black |
| Material | steel |
| Tratamiento superficial Varnished EOZ: Galvanized steel Sendzimir powder coated, color RAL 9005 black, medium corrosion resistance - Group 2 | |
| Resistencia térmica | -45 - 250 °C |
| Resistencia mecánica | 4000 N/5cm |
| Protección mecánica | IK10 |
| Longitud | 3 m |
| Diámetro exterior | 25 mm |
| Diámetro interior (min.) | 20,6 mm |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Tipo de manguito | M25 x 1,5 |
| Código de clasificación | 55561 |
| Corresponde a las normas | ČSN EN 61386-1 ed.2 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Carga máxima para resistencia al fuego | 10 kg |
The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.
Note for system with maintained functionality in fire:
max. 1 piece of cable in the pipe
You find more information in the catalogue Systems with maintained functionality in fire.
