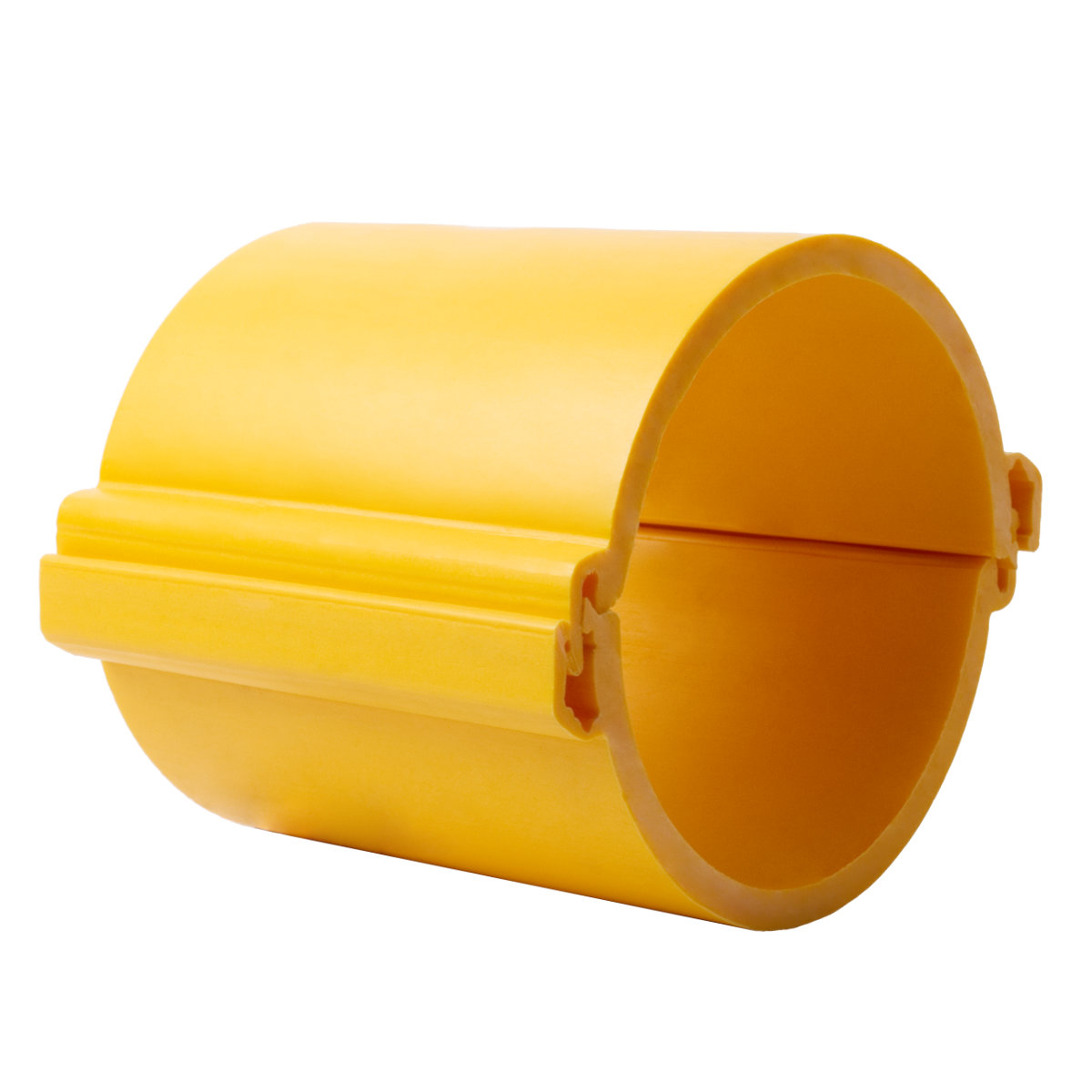

illustrative picture
KOPOHALF_EN
| Código EAN | 8595057695931 |
| Elcodigo aduanero | 39172390 |
| Peso | 4,6000 kg/m |
| Color | yellow |
| Material | HDPE |
| Material libre de halógenos | yes |
| Temperatura de instalación | -25 - 90 °C |
| Temperatura de funcionamiento | -55 - 90 °C |
| Resistencia mecánica | 750 N/20 cm |
| Longitud | 3 m |
| Diámetro exterior | 160 mm |
| Diámetro interior (min.) | 136 mm |
| Comprensión | length ± 10 mm |
| Clase de reacción al fuego | A1 |
| Clase de protección | IP 30 |
| Corresponde a las normas | ČSN EN 61386-24 |
| La descripción del embalaje | in distributed position |
Cable laying and for a laying-out of the energy and communication lines. Another possible application is a protection of already installed underground cables. The protectors consist of two identical parts. When installing, the cables are put in the bottom part and then the top part is snapped to the bottom one. Connecting of protectors is performed by overlapping joined lower parts with an upper part at length of approximately 30 cm. The divided cable ducts are manufactured and tested in accordance with standard ČSN EN 61386-24.
