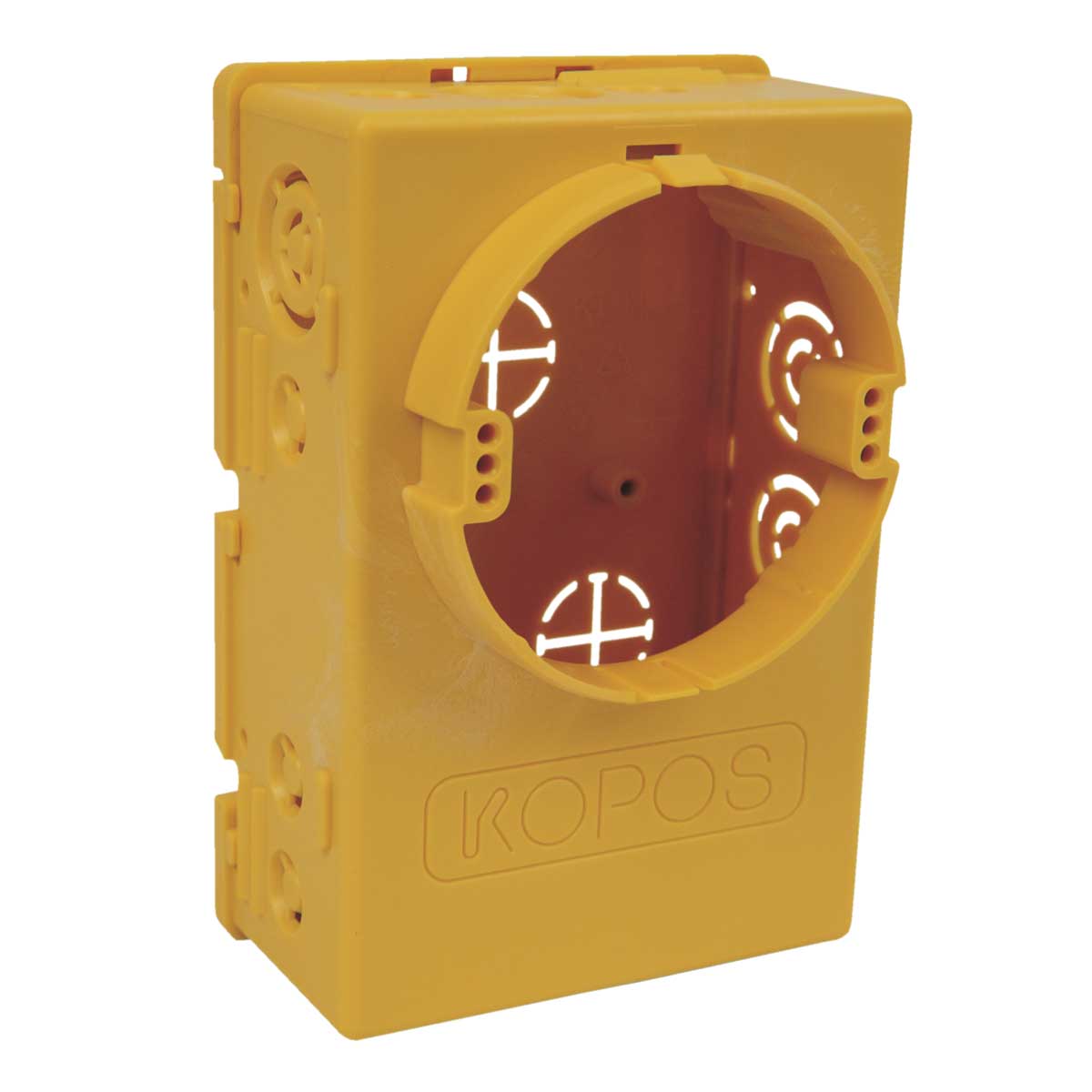

illustrative picture
To download 3D models, please login or create an account and request access.
KUH1L_EN
| Código EAN | 8595057687950 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,1310 kg/pcs |
| Material | PVC |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Voltaje nominal | <= 400 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -5 - 60 °C |
| Ensayo de hilo incandescente | 850 °C |
| Medio | 73 mm |
| Ancho | 90 mm |
| Altura | 132 mm |
| Profundidad | 57 mm |
| Diámetro de orificio fresado (perforado) | 73 mm |
| Recomendaciones del fabricante For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Clase de reacción al fuego | A1 - F |
| Permite el montaje de base de enchufe de dos elementos | yes |
| Clase de protección | IP 30 |
| Corresponde a las normas | ČSN EN 60 670-1 |
| La descripción del embalaje in each box are inserted installation and instrument screws, each box individually wrapped in a shrink wrap and marked with a label | |
Installation on the reverse side of double wall with a thickness of 12.5 mm using the included screws. More space in the box allows the insertion of active elements under the device. Possibility to insert the terminal S-66 directly under the device. Suitable for modern electrical system with higher space requirements. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection.
