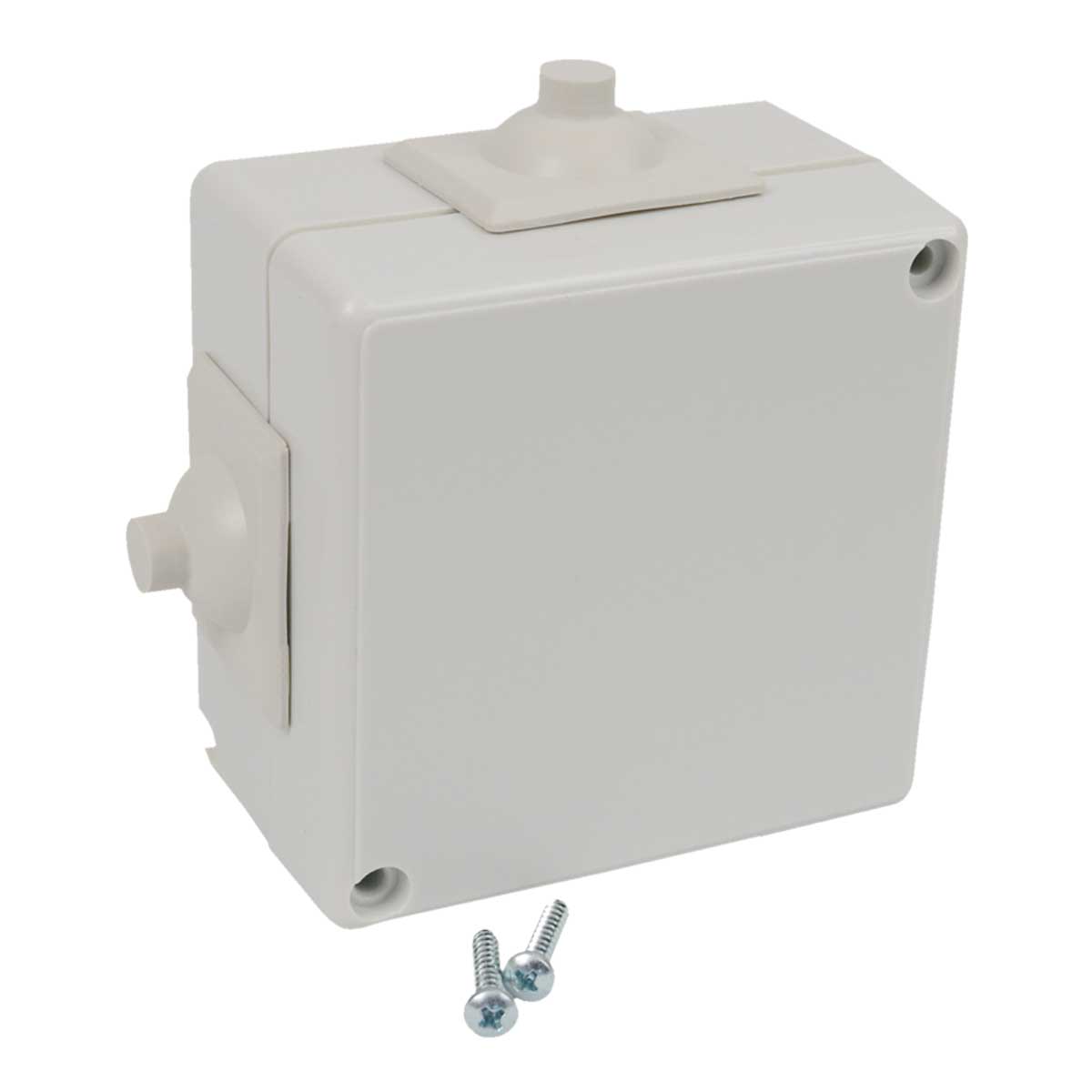

junction box with sealing G-49

Adjuntos y certificaciones

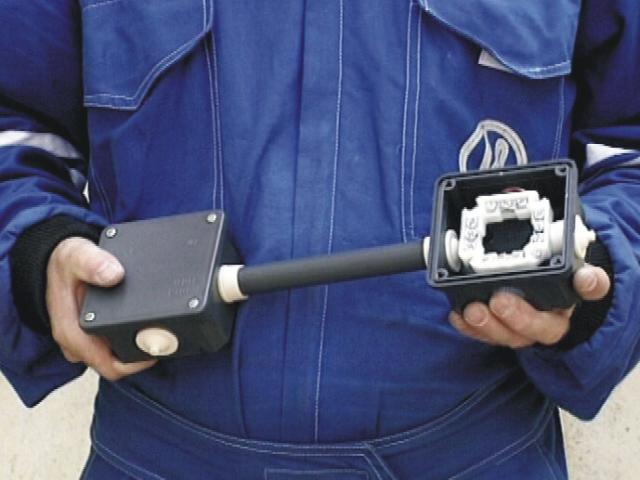

illustrative picture

Hoja de datos
8106_EN

Certificado
Conformity declaration
Certificate ESČ
Declaration RoHS
Declaration REACH

Código EAN	8595057655973
Elcodigo aduanero	39259080
Peso	0,0934 kg/pcs
Color	light grey RAL 7035
Material	PVC
Material sin plomo	yes
Autoextinguible	30 s
Voltaje nominal	<= 400 V
Corriente nominal	<= 16 A
Resistencia térmica	-5 - 60 °C
Ensayo de hilo incandescente	850 °C
Ancho	72 mm
Altura	72 mm
Profundidad	42 mm
Clase de reacción al fuego	A1 - D
Extendida reacción al fuego del material subyacente Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F
Clase de protección	IP 40
Corresponde a las normas	ČSN EN 60 670-1
La descripción del embalaje the grommets and screws for mounting lid inserted in the box, each box is packed in a shrink foil and labeled

For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Universal grommets for cables and pipes, grommets can be ordered separately. To install on materials with fire classes E or F, use thermally insulating pad.
