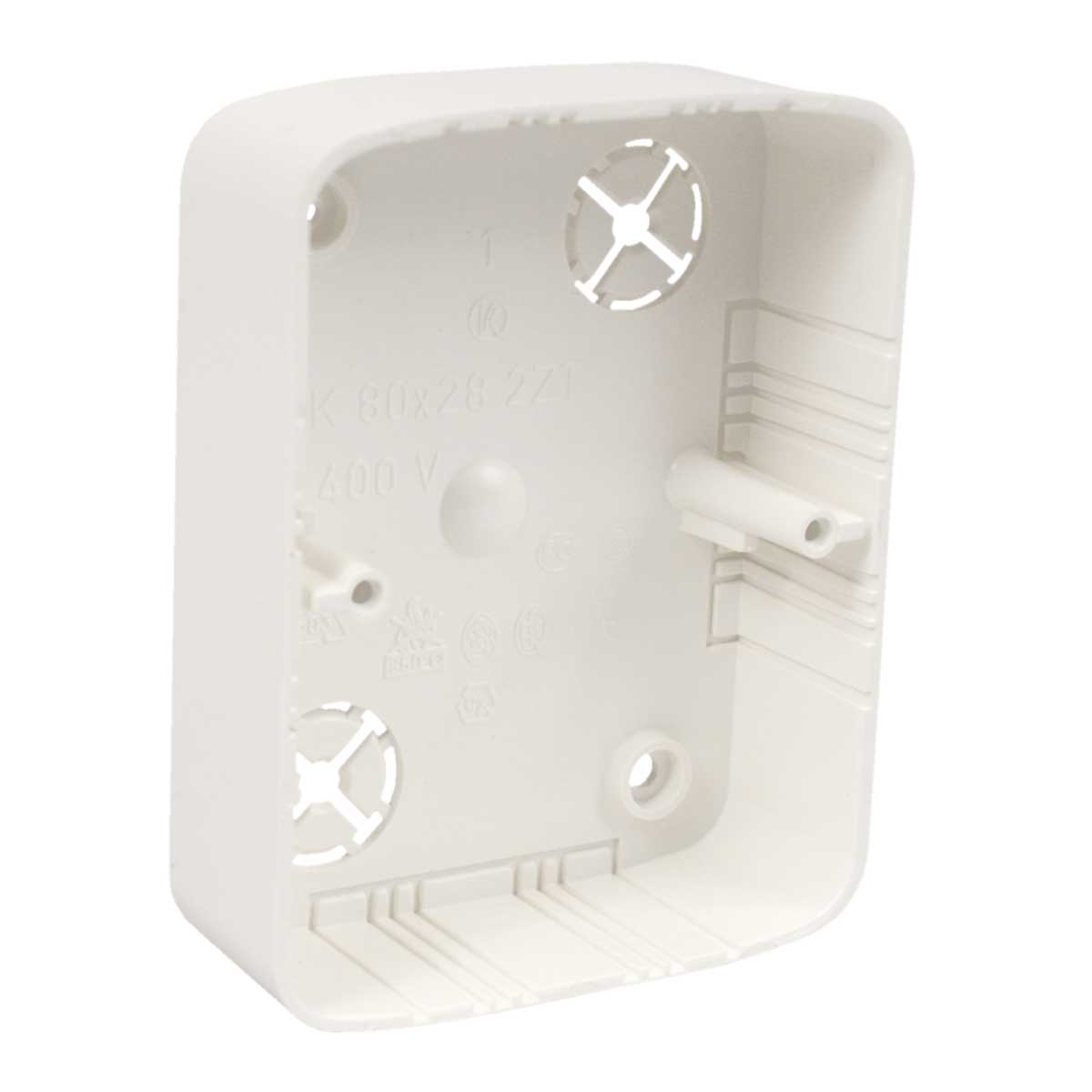

illustrative picture
To download 3D models, please login or create an account and request access.
LK80X28_2ZTHF_EN
| Código EAN | 8595057634145 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,0420 kg/pcs |
| Color | white |
| Material | PC-ABS |
| Material libre de halógenos | yes |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Voltaje nominal | <= 400 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -20 - 80 °C |
| Ensayo de hilo incandescente | 850 °C |

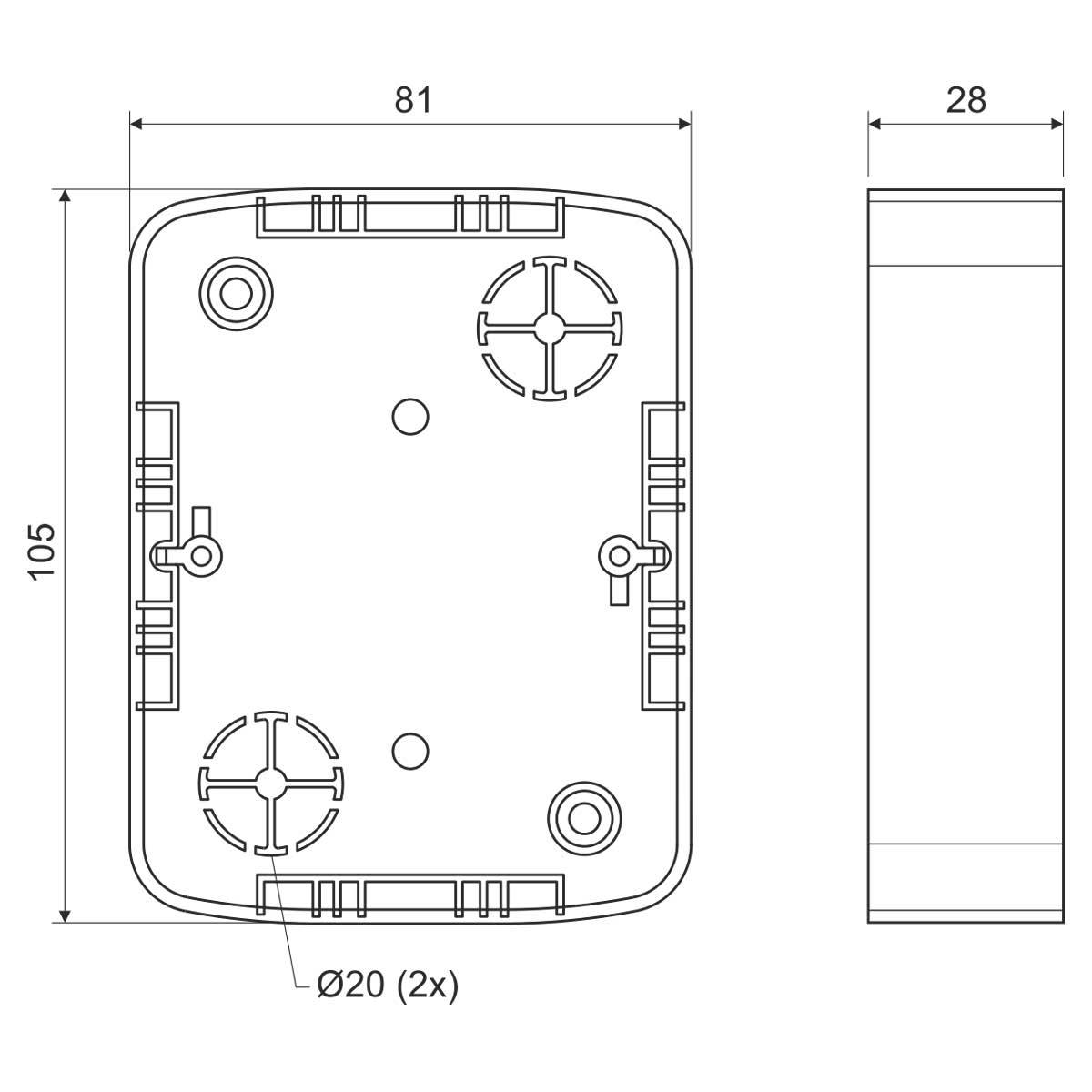

| Ancho | 81 mm |
| Altura | 105 mm |
| Profundidad | 28 mm |
| Clase de reacción al fuego | A1 - D |
| Extendida reacción al fuego del material subyacente Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Permite el montaje de base de enchufe de dos elementos | yes |
| Corresponde a las normas | ČSN EN 60 670-1 |
For premises with increased need for protection of persons and property. Intended for double-sockets of Tango series - ABB with high assembling depth. To install on materials with fire classes E or F, use insulating pad.
