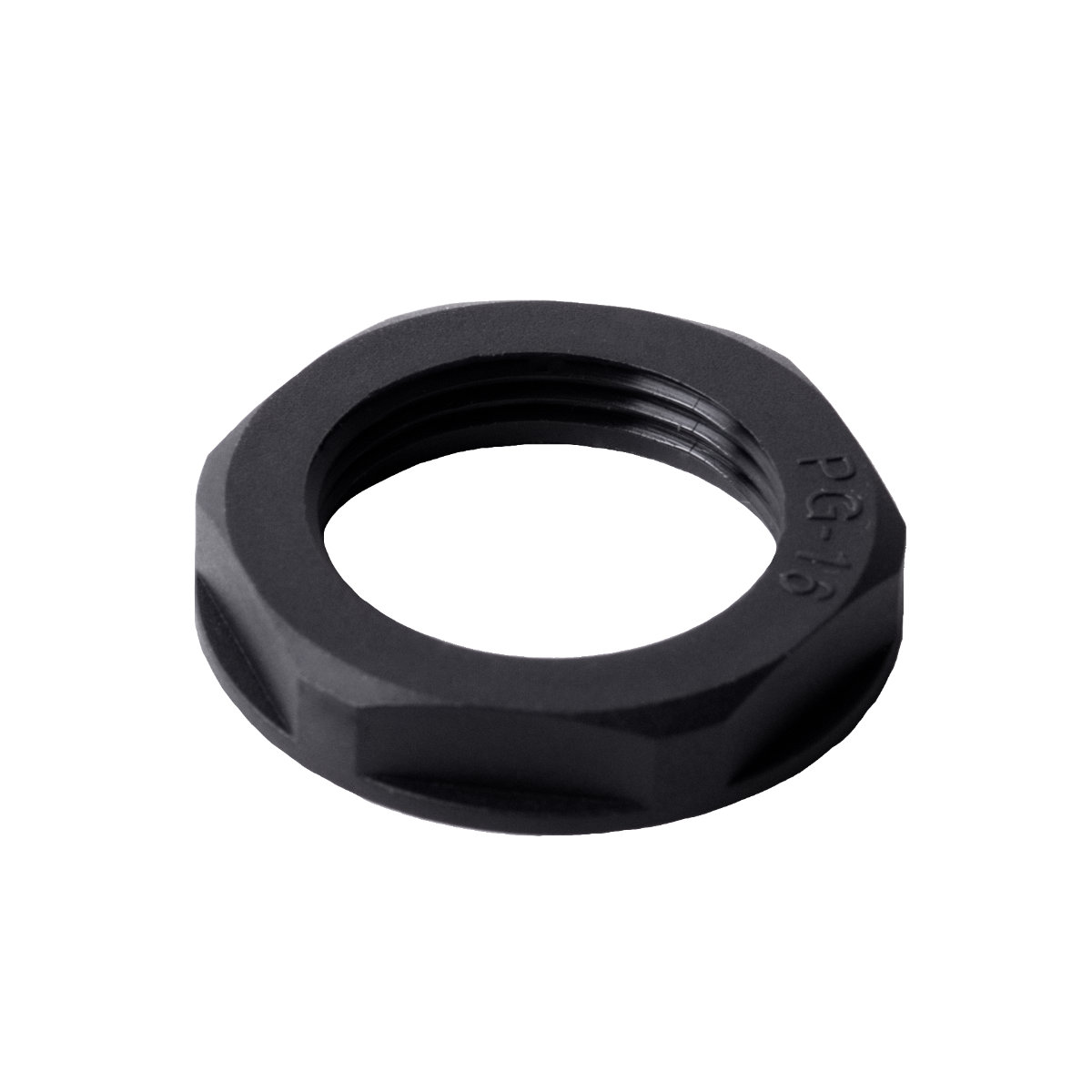

Adaptalok matice

Adjuntos y certificaciones

illustrative picture

Hoja de datos
adaptalok_EN

Certificado
Declaration RoHS
Declaration REACH

Código EAN	8595057625679
Elcodigo aduanero	39174000
Peso	0,0070 kg/pcs
Color	black
Material	PA
Material libre de halógenos	yes
Estable a los rayos UV/Material estable a los rayos UV	yes
Autoextinguible	30 s
Resistencia térmica	stable mounting: -50 to + 120 ° C; flexible mounting: -45 to +120 ° C
Diámetro exterior de los tubos	54 mm
Nota Combination of accessories and pipes is always controlled by outside diameter of the pipe used.
Áreas con el peligro de explosión Can be installed in a zone with the danger of explosion of flammable gases and vapors of zone 2 and into the zone of danger of explosion of flammable dusts of zone 22.
Clase de protección	IP 66
Corresponde a las normas	ČSN EN 61386-24

Adaptalok is a system of utilities allowing to terminate and fix the pipe. Utilities allow 45° and 90° tapping and direct threaded termination - M16 - M50 or PG13,5 - PG48. pipe termination is available as for flange as well. Installation and removal is easy and quick.
