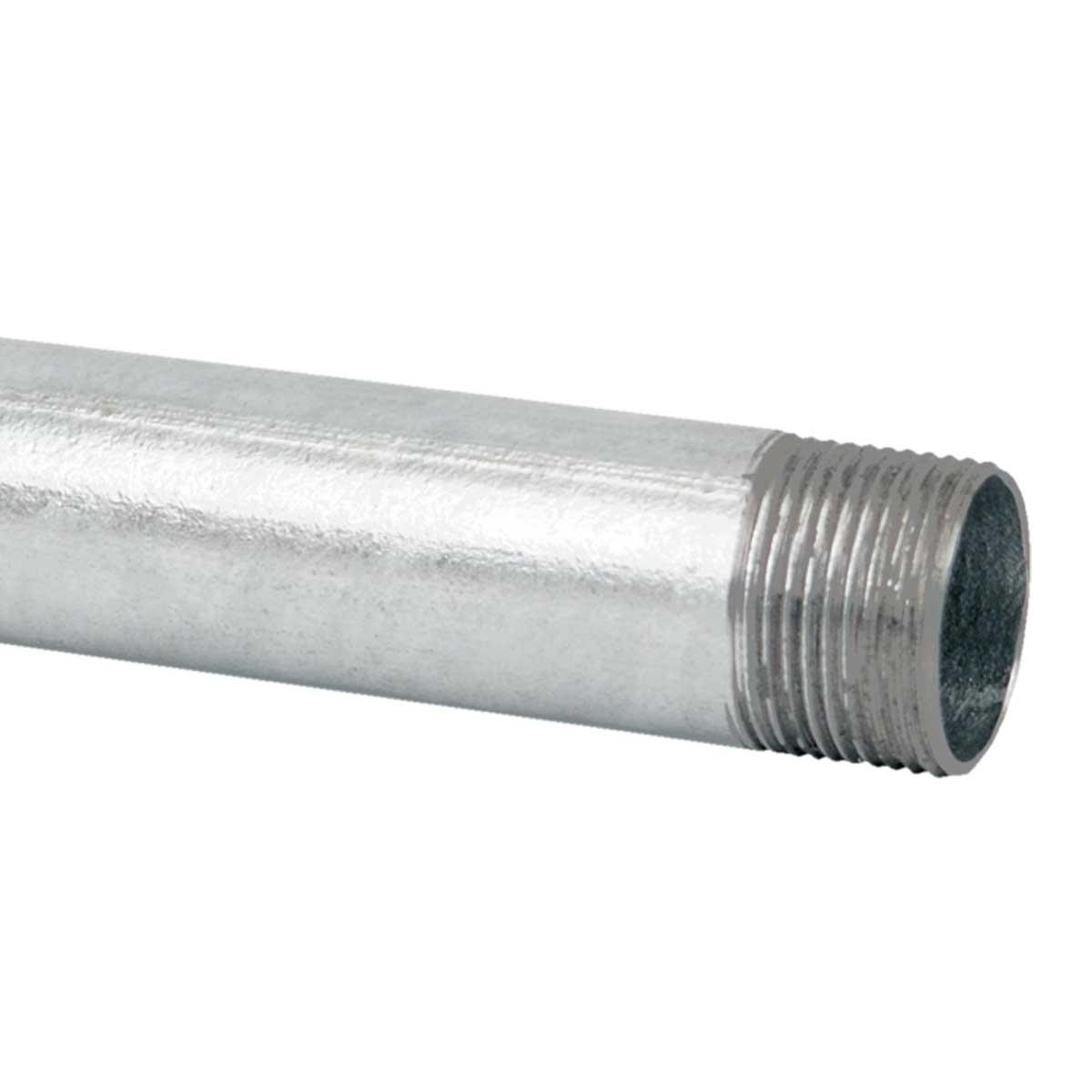

illustrative picture
trubka_ocel_CSN_zavit_EN
| Código EAN | 8595057607507 |
| Elcodigo aduanero | 73063041 |
| Peso | 0,6500 kg/m |
| Material | steel |
| Tratamiento superficial Unvarnished: without surface finsh, without corrosion resistant, mainly for structural purposes | |
| Resistencia térmica | -60 - 250 °C |
| Resistencia mecánica | 1250 N/5cm |
| Protección mecánica | IK10 |
| Longitud | 3 m |
| Diámetro exterior | 22,5 mm |
| Diámetro interior (min.) | 20,3 mm |
| Funcionalidad en fuego | E 90 |
| Tipo de manguito | P16 |
| Código de clasificación | 44561 |
| Corresponde a las normas | ČSN EN 61386-1 ed.2 |
The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.
