INOXDS_EN
| Código EAN | 8595568940735 |
| Elcodigo aduanero | 83024190 |
| Peso | 0,1950 kg/pcs |
| Tratamiento superficial | Stainless steel AISI 304 |
| Corresponde a las normas | ČSN EN 61537 |
| Carga máxima | 150 kg |
| Dimensión A | 170 mm |
| Dimensión B | 60 mm |
| Para la anchura de la bandeja | 150 mm |

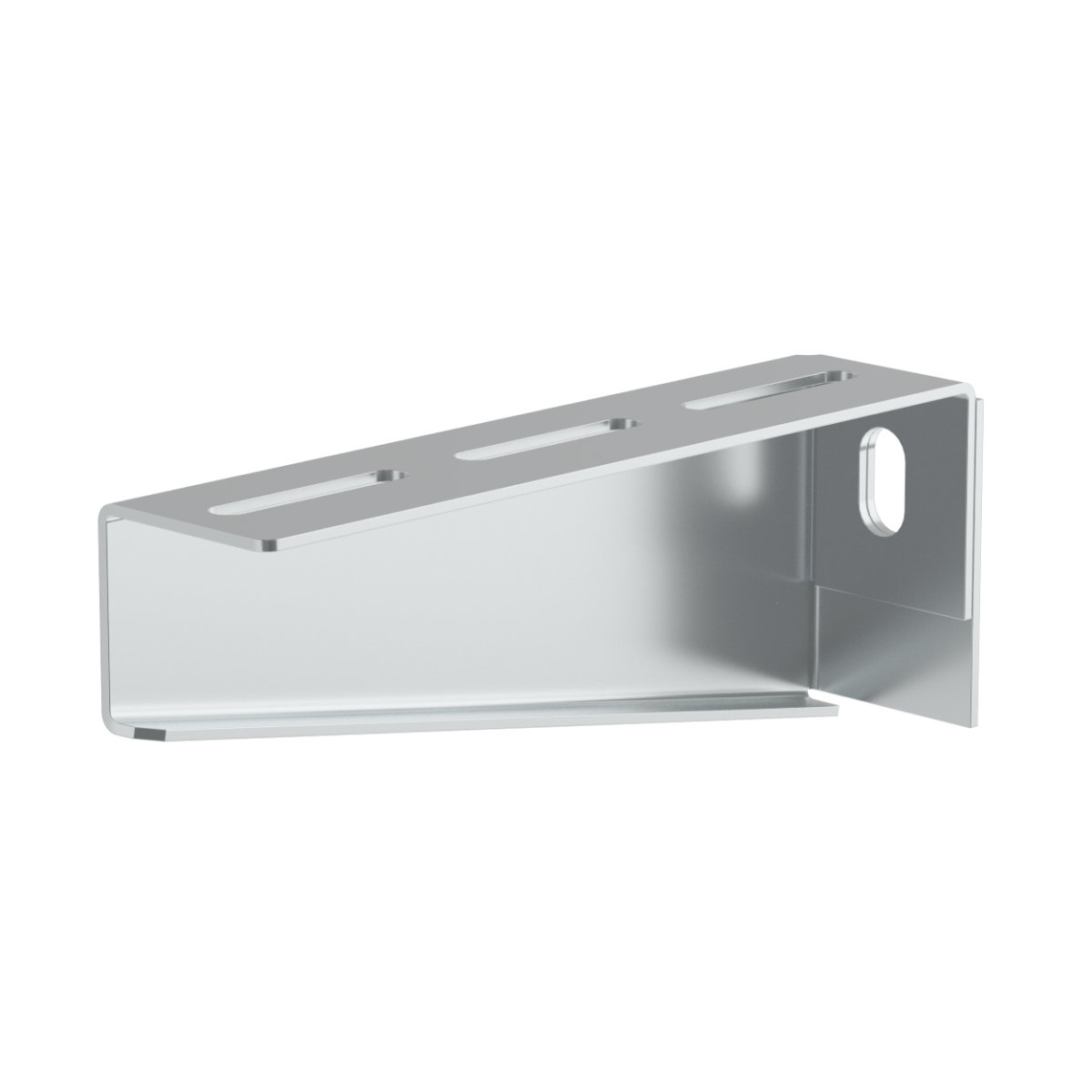

The bracket is used as an element to create a supporting structure for a cable tray. It is designated for installation on the wall or mounting profile. Attached to the wall using 2 pcs Ø 8 mm anchors. NIXSM 6X10 bolts are used to attach the cable tray to the bracket. To protect the cables, the bolt head is inside the cable tray.
