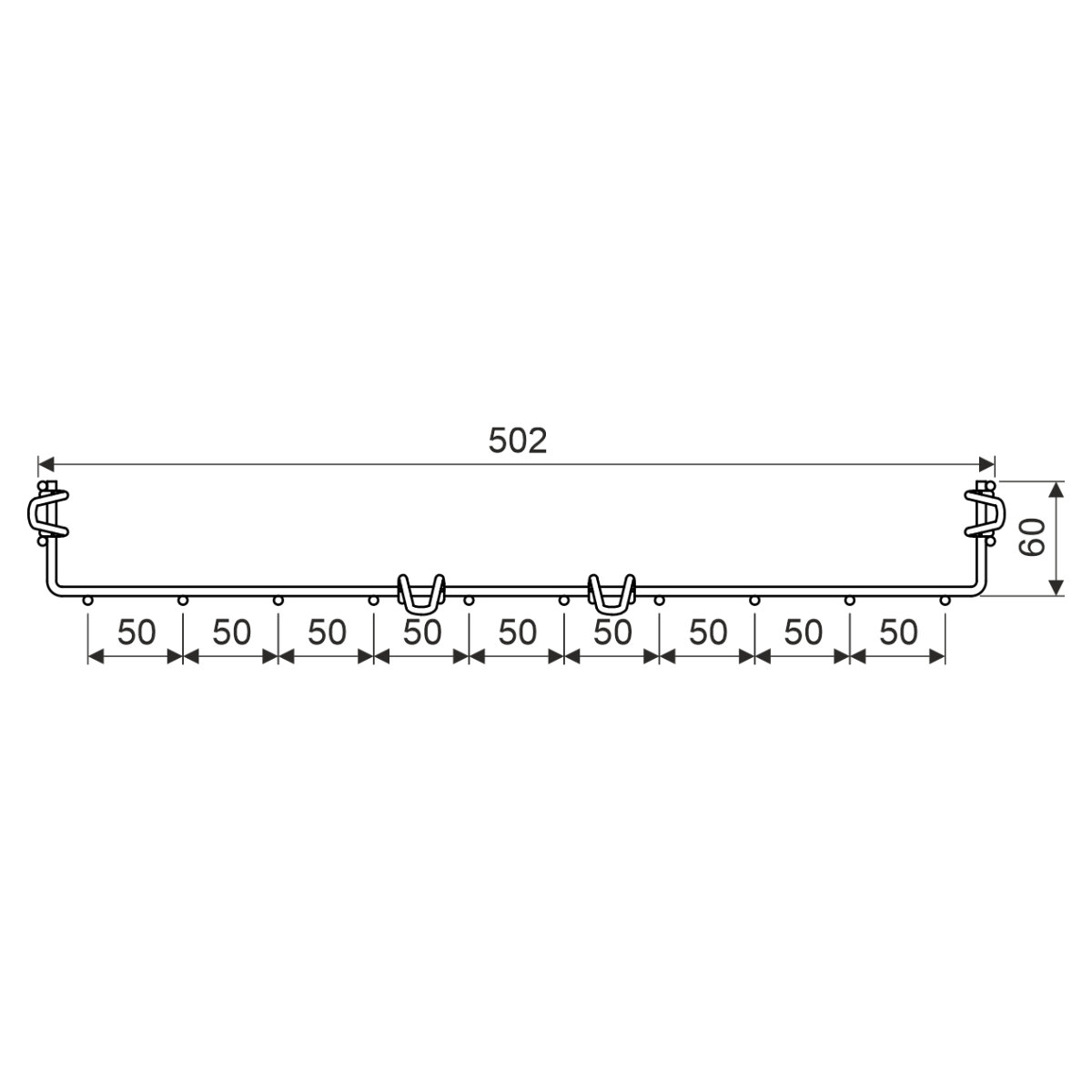

illustrative picture
DZI_V_EN
| Código EAN | 8595568939982 |
| Elcodigo aduanero | 73262000 |
| Peso | 2,7100 kg/m |
| Tratamiento superficial | Electrolytic Galvanized |
| Ancho | 500 mm |
| Altura | 60 mm |
| Longitud | 3000 mm |
| Corresponde a las normas | ČSN EN 61537 |
| Diámetro del alambre | 4,6 - 4,8 mm |
| Reja inferior | 50x100 |
| Parte de conexión en la parte inferior de las bandejas de cables | 2 |
Each wire tray has integrated connectors at one end designed to firmly connect the route. In this way the conductive connection is fulfilled.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
