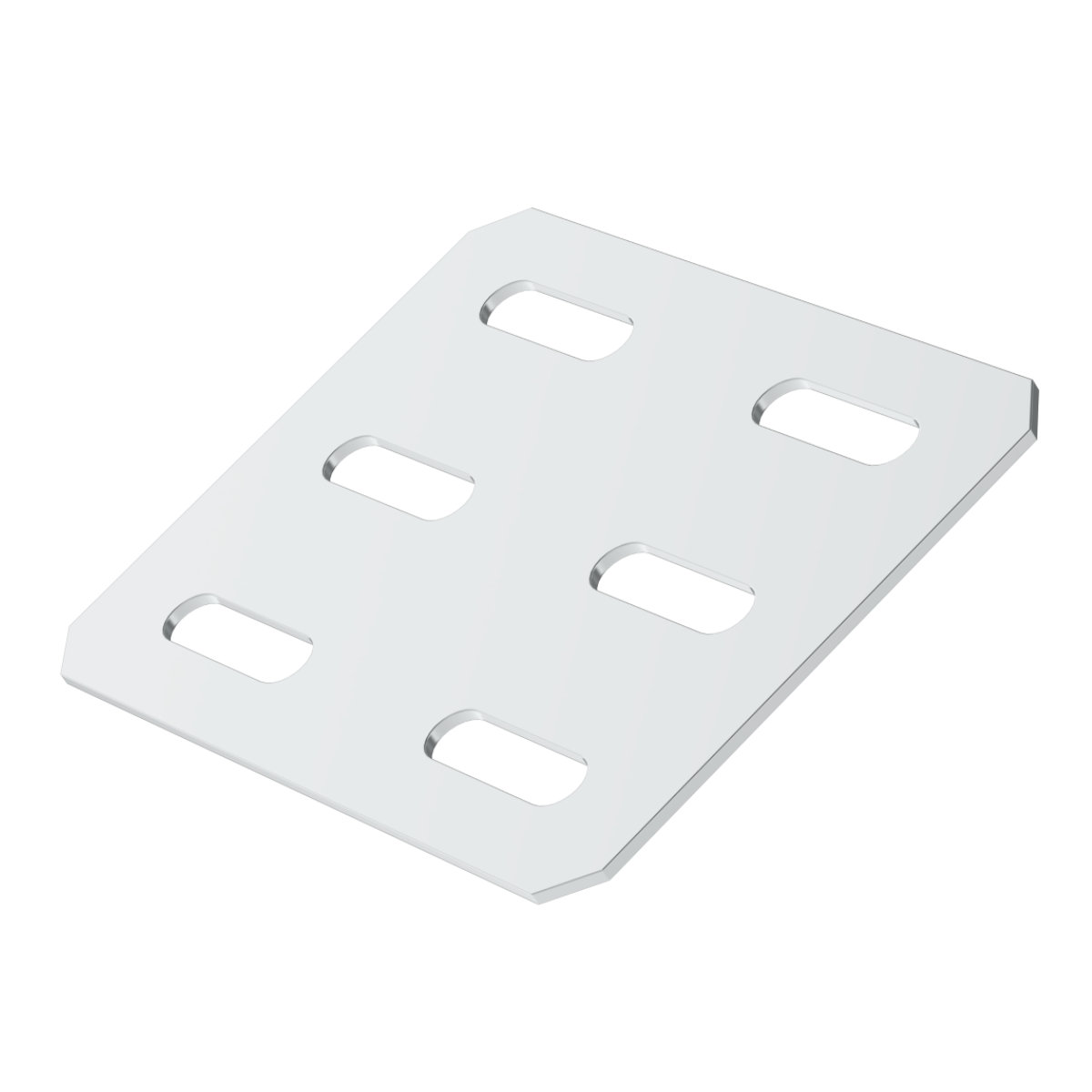

illustrative picture
To download 3D models, please login or create an account and request access.
DV_EN
| Código EAN | 8595568939418 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,0786 kg/pcs |
| Tratamiento superficial | Magnelis® |
| Resistencia térmica | -50 - 150 °C |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 1,5 mm |
| Cantidad de tornillos para la conexión | 4 |
| Dimensión H | 75 mm |
| Para la anchura de la bandeja | 100 mm |
Is used for reinforcing the tray connections without integrated coupling. It is fastened by the bolts NSM 6X10 to the tray bottom.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
