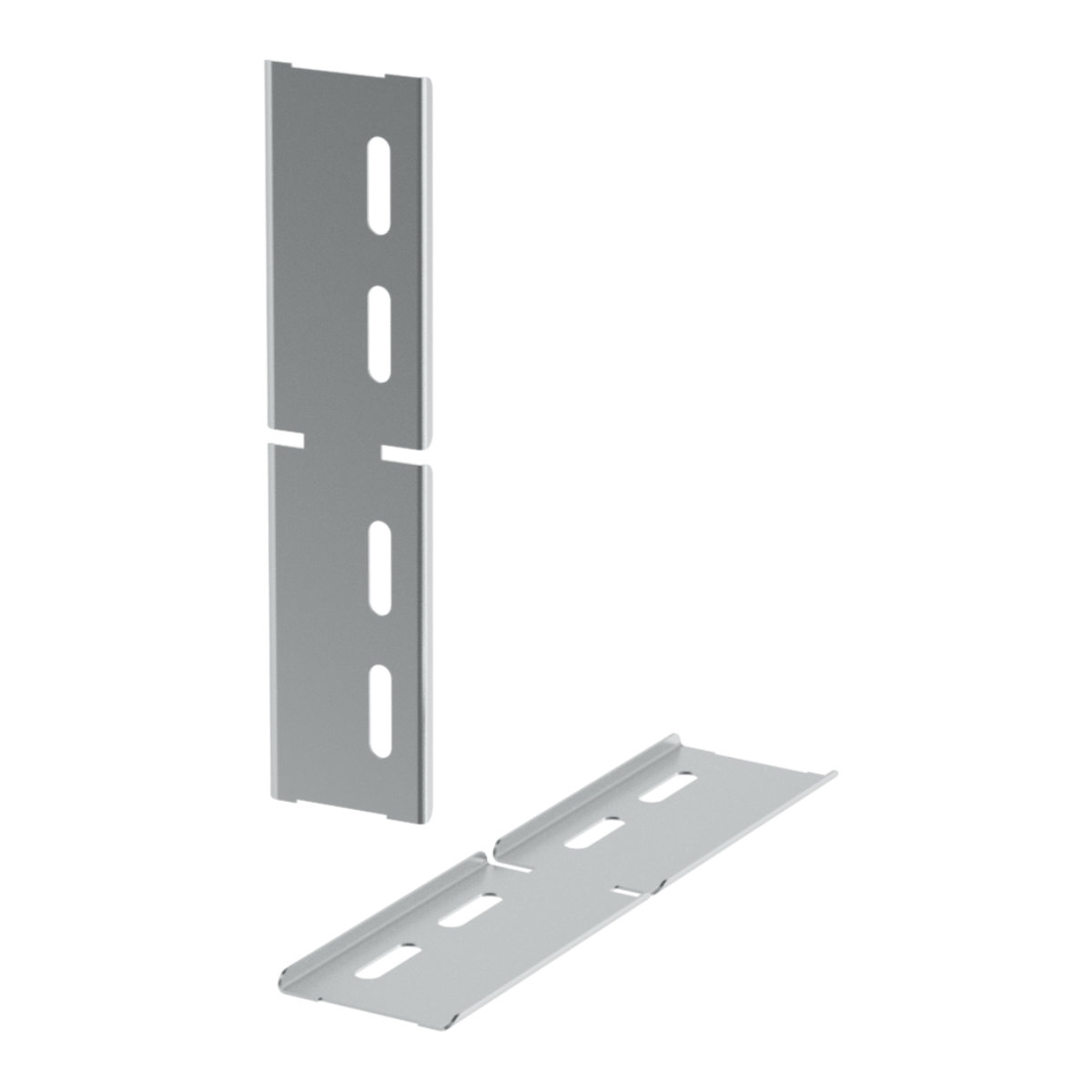

illustrative picture
To download 3D models, please login or create an account and request access.
NSUK_EN
| Código EAN | 8595568939289 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,0686 kg/pcs |
| Tratamiento superficial | Magnelis® |
| Resistencia térmica | -50 - 150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 1 mm |
| Cantidad de tornillos para la conexión | 4 |
| Dimensión H | 47 mm |
| Para la anchura de la bandeja | 62 - 250 mm |
| Para la altura de la bandeja | 50 mm |
The joining is performed using the bolts NSM 6X10. Angle couplings are mostly used at places where the route is slightly bended, for large bending radiuses or for the circumvention of columns and pillars.
