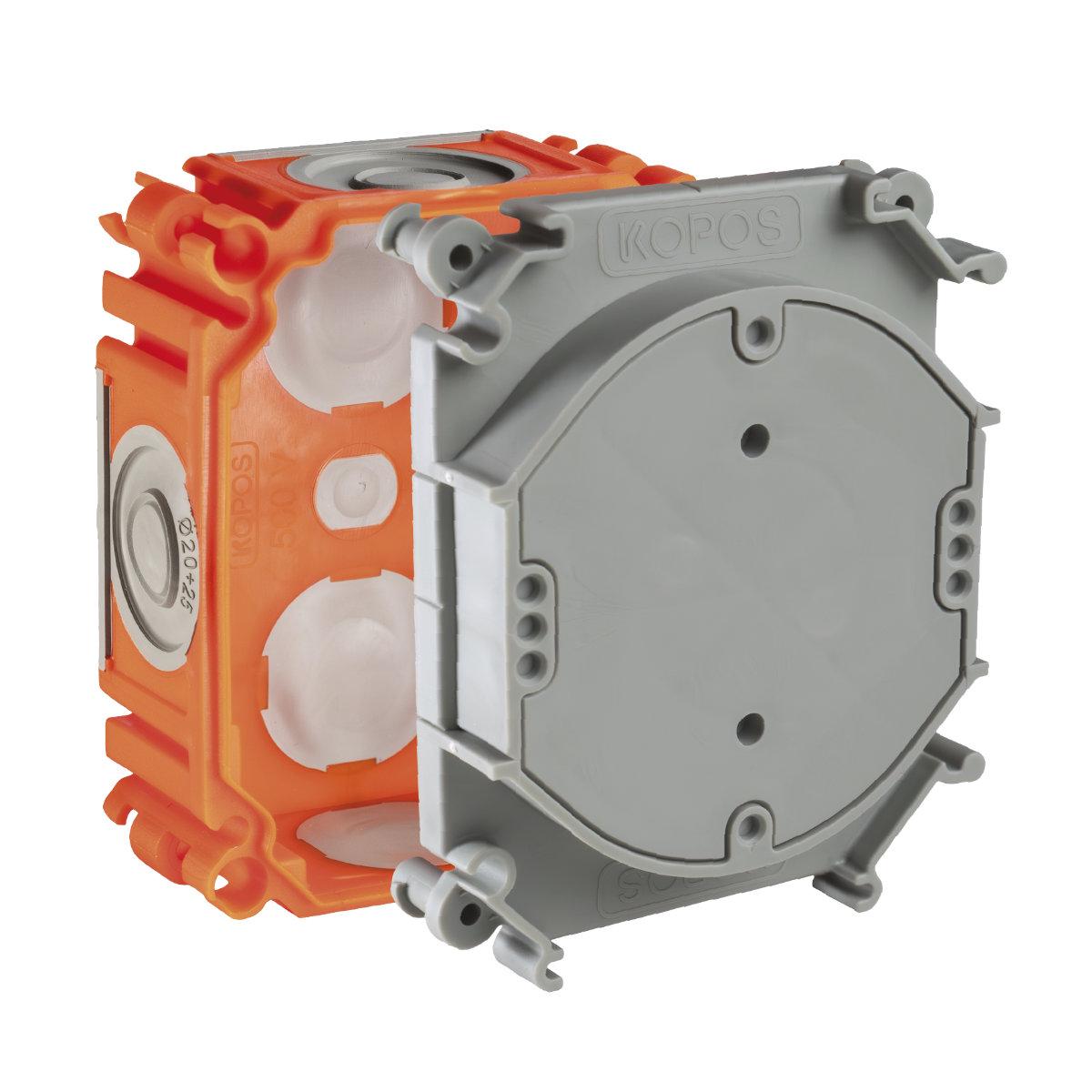

illustrative picture
To download 3D models, please login or create an account and request access.
SBKP_6850L_EN
| Código EAN | 8595568938664 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,0437 kg/pcs |
| Color | orange + gray |
| Material | PP |
| Material libre de halógenos | yes |
| Material sin plomo | yes |
| Voltaje nominal | 500 V |
| Resistencia térmica | -25 - 60 °C |
| Resistencia instantánea a la temperatura | 90 °C |
| Ensayo de hilo incandescente | 650 °C |

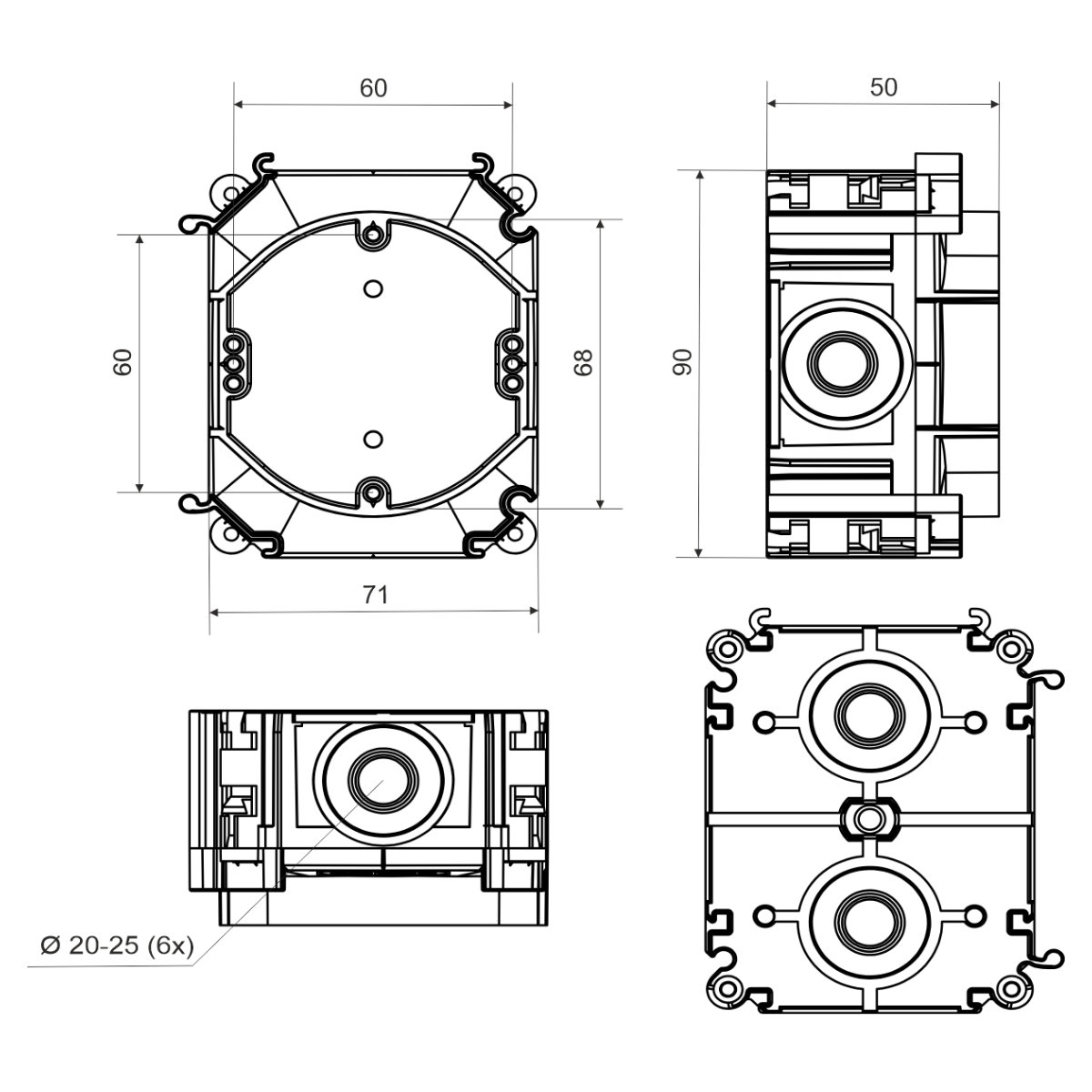

| Medio | 68 mm |
| Ancho | 71 mm |
| Altura | 90 mm |
| Profundidad | 50 mm |
| Clase de reacción al fuego | A1 |
| Distancia al unir dos cajas | 71/90 mm |
| La descripción del embalaje | box with shrink wrap lid |
Instrument box for cast concrete - installation depth 50 mm. The lid of the box is adapted for nailing or screwing with screws to wooden formwork. The possibility to fix the lid of the box using glue from a hot melt gun. Sealed connection of the lid with the box. Pipe inlets fitted with a sealing membrane to prevent the concrete penetration. The possibility of fixed connection of boxes with a pitch of 71 mm and 90 mm. The possibility of fixing the box to the reinforcement (metal armature) ) using SB-MK 1 mounting wings (not included in the delivery). The possibility of using a box for double-sided assembly - mutual fixation using steel rods 6 mm KBP-8 (not included in the package).
