SK_EN
| Código EAN | 8595568938060 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,0958 kg/pcs |
| Tratamiento superficial | Magnelis® |
| Resistencia térmica | -50 - 150 °C |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 0,75 mm |
| Cantidad de tornillos para la conexión | 4 |
| Dimensión H | 53 mm |
| Para la altura de la bandeja | 60 mm |

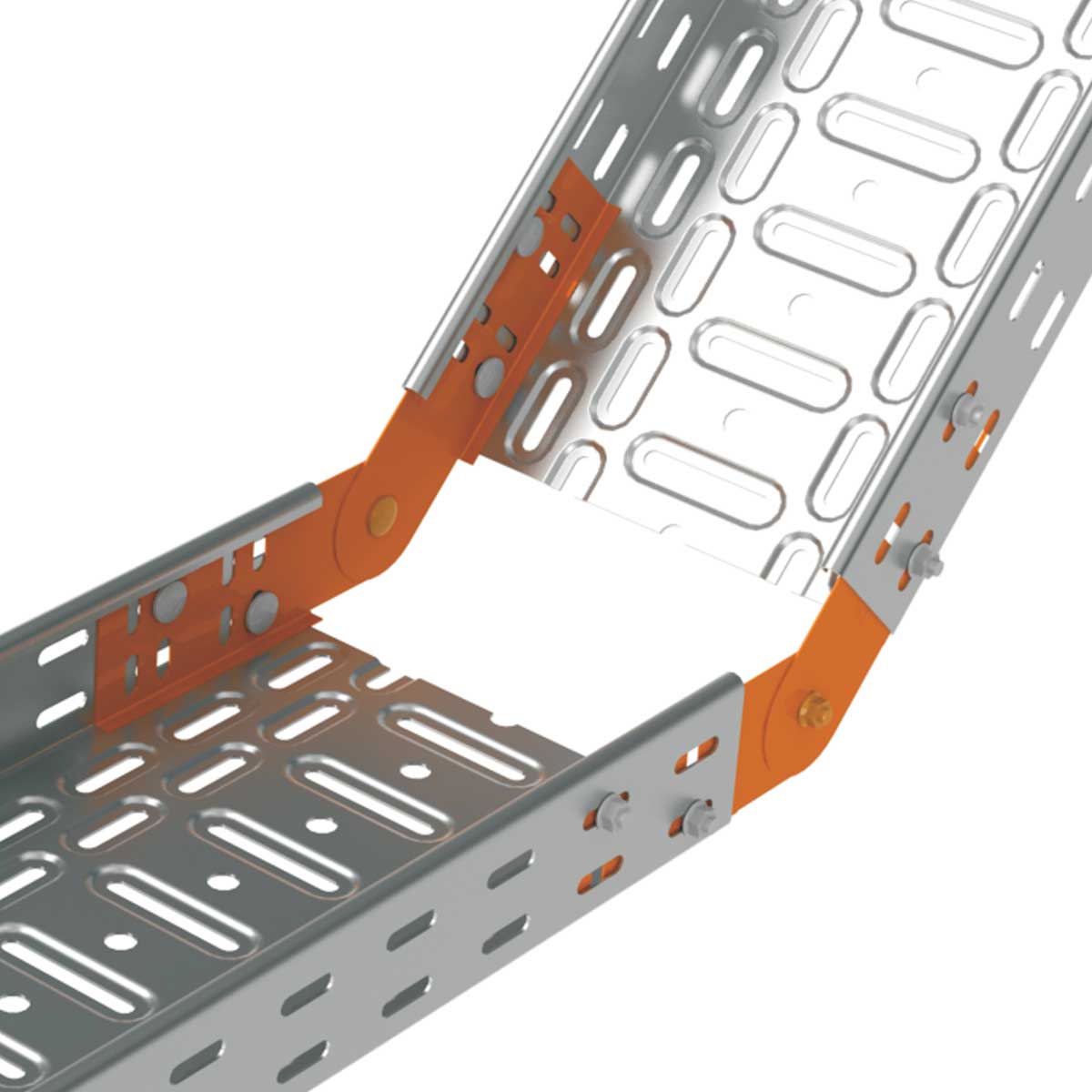

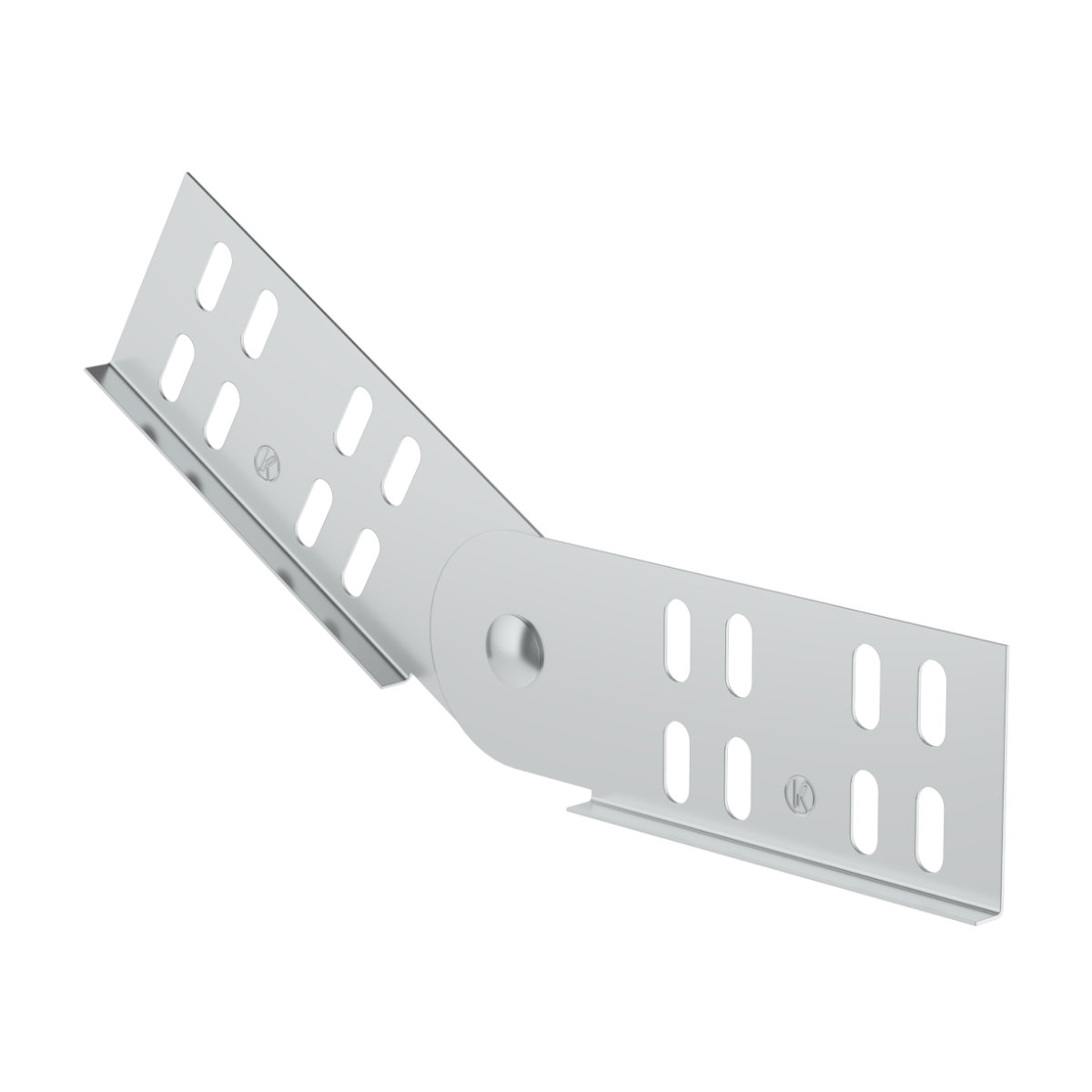

For the connection of the hinged joint to the tray there are used the bolts NSM 6X10. The joint is delivered in 1 piece per packing, 2 pcs are needed to make a bend of the line.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
