Mounting profile head

Adjuntos y certificaciones

illustrative picture

Hoja de datos
HMP41_EN

Certificado
Declaration RoHS
Declaration REACH
Certificate ESČ
Conformity declaration

Código EAN	8595568932549
Elcodigo aduanero	73269098
Peso	1,0000 kg/pcs
Tratamiento superficial	Hot Dip Galvanized
Espesor de la chapa metálica	5 mm
Dimensión A	120 mm

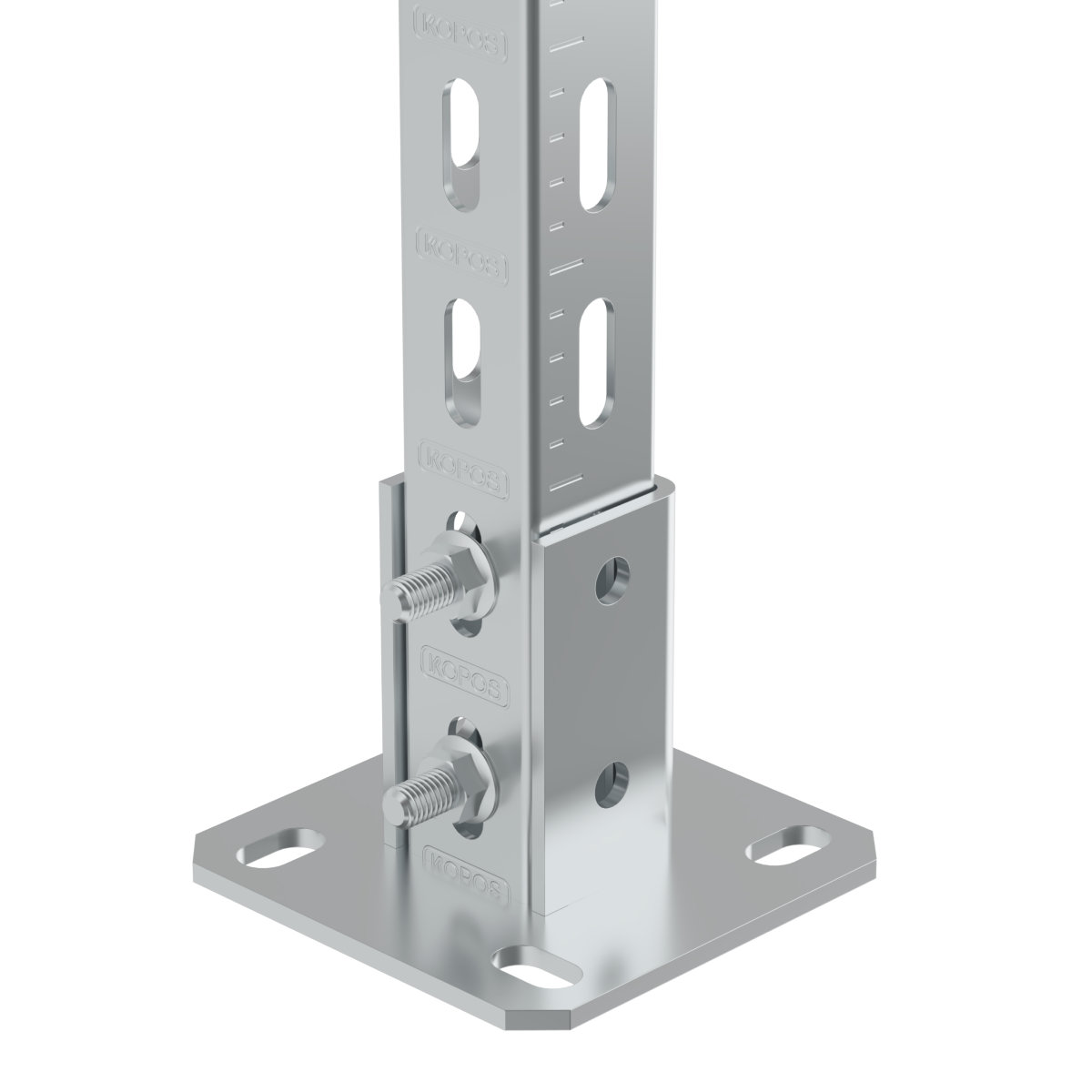

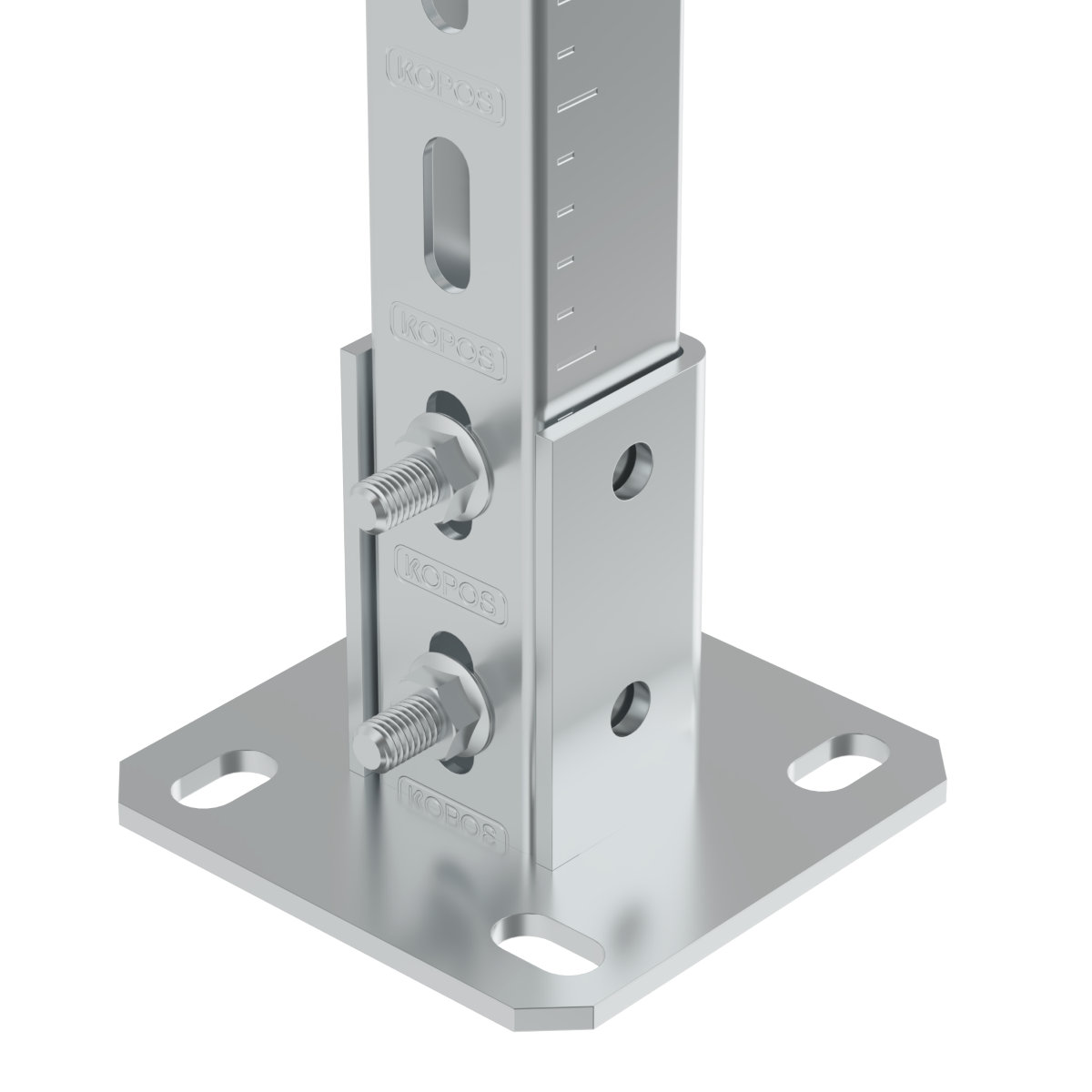

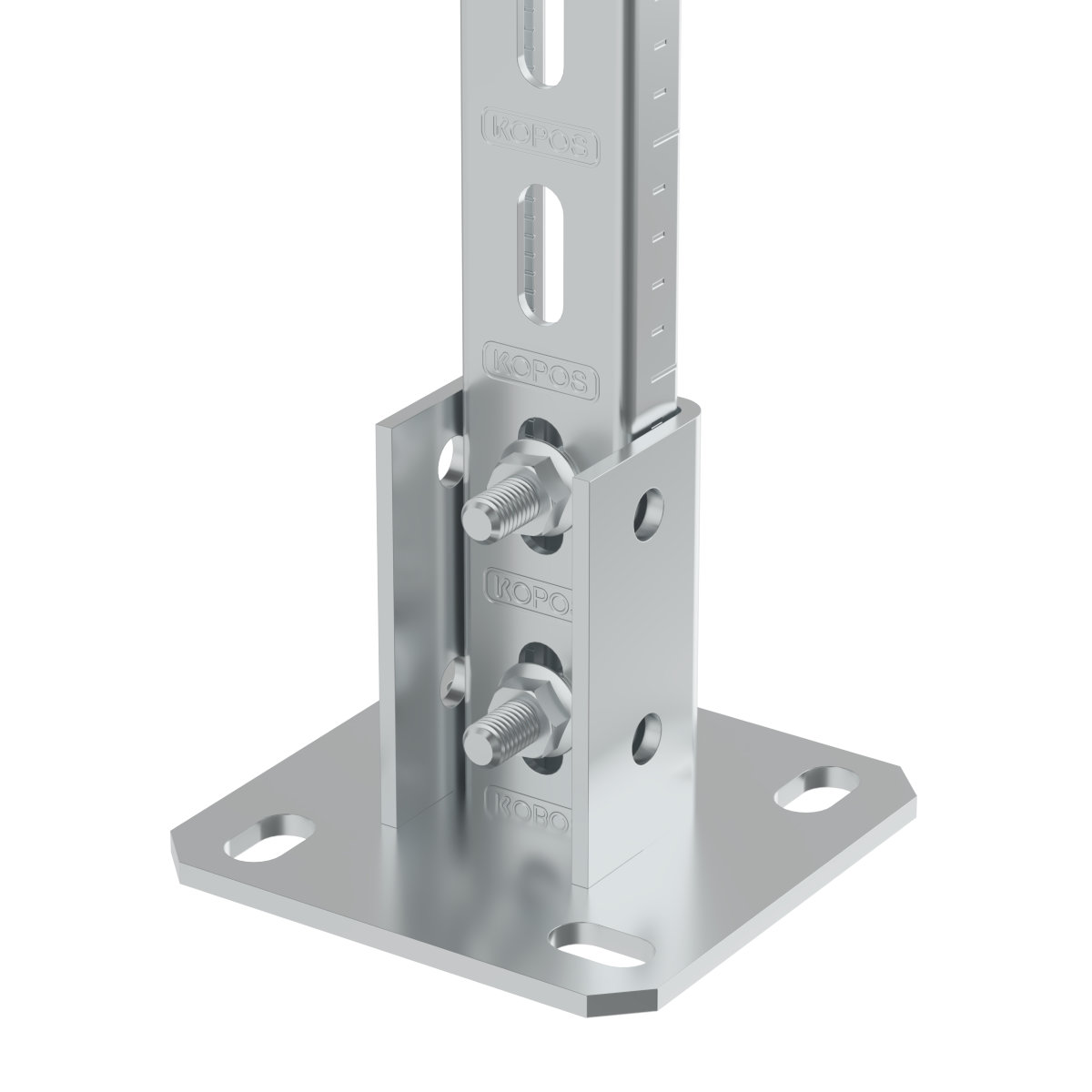

HMP 41_F head is designed for fixing of MP 41X41 or MP 41X21 mounting profiles to the ﬂoor or ceiling. The mounting profile MP 41X41 is fixed to the head with two S 10X70 screws, M 10 nuts and PD 10 washers. The mounting profile MP 41X21 is fixed to the head with two S 10X50 screws, M 10 nuts and PD 10 washers. By combining the head and the mounting profile, it is possible to create the ceiling profile (holder) of any length.
