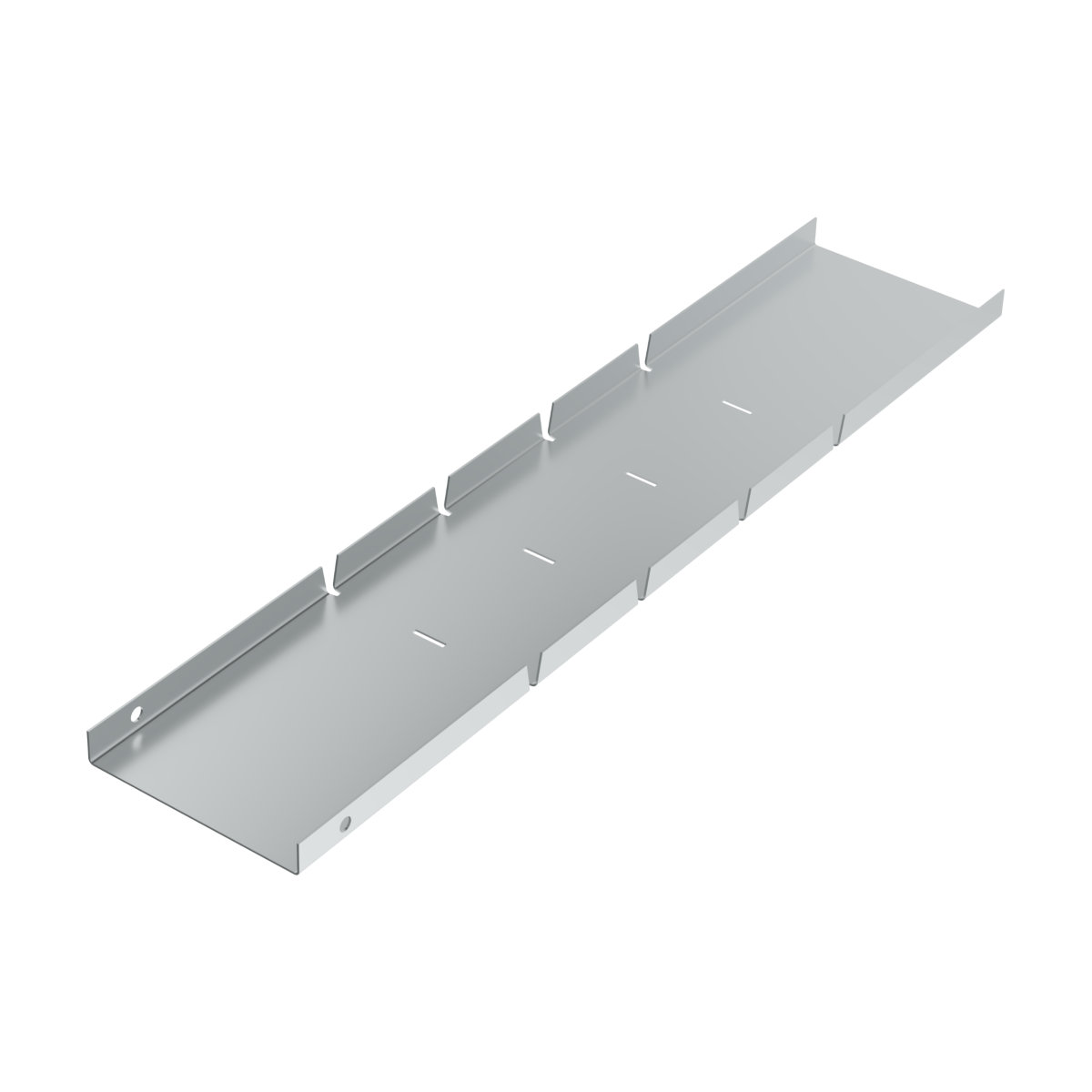

illustrative picture
To download 3D models, please login or create an account and request access.
NVKO_M3_EN
| Código EAN | 8595057669796 |
| Elcodigo aduanero | 73089059 |
| Peso | 0,2000 kg/unidad |
| Tratamiento superficial | Hot Dip Galvanized |
| Resistencia térmica | -50 - +150 °C |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 0,6 mm |
| Dimensión A | 66 mm |
| Dimensión B | 400 mm |
| Dimensión H | 12 mm |
| Para la anchura de la bandeja | 62 mm |
| Para la altura de la bandeja | 50 mm |
To fix the cover use 4 pcs of cover fixutres VU. The covers are delivered straight. They are made from one piece of sheet metal with pre-cut side walls for later bending during assembly.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
